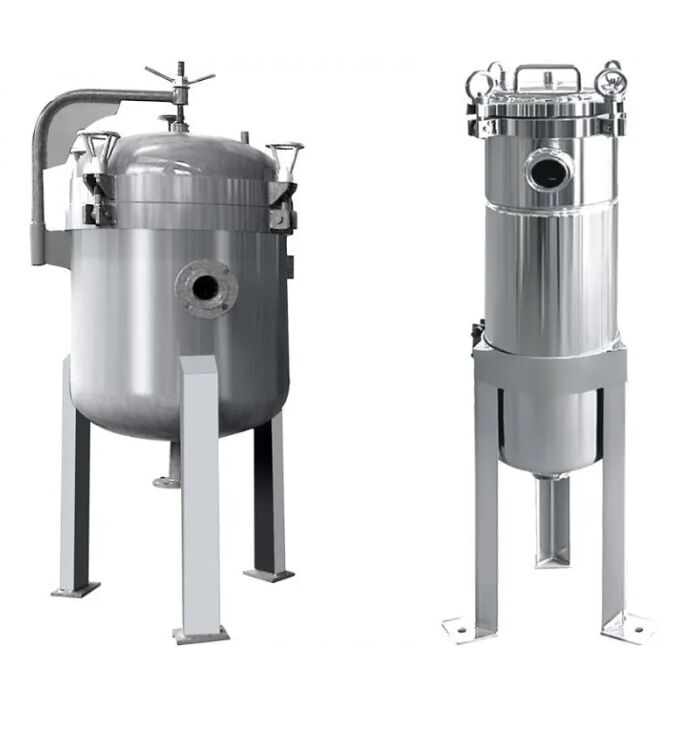

Solid Liquid Vertical Pressure Leaf Filter 0.4MPA Industrial Filtration Leaf Separator Filter

Product Details

Place of Origin: CHINA

Brand Name: HUADING

Certification: CE ISO

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD20,000-USD200,000 per set

Packaging Details: fumigation wooden case

Delivery Time: 60 working days

Payment Terms: T/T,L/C,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Solid Liquid Vertical Pressure Leaf Filter, Vertical Pressure Leaf Filter 0.4MPA, Industrial Filtration leaf separator filter


Capacity:	1-80m³/h	Machine Type:	Vertical
Drive:	Compressed Air	Operation:	Manual
Application:	Solid Liquid	Color:	Green, Blue, Silver

Capacity:	1-80m³/h
Machine Type:	Vertical
Drive:	Compressed Air
Operation:	Manual
Application:	Solid Liquid
Color:	Green, Blue, Silver

Solid Liquid Vertical Pressure Leaf Filter 0.4MPA Industrial Filtration Leaf Separator Filter

High Performance Vertical Pressure Leaf Filter for Industrial Filtration Needs

Working Principle

The vertical pressure leaf filter operates by pumping filtrate into the tank through the liquid inlet pipe. Under pressure, solid impurities are intercepted by the filter screen, forming a filter cake while clear filtrate passes through the screen into the outlet pipe. As filtration continues, the filter cake thickness increases, raising internal pressure. When pressure reaches approximately 0.4MPa, filtration stops and compressed air is introduced to dry the filter cake. The vibrator then shakes off the dried cake for discharge through the slag outlet.

Filter Slag Discharge Process

As filtration volume increases and filter cake thickens, pressure rises within the tank. When the pressure gauge indicates 0.4MPa, the bleaching earth mixture feed is stopped. Compressed air is then introduced through the overflow port, pressing residual oil from the filter cake back to the decolorizing pot. After approximately 30 minutes of drying, air input ceases. When pressure returns to zero, the butterfly valve opens and the vibrator activates to discharge the slag, completing the filtration cycle.

Technical Specifications

Model	Filter Area (m²)	Cake Area (L)	Capacity (T/h)	Working Pressure (MPa)	Working Temperature (°C)	Filtration Tank Volume (L)	Weight
NYB-2	2	30	0.4-0.7	0.4	≤150	150	350
NYB-4	4	60	0.5-1.3	0.4	≤150	280	450
NYB-7	7	105	1-1.85	0.4	≤150	450	700
NYB-10	10	150	1.5-3.2	0.4	≤150	850	1000
NYB-12	12	230	2-4.5	0.4	≤150	1100	1200
NYB-15	15	300	3-4.5	0.4	≤150	1400	1400
NYB-20	20	400	4-6.5	0.4	≤150	1700	1800
NYB-25	25	500	5-7.5	0.4	≤150	2000	2100
NYB-30	30	600	6-8.5	0.4	≤150	2400	2600
NYB-35	35	700	7-9.5	0.4	≤150	2700	3100
NYB-45	45	900	8-11.5	0.4	≤150	3300	3600
NYB-50	50	1000	9-14	0.4	≤150	3850	4050
NYB-60	60	1200	10-16	0.4	≤150	4550	4450
NYB-80	80	1580	12-20	0.4	≤150	5850	5600
NYB-90	90	1820	13-22	0.4	≤150	6750	6600

Filter Leaves

Why Choose Us

Exhibition Display

Frequently Asked Questions

How can we visit your factory?

International visitors arriving at Shanghai Airport or domestic travelers arriving at Yixing Station will be provided with transportation to our facility.

How do you guarantee the quality of your products?

With over 60 years of experience, we implement strict quality control using advanced machinery, certified operators, and internationally renowned components. Comprehensive testing occurs throughout production.

What payment methods does your company accept?

We accept most payment methods, with T/T being our primary preference.

How long is the warranty period of your products?

12 months warranty coverage.

I have not done business with your company before, how can I trust your company?

We have been verified on Alibaba for 14 years and can provide various business certificates for your review.

What are your company's shipping terms and delivery time?

Custom orders typically require 60-90 days for production and delivery.

Do you give any discount?

We strive to provide the best possible pricing for all our customers.
