Horizontal Centrifugal Mixer 120 - 400T/D Industrial LiqAuid Mixer Machine

Name: Horizontal Centrifugal Mixer 120 - 400T/D Industrial LiqAuid Mixer Machine
Brand: YIXING HUADING MACHINERY CO.,LTD.
SKU: PTSX
Price: 110.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: HUADING

Certification: CE ISO

Model Number: PTSX

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD20,000-USD200,000 per set

Packaging Details: fumigation wooden case

Delivery Time: 60 working days

Payment Terms: T/T,L/C,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Horizontal Centrifugal Mixer, 120T/D iquid Mixture Machine, 400T/D industrial liqAuid mixer machine


Machine Type:	Horizontal	Capacity:	120-400T/D
Processing Types:	Alcohol	Material:	SUS304/316L
Operation:	Automatic	Color:	Green, Blue, Silver

Machine Type:	Horizontal
Capacity:	120-400T/D
Processing Types:	Alcohol
Material:	SUS304/316L
Operation:	Automatic
Color:	Green, Blue, Silver

Horizontal Centrifugal Mixer 120 - 400T/D Industrial LiqAuid Mixer Machine

Horizontal Centrifugal Mixer 120-400T/D Industrial Liquid Mixer Machine

High Efficiency Fully Automatic Low Noise Horizontal Centrifugal Mixer

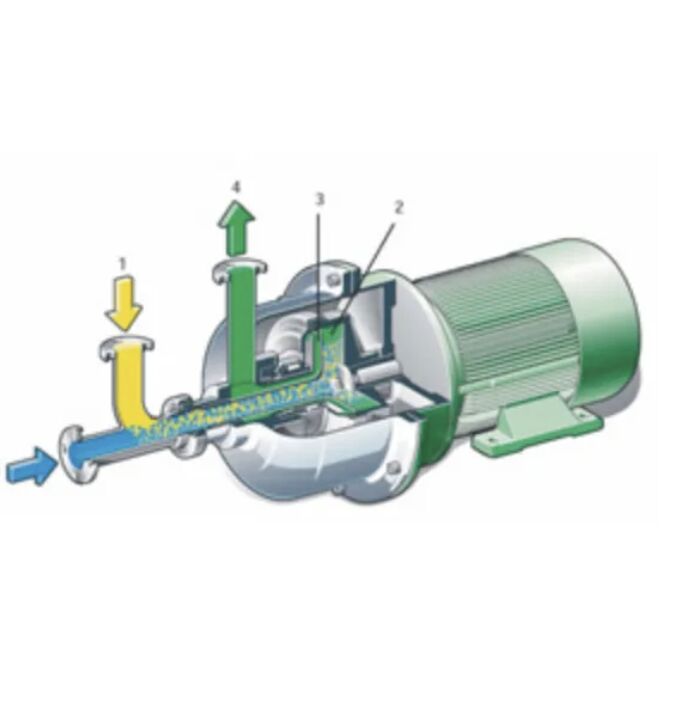

The LHZ series centrifugal mixer operates by pumping two phases jointly into a rotating mixing bowl where they are accelerated to the bowl's circumferential velocity. A centripetal pump discharges the liquid mixture from the mixing bowl, with intensive mixing occurring in the pump's channels. The mixed liquid is then discharged through the outlet.

Discharge line pressure is adjusted using a throttling valve, which maintains the suspension so that the centripetal pump channels remain immersed below the surface, preventing air intake. The hermetic version serves as the standard for gas-tight applications, featuring a slide ring packing with stainless-steel housing slide ring and hard carbon counter-ring for optimal sealing.

Power from the three-phase AC motor is transferred directly from the horizontal motor shaft to the mixer bowl. The variable speed mixer with frequency converter drive allows infinite electric adjustment of phase mixing, enabling customized mixing characteristics. This flexibility is particularly valuable for multi-purpose applications where drop size and turbulence requirements vary with speed.

Machine Specifications

Model	Capacity (T/d)	Outlet Pressure (Mpa)	Power (Kw)
LHZ165	120-130	0.10-0.22	3
LHZ180	140-180	0.10-0.30	4
LHZ200	200-300	0.10-0.30	11
LHZ220	300-400	0.10-0.30	15

Company Introduction

Huading Separator has been a leader in centrifugal separation technology for over 60 years since its establishment in 1954. As China's premier mechanical separation technology company, our machines serve diverse industries including beverage, dairy, oil and fat recovery, chemicals, pharmaceuticals, biotechnology, starch technology, marine engineering, energy, oil fields, and water treatment applications such as wastewater treatment and sludge dewatering.

Frequently Asked Questions

How can we visit your factory?

International visitors arriving at Shanghai Airport or domestic travelers arriving at Yixing Station will be provided with transportation to our facility.

How do you guarantee the quality of your products?

With over 60 years of experience, we implement strict quality policies using advanced processing machines for part accuracy, certified operators, international brand components, and comprehensive testing throughout production.

What payment methods does your company accept?

We accept most payment methods, primarily T/T (Telegraphic Transfer).

How long is the warranty period of your products?

12 months warranty coverage.

I have not done business with your company before, how can I trust your company?

Our company has maintained a 14-year presence on Alibaba with verified certifications and established credibility.

What are your company's shipping terms and delivery time?

Customized products require 60-90 days for delivery.

Do you give any discount?

We strive to provide the best possible pricing for all customers.
