OEM Disc Stack Separator Centrifuge 110V - 480V Bowl Screw Conveyor Gearbox End Hub

Product Details

Place of Origin: Jiangsu, China

Brand Name: HUADING

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $900-1,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    OEM Disc Stack Separator, Disc Stack Separator 110V, disc stack centrifuge 480V


Product Type:	Other	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Voltage:	110 - 480	Power(w):	10
Dimension(lwh):	10-20-30	Warranty:	1 Year
Key Selling Points:	Long Service Life	Material:	Stainless Steel
After Warranty Service:	Spare Parts	Type:	Centrifuge
Condition:	New	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms
Showroom Location:	Canada, United Kingdom, United States, Germany	Weight:	10

Product Type:	Other
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Voltage:	110 - 480
Power(w):	10
Dimension(lwh):	10-20-30
Warranty:	1 Year
Key Selling Points:	Long Service Life
Material:	Stainless Steel
After Warranty Service:	Spare Parts
Type:	Centrifuge
Condition:	New
Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms
Showroom Location:	Canada, United Kingdom, United States, Germany
Weight:	10

OEM Disc Stack Separator Centrifuge 110V - 480V Bowl Screw Conveyor Gearbox End Hub

OEM Disc Stack Separator Centrifuge Spare Parts

Original equipment manufacturer disc stack centrifuge separator spare parts including bowl screw conveyor gearbox end hub components.

Comprehensive Centrifuge Solutions

Centrifugal separation solutions from Chinese technology leader with expertise since 1954.

We provide complete centrifuge spare parts and fabrication services for all major brands including Andritz, Flottweg, Bird, Krauss Maffei, Baker Perkins, Dorr Oliver, APV, Alfa Laval, Heinkel, Western States, Tolhurst, Hutchison Hayes, Merco, and many more.

Repair & Fabrication Services

We repair and maintain all makes and models of industrial grade centrifuges. When parts are beyond repair, we fabricate brand new components that are better and stronger than original specifications.

Our comprehensive repair and replacement parts service for decanter centrifuges includes proven procedures that shorten repair schedules and ensure reliable performance over extended operating cycles.

We maintain an exhaustive inventory of parts for current, older styles, and obsolete machines. Emergency fabrication services available for parts not in stock.

Quality Assurance Standards

JB/T502-2015 Chinese national standard of decanter centrifuge
2006/42/EC Machinery Directive
2014/35/EU Low Voltage Directive
2014/30/EU Electromagnetic Compatibility Directive
ISO9001-2000 Quality Management System

Working Principle - 2-Phase Separation

1. Feed
2. Liquid phase
3. Solids phase
4. Pond
5. Dry beach

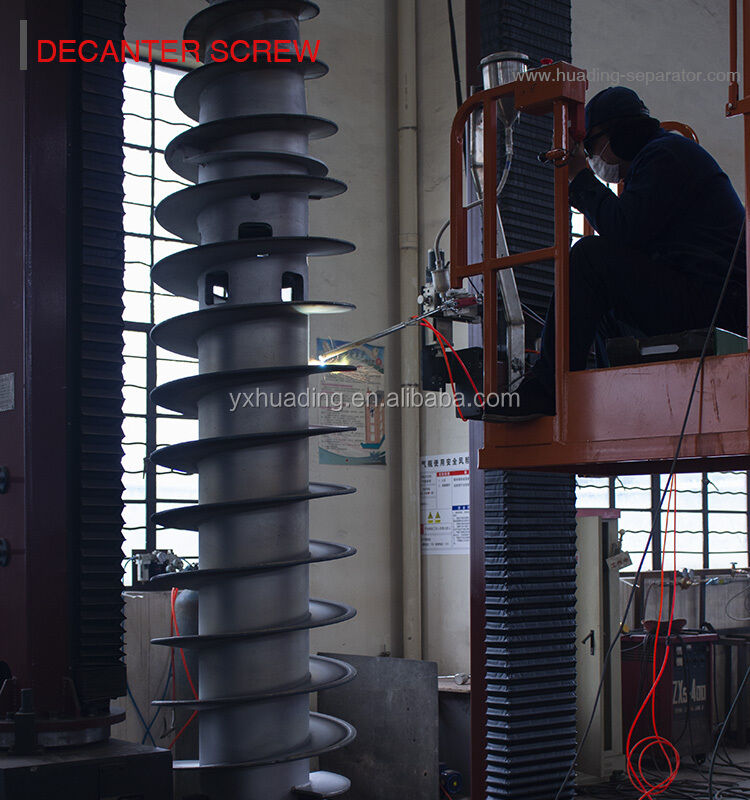

The feed suspension is introduced through an inlet pipe into the feed zone where it is accelerated into the bowl interior. Settled solids are conveyed axially by the screw conveyor, which rotates at a slightly different speed than the bowl. Solids are lifted out of the pond along the dry beach and discharged through ports into the casing collection chamber. The liquid phase flows toward the large end of the bowl and overflows adjustable plate dams into the centrate chamber for discharge.

Working Principle - 3-Phase Separation

0. Food
1. Light liquid phase
2. Heavy liquid phase
3. Solids phase

The light liquid phase discharges through radial holes in the large end hub, while the heavy liquid phase discharges through axial holes. Liquid levels are controlled by plate dams, with a separating plate preventing mixing of phases. Solids are discharged normally through established processes.

Material Construction

Bowl, conveyor, inlet tube, outlets, cover and other process-contact components are manufactured from stainless steel. Discharge ports, conveyor flights and feed zones feature erosion-resistant materials. The frame is constructed from mild steel with epoxy enamel finish.

Wear Protection Options

Huading Separator supplies comprehensive wear protection solutions for decanter centrifuges including:

Welded hard facing or spray coating
Ceramic protection
Tungsten carbide tiles
Chilled hard metal portcastings
Plastic liners

Drive System Configurations

One Motor Drive

Simple, cost-effective design ideal for constant solids volume applications with minimal requirements for residual water content. Differential speed generated as function of bowl speed and gear transmission, easily adjustable via belt pulley replacement.

Two Motor Drive

Enables cost-effective differential speed regulation under varying operating conditions. Secondary motor sets input shaft in motion, generating differential speed that can be regulated by motor speed adjustment. Suitable for fluctuating solids volumes and stringent residual water requirements.

Hydro Drive

Similar functionality to two motor drive but utilizes rotating hydromotor supplied by hydraulic regulation pump unit. Enables automatic regulation through proportional oil conveyance control.

Technical Specifications

Huading Separator has decades of experience in decanter development and manufacturing, with extensive expertise across various applications.

Bowl ID (mm)	Bowl Speed (rpm)	L/D	G-Force	Capacity (m³/h)	Solids Removal (m³/h)	Primary Motor (Kw)	Weight (Kg)	Dimension (mm)
250	4800~5400	3.0~5.0	2000~3500	3~5	0.4	11	760	1600×1100×850
300	4200~4600	3.0~5.0	2000~3500	3~15	0.8	11~15	1500	2470×1230×850
350	3700~4200	3.0~5.0	2000~3500	5~20	1.2	5~22	2000	2790×1300×880
400	3200~3900	3.0~4.8	2000~3500	5~30	2	18.5~30	2600	2950×1400×850
450	3000~3700	3.0~5.0	2000~3500	5~45	2.5	22~37	3200	3300×1500×920
530	2700~3450	3.0~5.0	2000~3500	10~80	5	30~55	5200	3730×1600×1100
580	2600~3300	3.0~5.0	2000~3500	10~90	6	45~75	6900	4000×1400×1600
650	2400~3100	3.0~5.0	2000~3500	20~105	8	37~90	8200	4300×1900×1350
760	2200~2900	3.0~5.0	2000~3500	30~120	12	55~135	12000	5000×2500×1500
900	1800~2600	3.0~5.0	2000~3500	40~180	16	75~160	18000	6500×2700×1500

After-Sales Service & Training

Comprehensive technical services including:

Technical direction for installation and debugging
Training for operation and maintenance personnel

Training Curriculum

Separator working principle and structure
Operation regulations and safety precautions
Machine maintenance procedures

Company Experience

Huading Separator has been developing and manufacturing centrifuges for nearly 60 years, establishing leadership in continuous separation technology with extensive application expertise.

For more information, please visit: huading-separator.com

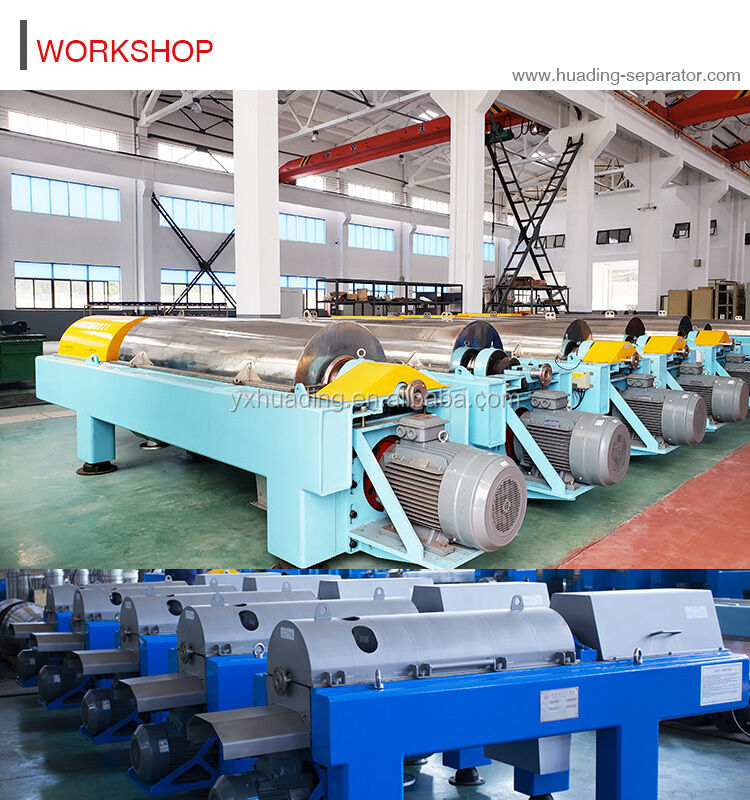

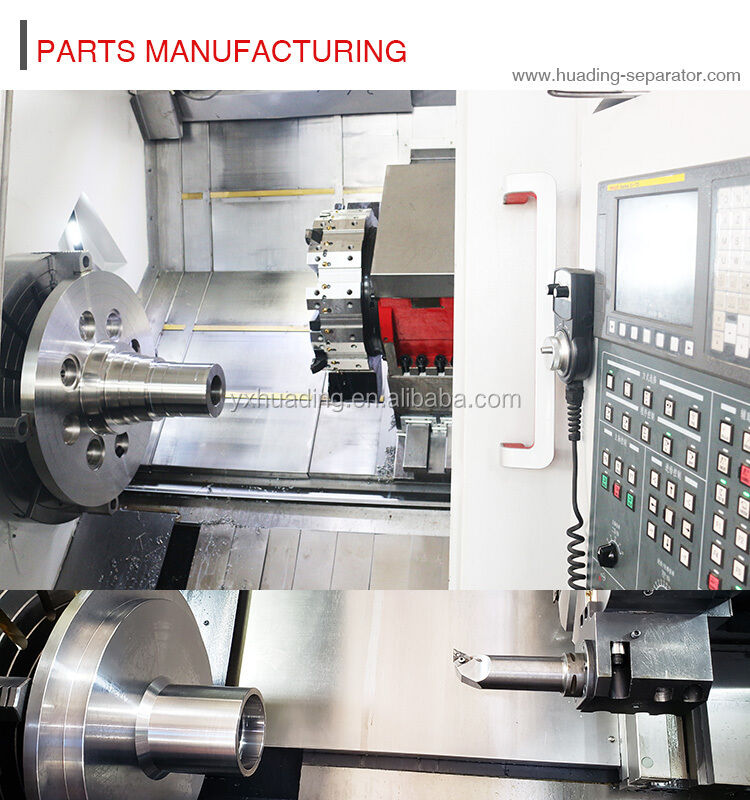

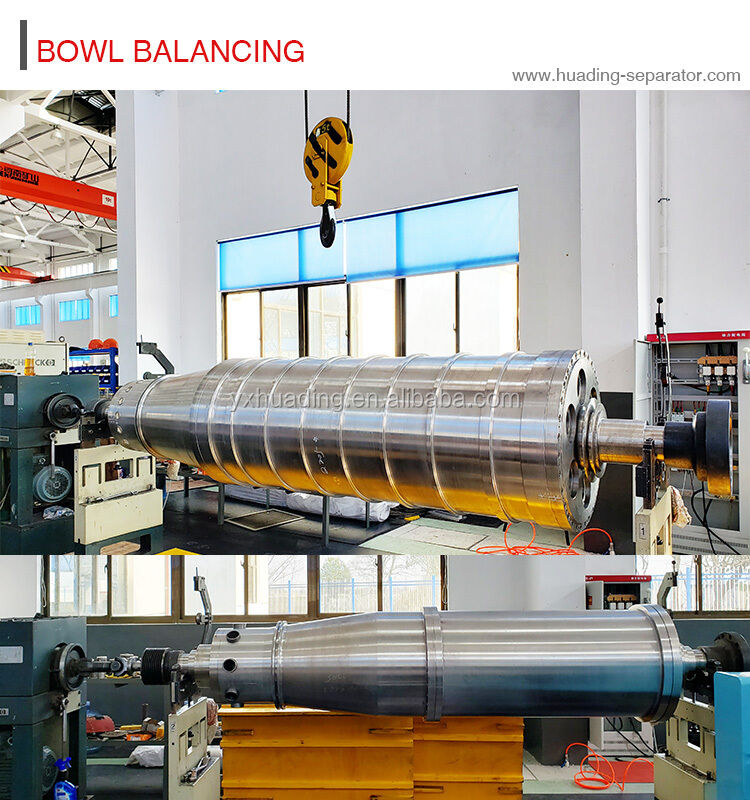

Manufacturing Facilities
