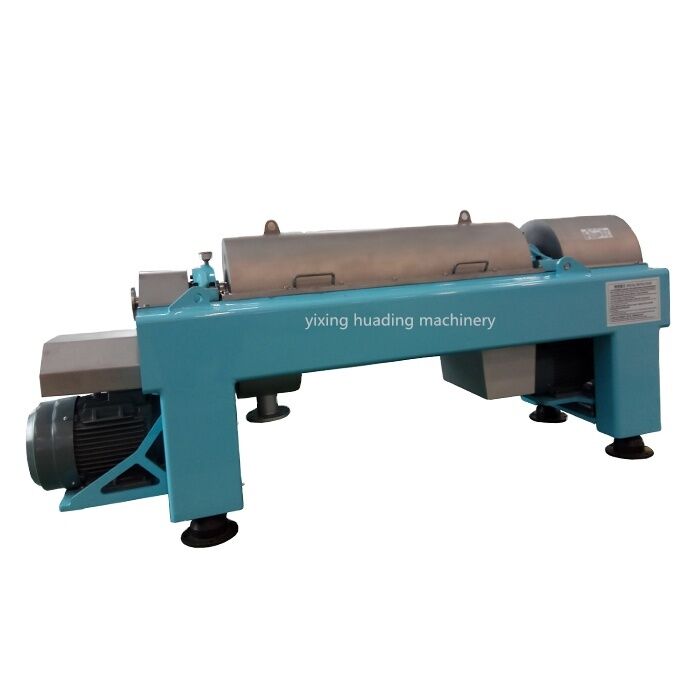

Tallow Fats Water Separation Machine 3 Phase Fish Oil Decanter Centrifugal

Product Details

Place of Origin: Jiangsu, China

Brand Name: Huading

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $24,000-25,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                            tallow fats water separation machine, water separation machine 3 phase, tallow fats decanter centrifugal


Product Type:	Decanter	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	Bowl
Voltage:	220/ 380 / 415	Power(w):	5.5-132
Warranty:	1 Year	Key Selling Points:	High Productivity
Capacity:	10000L/h	Weight (KG):	2000
Setting Speed:	3 000 RPM

Product Type:	Decanter
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	Bowl
Voltage:	220/ 380 / 415
Power(w):	5.5-132
Warranty:	1 Year
Key Selling Points:	High Productivity
Capacity:	10000L/h
Weight (KG):	2000
Setting Speed:	3 000 RPM

Tallow Fats Water Separation Machine 3 Phase Fish Oil Decanter Centrifugal

3 Phase Tallow Fats Water Separation Machine Decanter Centrifugal for Fish Oil Fish Meal Clarification

Tricanter For Fishoil Fishmeal Processing

Both separators and decanters have been used for fish oil and fish meal processing for over 100 years. Huading Separator has developed, manufactured and delivered more than 1000 centrifuges for the fish oil industry while successfully and innovatively optimizing the processes. Whether using the Conventional process, Whole fish or Three-phase decanter process, our centrifuges ensure customers obtain the most efficient separation of dry substance (protein), fat and water while keeping contact time to a minimum.

Huading Separator offers new and worthwhile solutions for processing small capacities.

Standard Equipment

The decanter centrifuge includes a motor control center panel to operate the main drive, back drive, and feed pump. A differential speed controller maintains optimal solids balance in the decanter during operation. All parts exposed to wear are protected by special metal hard facing, ceramic wear bushes, inserts, etc. Bushes and inserts are easily exchangeable, even under field conditions. Maintenance tools and spare parts are supplied.

Key Features

All parts directly contacting materials are made of stainless steel
Continuous and automatic operation minimizes labor costs
Two motor drive with adjustable bowl and screw speed via VFD
Continuous spiral discharging with PLC control and touch screen operation
Scroll conveyor coated with wearable alloy or welded with alloy plate
Safety protection: rotation rate detection, vibration protection, motor overload and overheat protection, scroll protection for zero differential speed

Technical Specifications

Huading Separator has been developing and manufacturing decanters for over 15 years and is one of China's leading decanter manufacturers. We offer many different types of decanters applied across various industries, delivering significant benefits to our customers.

Bowl ID (mm)	Bowl Speed (rpm)	L/D	G-Force	Capacity (m³/h)	Solids Removal (m³/h)	Primary Motor (Kw)	Weight (Kg)	Dimension (mm)
250	4800~5400	3.0~5.0	2000~3500	3~5	0.4	11	760	1600×1100×850
300	4200~4600	3.0~5.0	2000~3500	3~15	0.8	11~15	1500	2470×1230×850
350	3700~4200	3.0~5.0	2000~3500	5~20	1.2	5~22	2000	2790×1300×880
400	3200~3900	3.0~4.8	2000~3500	5~30	2	18.5~30	2600	2950×1400×850
450	3000~3700	3.0~5.0	2000~3500	5~45	2.5	22~37	3200	3300×1500×920
530	2700~3450	3.0~5.0	2000~3500	10~80	5	30~55	5200	3730×1600×1100
580	2600~3300	3.0~5.0	2000~3500	10~90	6	45~75	6900	4000×1400×1600
650	2400~3100	3.0~5.0	2000~3500	20~105	8	37~90	8200	4300×1900×1350
760	2200~2900	3.0~5.0	2000~3500	30~120	12	55~135	12000	5000×2500×1500
900	1800~2600	3.0~5.0	2000~3500	40~180	16	75~160	18000	6500×2700×1500

Operating Principle

The horizontal screw discharge sedimentation centrifuge performs continuous separation of materials with density differences in suspensions using centrifugal sedimentation principle. The bowl and feeding screw rotate at high speed with a differential speed between them. Materials are introduced through the feed tube into the inner cylinder, then enter the bowl after acceleration. Under centrifugal force, heavier solids deposit on the bowl walls forming residue layers. The spiral material pusher continuously pushes deposited solids to the taper end for discharge after dehydration. The machine enables continuous feeding, sedimentation, separation, washing and discharging during full-speed operation.

This equipment features compact structure, continuous operation, stable production capacity, and convenient maintenance. It is suitable for separating suspensions containing solids with particle diameters greater than 0.005mm and concentration ranging 2-40%. Widely applied in chemical, light industry, medical, food, and environmental protection industries.

Three-Phase Working Principle

The bowl and screw rotate at high speed with differential speed. Materials enter the bowl through the feed tube. Under centrifugal force, high specific weight liquid accumulates on the inner walls and discharges through centripetal pump or overflow plate. Low specific weight liquids form an inner liquid ring, stick to heavy liquid surfaces, and discharge from the overflow channel. Solids are continuously pushed to the taper end by the spiral material pusher and discharged after drying.

Two-Phase Working Principle

Suspensions enter the spiral material pusher cavity through the feed tube, then enter the bowl cavity through material vent. Sedimented solids move to the small end of the bowl under pushing action at differential speed, discharging from the solid discharge port. Liquids form a hollow liquid ring under centrifugal force, moving to the large end of the bowl. After running over the adjustable overflow baffle, they discharge from the liquid outlet under gravity.
