Solid Liquid Separation Decanter Centrifuge 250- 50000L/H Wastewater Centrifuge Dewatering

Product Details

Place of Origin: Jiangsu, China

Brand Name: HUADING

Certification: ISO,CE

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $24,000-25,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Solid liquid Separation Decanter Centrifuge, Decanter Centrifuge 250L/H, 50000L/H wastewater centrifuge dewatering


Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	Bowl	Warranty:	1 Year
Productivity:	/	Weight (kg):	3000
Processing Type:	Centrifuge	Dimension(LWH):	/
Power(W):	5.5-132Kw	Voltage:	220V Electrical Equipment, 380 V, 110 V
Model:	WZ	Capacity:	250L~50,000L/H
Function:	Waste Water Treatment	After Warranty Service:	Online Support\Field Maintenance
Showroom Location:	United States & United Kingdom & Canada	Condition:	New
Marketing Type:	New Product 2020	Warranty Of Core Components:	1 Year
Local Service Location:	Germany & Vietnam & United States

Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	Bowl
Warranty:	1 Year
Productivity:	/
Weight (kg):	3000
Processing Type:	Centrifuge
Dimension(LWH):	/
Power(W):	5.5-132Kw
Voltage:	220V Electrical Equipment, 380 V, 110 V
Model:	WZ
Capacity:	250L~50,000L/H
Function:	Waste Water Treatment
After Warranty Service:	Online Support\Field Maintenance
Showroom Location:	United States & United Kingdom & Canada
Condition:	New
Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year
Local Service Location:	Germany & Vietnam & United States

Solid Liquid Separation Decanter Centrifuge 250- 50000L/H Wastewater Centrifuge Dewatering

Solid Liquid Separation Decanter Centrifuge

High-performance decanter centrifuge for wastewater treatment and solid-liquid separation with capacity range of 250-50,000 L/H.

Water resources are essential for human survival. Human activities have led to significant environmental degradation and serious water pollution. Therefore, protecting water resources and managing water pollution have become critical priorities in modern society. Huading has extensive experience in centrifugal separation technology applied to water and wastewater treatment, enabling us to provide economical, efficient, and sustainable treatment solutions ranging from drinking water treatment to urban and industrial wastewater treatment according to diverse user requirements.

Customized Solutions

With extensive experience from thousands of engineering projects, we offer tailored solutions including:

Drinking water treatment
Sludge dewatering
Sewage concentration
Corporate wastewater treatment
Municipal wastewater treatment
Process water treatment
Extraction of useful substances from process water and sludge

Product Features

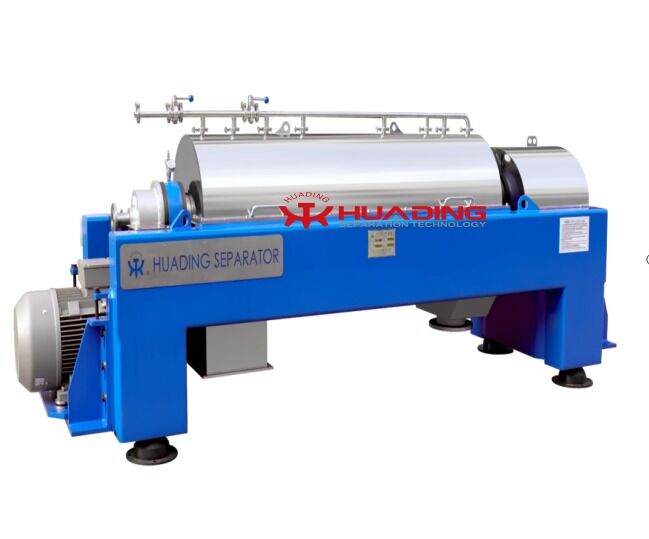

The rotating part of these decanter tricanter centrifuges is mounted on a compact, in-line frame with main bearings at both ends. Vibration dampers are placed under the frame. The rotating part is enclosed in a casing with a cover and a bottom section featuring integrated outlets for both solids and the liquid being removed.

Quality Assurance

JB/T502-2015 Chinese national standard of decanter centrifuge
2006/42/EC Machinery Directive
2014/35/EU Low voltage Directive
2014/30/EU Electromagnetic compatibility Directive
Quality management system of ISO9001-2000

Technical Specifications

Parameter	Specification
Bowl Diameter	186-720mm
Bowl Length	744-3000mm
Bowl Speed	2000-6000rpm
G-Force	1600-4000g
Weight	600-8000kg
Primary Motor	5.5-132kw
Secondary Motor	2.2-45kw
Material	AISI 304/316/316L/Duplex Steel
Noise	<88db

Drive System Options

One Motor Drive

This simple design offers cost-effective purchase and operation. One motor drive systems are used when solids volume is constant, solids are easy to convey, and requirements for residual water content in solids are not stringent. The input shaft is driven by the main motor via a belt drive, generating differential speed as a function of bowl speed and gear transmission. Speed can be easily adjusted by replacing belt pulleys.

Two Motor Drive

This system enables cost-effective differential speed regulation under good operating conditions with wide regulating ranges. The secondary motor sets the input shaft in motion, generating differential speed as a function of bowl speed and gear transmission. Differential speed can be easily regulated by changing motor speed. Two motor drives are used when solid volumes fluctuate significantly, solids are conveyed under difficult conditions, and stringent requirements apply to residual water content.

Hydro Drive

Similar to the two motor drive but with different design. Instead of mechanical gear, a rotating hydromotor is installed and supplied with hydraulic regulation by a pump unit. Since differential speed is proportionate to conveyed oil quantity, automatic regulation can be provided without problems.

Frequently Asked Questions

How can we visit your factory?

International visitors arriving at Shanghai Airport or domestic visitors arriving at Yixing Station will be provided with transportation from the station to our facility.

How do you guarantee the quality of your products?

Our company has over 60 years of experience and implements strict quality policies. Advanced processing machines ensure part accuracy, workers are certified, parts undergo multiple processing stages, and transmission/electrical components use internationally renowned brands. Comprehensive testing and inspection occur throughout production.

What payment methods does your company accept?

We accept most payment methods, with T/T being the primary method.

How long is the warranty period of your products?

12 months warranty period.

I have not done business with your company before, how can I trust your company?

Our company has been on Alibaba for 14 years and provides various certifications to establish trust.

What are your company's shipping terms and delivery time?

Each unit is customized with delivery time of 60-90 days.

Do you give any discount?

We will make every effort to help you get the best possible deal.
