0.1 Micron Horizontal Pressure Leaf Filter 1 - 80m3/H Horizontal Metal Leaf Filter

Product Details

Place of Origin: CHINA

Brand Name: HUADING

Certification: CE ISO

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD20,000-USD200,000 per set

Packaging Details: fumigation wooden case

Delivery Time: 60 working days

Payment Terms: T/T,L/C,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    0.1 micron Horizontal Pressure Leaf Filter, Horizontal Pressure Leaf Filter 1m3/h, 80m3/h horizontal metal leaf filter


Capacity:	1-80m³/h	Machine Type:	Vertical
Drive:	Compressed Air	Operation:	Manual
Application:	Solid Liquid	Color:	Green, Blue, Silver

Capacity:	1-80m³/h
Machine Type:	Vertical
Drive:	Compressed Air
Operation:	Manual
Application:	Solid Liquid
Color:	Green, Blue, Silver

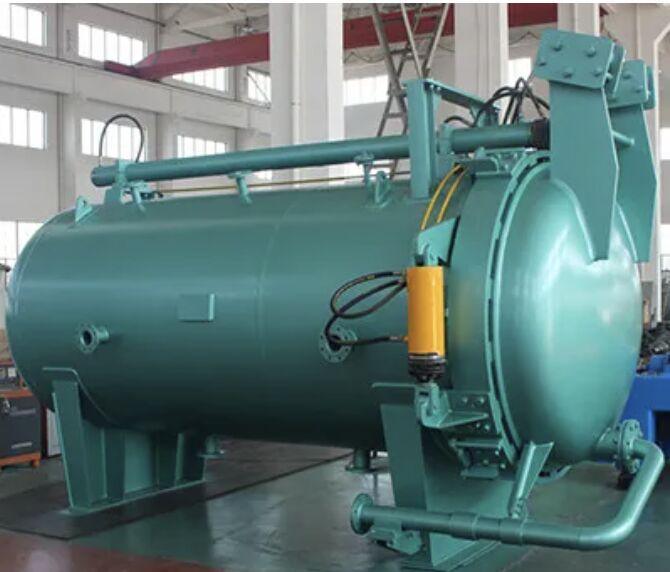

0.1 Micron Horizontal Pressure Leaf Filter 1 - 80m3/H Horizontal Metal Leaf Filter

0.1 Micron Horizontal Pressure Leaf Filter 1 - 80m³/H Horizontal Metal Leaf Filter

Maximize filtration efficiency with our Horizontal Pressure Leaf Filter for optimal filtration results

Key Benefits

Filtration area range: 5 to 500 square meters
Ideal for high polish applications with 0.1 micron removal capability
Dry and/or wet solids discharge options
Automated closed system operation
Jackets available for steam, water, or cooling applications
Control options: semi-automatic or fully automatic

Working Principle

The vertical pressure leaf filter operates by pumping filtrate into the tank through the liquid inlet pipe. Under pressure, solid impurities are intercepted by the filter, forming a filter cake while clear filtrate passes through the filter screen and exits through the outlet pipe. As filtration continues, the filter cake thickness increases, raising internal pressure. When pressure reaches a set value, filtration stops and compressed air is introduced to dry the filter cake before vibration dislodges it through the discharge port.

Filter Slag Discharge Process

As filtration volume increases and filter cake thickens, resistance rises until pressure reaches 0.4Mpa. At this point, feed is stopped and air compression begins, forcing remaining oil from the filter cake back to the decolorizing pot. After 30 minutes of pressing, when the filter cake is dry and pressure returns to zero, the butterfly valve opens and vibration begins for slag discharge. Once complete, all valves close to prepare for the next filtration cycle.

Technical Specifications

Model	Filter Area (m²)	Cake Area (L)	Capacity (T/h)	Working Pressure (MPa)	Working Temperature (°C)	Filtration Tank Volume (L)	Weight
NYB-2	2	30	0.4-0.7	0.4	≤150	150	350
NYB-4	4	60	0.5-1.3	0.4	≤150	280	450
NYB-7	7	105	1-1.85	0.4	≤150	450	700
NYB-10	10	150	1.5-3.2	0.4	≤150	850	1000
NYB-12	12	230	2-4.5	0.4	≤150	1100	1200
NYB-15	15	300	3-4.5	0.4	≤150	1400	1400
NYB-20	20	400	4-6.5	0.4	≤150	1700	1800
NYB-25	25	500	5-7.5	0.4	≤150	2000	2100
NYB-30	30	600	6-8.5	0.4	≤150	2400	2600
NYB-35	35	700	7-9.5	0.4	≤150	2700	3100
NYB-45	45	900	8-11.5	0.4	≤150	3300	3600
NYB-50	50	1000	9-14	0.4	≤150	3850	4050
NYB-60	60	1200	10-16	0.4	≤150	4550	4450
NYB-80	80	1580	12-20	0.4	≤150	5850	5600
NYB-90	90	1820	13-22	0.4	≤150	6750	6600

Filter Leaves

Why Choose Us

Exhibition Display

Frequently Asked Questions

Q: How can we visit your factory?
A: International visitors arriving at Shanghai Airport or domestic visitors arriving at Yixing Station will be provided with transportation to our facility.
Q: How do you guarantee the quality of your products?
A: With over 60 years of experience, we implement strict quality control using advanced machinery, certified operators, and internationally renowned components with comprehensive testing throughout production.
Q: What payment methods does your company accept?
A: We accept most payment methods, primarily T/T bank transfers.
Q: How long is the warranty period of your products?
A: 12 months warranty coverage.
Q: I have not done business with your company before, how can I trust your company?
A: We have 14 years of verified presence on Alibaba with all necessary certifications provided.
Q: What are your company's shipping terms and delivery time?
A: Customized units require 60-90 days for delivery.
Q: Do you give any discount?
A: We strive to provide the best possible pricing for all customers.
