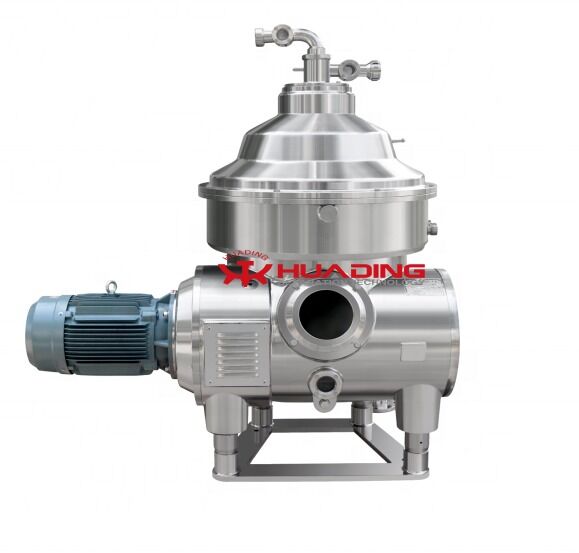

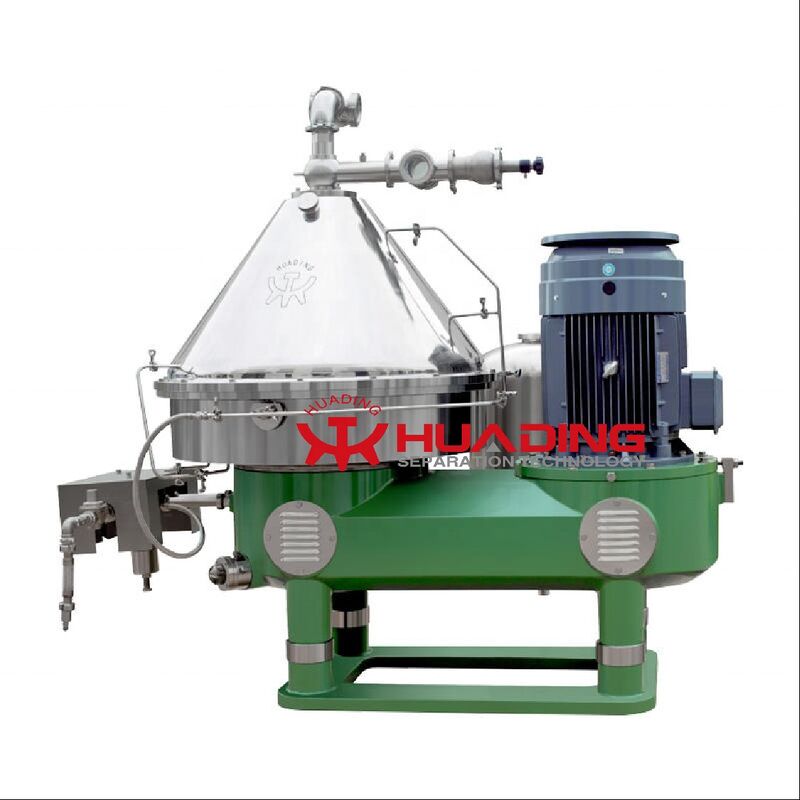

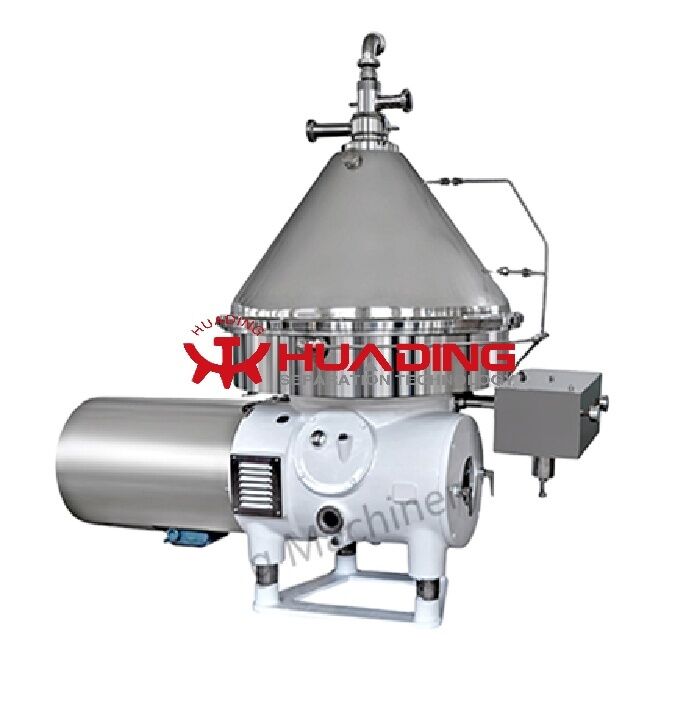

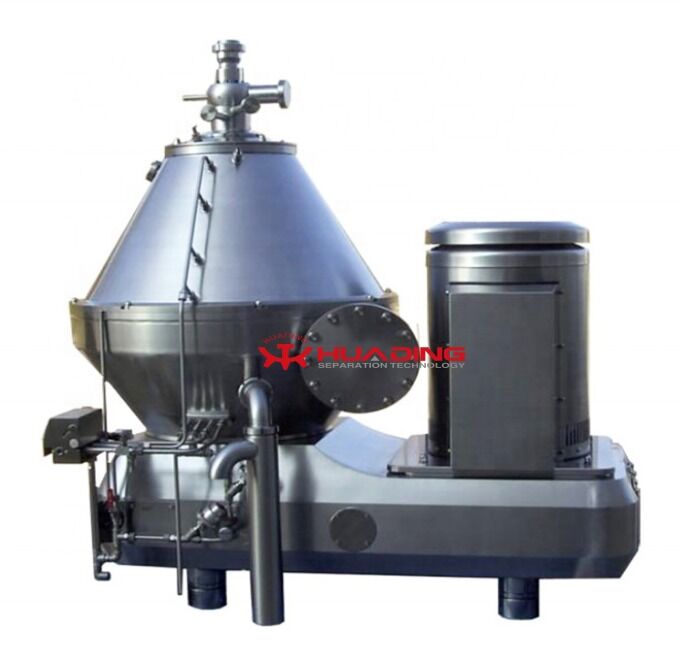

Customized Protein Recovery Centrifuge of CE Standard

Product Details

Place of Origin: Jiangsu, China

Brand Name: HUADING

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $20,000-25,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    customized disc centrifuge, customized disc stack separator, ce disc centrifuge


Product Type:	Other	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	Bowl
Voltage:	110 - 415V	Power(w):	4 - 90 Kw
Dimension(lwh):	200012001800mm	Warranty:	1 Year
Key Selling Points:	/	After-sales Service Provided:	Overseas Service Center Available
Drive:	Gear / Belt	Bowl Speed:	4000 - 10000 Rpm
Centrifugal Force:	> 10,000 G	Bowl Volume:	8 - 300 L
Bowl Weight:	50-15000 Kg	Solids Holding Space:	2 - 50 L
Inlet Pressure:	0-0.1 Mpa	Liquid Outlet Pressure:	0.2-0.6 Mpa
Starting Time:	5 - 30 Mins	Type:	Centrifuge
Condition:	New	Marketing Type:	Ordinary Product
Warranty Of Core Components:	5 Year	Applicable Industries:	Other
Showroom Location:	None	Weight:	1200

Product Type:	Other
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	Bowl
Voltage:	110 - 415V
Power(w):	4 - 90 Kw
Dimension(lwh):	200012001800mm
Warranty:	1 Year
Key Selling Points:	/
After-sales Service Provided:	Overseas Service Center Available
Drive:	Gear / Belt
Bowl Speed:	4000 - 10000 Rpm
Centrifugal Force:	> 10,000 G
Bowl Volume:	8 - 300 L
Bowl Weight:	50-15000 Kg
Solids Holding Space:	2 - 50 L
Inlet Pressure:	0-0.1 Mpa
Liquid Outlet Pressure:	0.2-0.6 Mpa
Starting Time:	5 - 30 Mins
Type:	Centrifuge
Condition:	New
Marketing Type:	Ordinary Product
Warranty Of Core Components:	5 Year
Applicable Industries:	Other
Showroom Location:	None
Weight:	1200

Customized Protein Recovery Centrifuge of CE Standard

Leading manufacturer of disc separators in China since 1954, specializing in customized centrifuges for various industrial applications.

Technical Specifications

Specification	Details
Drive	Gear / Belt
Bowl Speed	4000 - 10000 rpm
Centrifugal Force	> 10,000 g
Bowl Volume	8 - 300 L
Bowl Weight	50-15000 Kg
Solids Holding Space	2 - 50 L
Inlet Pressure	0-0.1 Mpa
Liquid Outlet Pressure	0.2-0.6 Mpa
Starting Time	5 - 30 mins
Stopping Time (no brakes)	> 40 mins

Huading Separator has over 60 years of tradition in mechanical separating technology. As China's leading manufacturer, our developments serve diverse industries including beverage, dairy, oil and fat processing, chemicals, pharmaceuticals, biotechnology, starch technology, marine engineering, energy, oil fields, and environmental technology. We develop and build customized centrifuges and complete process lines tailored to customer requirements.

Compliance Standards

JB/T 8103 standards - Chinese national standard of disc centrifuge
2006/42/EC (Machinery)
2014/35/EU (Low Voltage)
2014/30/EU (Electromagnetic Compatibility)
Quality management system of ISO9001-2000

Centrifugal Separation Technology

Disc stack separators efficiently separate solids and liquid phases in a continuous process using high centrifugal forces. Denser solids move outward against the rotating bowl wall while less dense liquids form concentric inner layers. The interface position between phases can be adjusted for optimal separation efficiency. Special disc plates provide additional settling surface area, dramatically accelerating the separation process. Solids can be removed continuously, intermittently, or manually based on centrifuge type and application requirements.

2-Phase Separation Disc Stack Centrifuge

Separation occurs inside a rotating bowl where feed enters via a stationary inlet pipe and accelerates in the distributor before reaching the disc stack. Liquid-solids separation happens between discs, with liquid moving to the center and pumped out via a paring disc. Solids collect in the periphery and discharge intermittently through a hydraulic system that opens solids ports at preset intervals.

3-Phase Separation Disc Stack Centrifuge

Suspension enters the separator bowl through a feeding pipe into the disc stack. Heavy phase and sludge move toward the bowl periphery while light phase flows toward the center for pumping. Heavy phase is directed over a top disc into a chamber for pumping. Solids collect in the sludge space and discharge intermittently via hydraulic system, collected in the frame and exiting via cyclone.

Self-cleaning disc stack centrifuges are categorized as purifiers (solids and two liquid phases) or clarifiers (solids and one liquid phase).

Why Choose Huading Separator

60+

Years Experience

Developing and manufacturing disc stack centrifuges for over six decades

40000+

Installations

Centrifuges installed in over 50 countries since 1954

100+

Centrifuge Models

Comprehensive range to satisfy diverse customer requirements

Global
