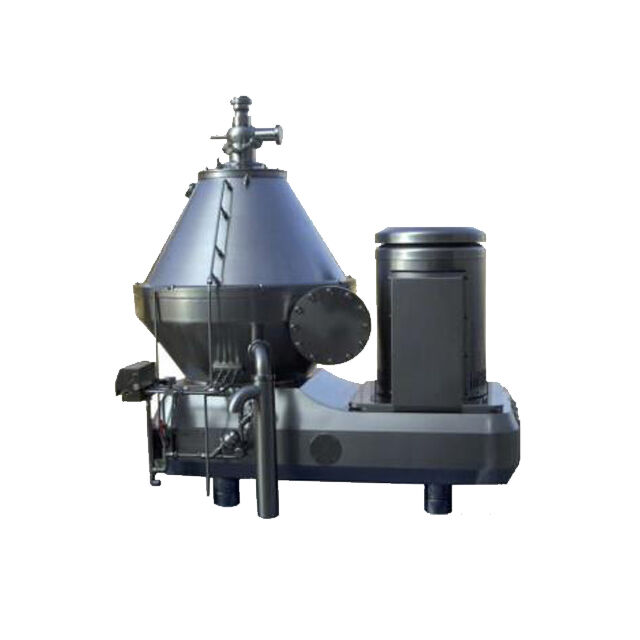

Liquid Solid Milk Clarifier for Factory Use

Product Details

Place of Origin: Jiangsu, China

Brand Name: HUADING

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $25,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                            liquid solid disc centrifuge, liquid solid disc stack separator


Core Components:	Engine, Bearing, PLC, Motor, Gearbox	Voltage:	220 - 480 V
Power(w):	11 - 75 Kw	Weight:	55
Dimension(lwh):	50-50-50	Warranty:	1 Year
Key Selling Points:	High Productivity	Applicable Industries:	Food & Beverage Shops
After Warranty Service:	Spare Parts

Core Components:	Engine, Bearing, PLC, Motor, Gearbox
Voltage:	220 - 480 V
Power(w):	11 - 75 Kw
Weight:	55
Dimension(lwh):	50-50-50
Warranty:	1 Year
Key Selling Points:	High Productivity
Applicable Industries:	Food & Beverage Shops
After Warranty Service:	Spare Parts

Liquid Solid Milk Clarifier for Factory Use

Customized liquid solid milk clarifier designed for industrial factory applications with advanced separation technology.

As the leading manufacturer of disc separators in China since 1954, Huading Separator brings over 60 years of expertise to every solution.

Technical Specifications

Specification	Details
Drive	Gear / Belt
Bowl Speed	4000 - 10000 rpm
Centrifugal Force	> 10,000 g
Bowl Volume	8 - 300 L
Bowl Weight	50-15000 Kg
Solids Holding Space	2 - 50 L
Inlet Pressure	0-0.1 Mpa
Liquid Outlet Pressure	0.2-0.6 Mpa
Starting Time	5 - 30 mins
Stopping Time (no brakes)	> 40 mins

Product Keywords: liquid solid milk clarifier

Huading Separator has a rich tradition spanning more than 60 years. Today, the company stands as the leading manufacturer in mechanical separating technology in China. Our developments serve diverse industries including beverage and dairy processing, oil and fat recovery, chemicals, pharmaceuticals, biotechnology, starch technology, marine engineering, energy, oil fields, and industrial applications. Environmental technology represents a particularly significant focus area, showcasing our commitment to ecological solutions.

Compliance Standards

JB/T 8103 standards - Chinese national standard of disc centrifuge
2006/42/EC (Machinery)
2014/35/EU (Low Voltage)
2014/30/EU (Electromagnetic Compatibility)
Quality management system of ISO9001-2000

Centrifugal Separation Technology

The disc stack separator efficiently separates solids and one or two liquid phases in a single continuous process using extremely high centrifugal forces. Denser solids are forced outward against the rotating bowl wall, while less dense liquid phases form concentric inner layers. The interface position—where different liquid phases meet—can be adjusted to optimize separation efficiency. Special plates (the "disc stack") provide additional surface settling area, dramatically accelerating the separation process. The specific configuration, shape, and design of these plates enable continuous separation of various solids from one or two liquids. Concentrated solids can be removed continuously, intermittently, or manually, depending on centrifuge type and application requirements.

2-Phase Separation Disc Stack Centrifuge

Process Flow:
1 Feed
2 Discharge
3 Inlet tube
4 Disc stack
5 Solids holding space
6 Centripetal pump chamber
7 Centripetal pump

Separation occurs inside a rotating bowl where feed material is introduced from the top via a stationary inlet pipe. The distributor ensures smooth acceleration before the material enters the disc stack. Liquid-solid separation takes place between the discs, with the liquid phase moving through the disc stack to the center and being pumped out via a built-in paring disc. Solids collect in the periphery and are discharged intermittently through a hydraulic system that opens solids ports at the bowl periphery.

3-Phase Separation Disc Stack Centrifuge

Process Flow:
1 Inlet tube
2 Central bore
3 Distributor
4 Distributor bore
5 Rising channels
6 Light phase centripetal pump
7 Heavy phase centripetal pump

Suspension enters the separator bowl from the top through a feeding pipe and flows into the disc stack. The heavy phase and sludge move toward the bowl periphery while the light phase flows toward the center for pumping and further processing. The heavy phase is directed over a top disc into a chamber where a paring device pumps it out. Solids collect in the sludge space and discharge intermittently via a hydraulic system that opens solids ports at the bowl periphery. The solids are collected in the frame and exit the centrifuge through a cyclone.

Self-cleaning disc stack centrifuges are categorized into two types: purifiers for separating solids and two liquid phases in a continuous process, and clarifiers for separating solids and one liquid phase.

Why Choose Huading Separator

Our Advantages

Huading Separator is a market leader in centrifugal separating technology with over 60 years of experience developing and manufacturing centrifugal separation equipment.

60+ Years Experience

For more than 60 years, Huading Separator has been developing and manufacturing disc stack centrifuges.

40,000+ Installations

Since 1954, over 40,000 centrifuges from Huading Separator have been installed in more than 50 countries.

100+ Centrifuge Models

To meet diverse customer demands, we have launched more than 100 centrifuge models across various fields.

Global References

Worldwide, many well-known food and pharmaceutical manufacturers rely on Huading centrifugal separation technology.
