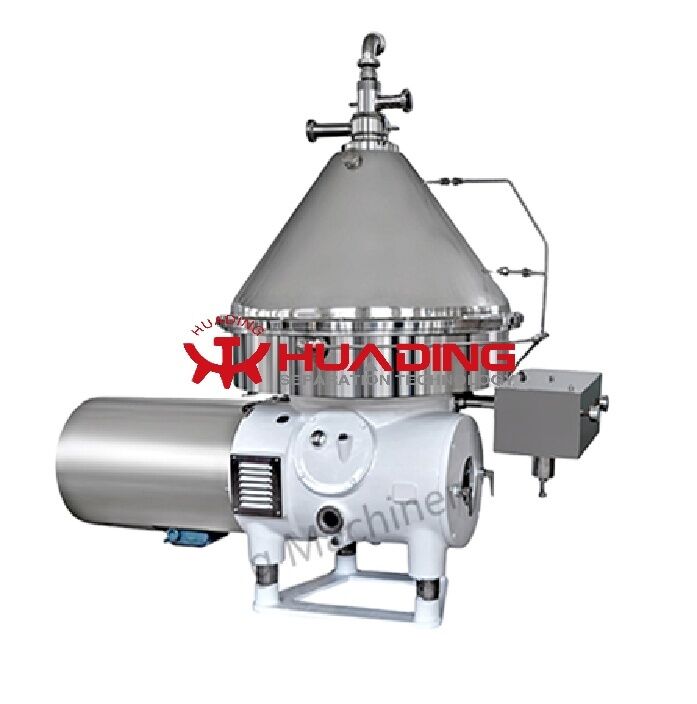

Manufacturer Separator with Large Capacity Fully Automatic Centrifuge

Product Details

Place of Origin: Jiangsu, China

Brand Name: HUADING

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $25,000-26,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    automatic disc centrifuge, automatic disc stack separator, 415v disc centrifuge


Product Type:	Other	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	Bowl
Voltage:	110 - 415V	Power(w):	4 - 90 Kw
Dimension(lwh):	200012001800mm	Warranty:	1 Year
Key Selling Points:	/	Capacity:	6000
Weight (KG):	2400	Setting Speed:	6000
After-sales Service Provided:	Overseas Service Center Available	Drive:	Gear / Belt
Bowl Speed:	4000 - 10000 Rpm	Centrifugal Force:	> 10,000 G
Bowl Volume:	8 - 300 L	Bowl Weight:	50-15000 Kg
Solids Holding Space:	2 - 50 L	Inlet Pressure:	0-0.1 Mpa

Product Type:	Other
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	Bowl
Voltage:	110 - 415V
Power(w):	4 - 90 Kw
Dimension(lwh):	200012001800mm
Warranty:	1 Year
Key Selling Points:	/
Capacity:	6000
Weight (KG):	2400
Setting Speed:	6000
After-sales Service Provided:	Overseas Service Center Available
Drive:	Gear / Belt
Bowl Speed:	4000 - 10000 Rpm
Centrifugal Force:	> 10,000 G
Bowl Volume:	8 - 300 L
Bowl Weight:	50-15000 Kg
Solids Holding Space:	2 - 50 L
Inlet Pressure:	0-0.1 Mpa

Manufacturer Separator with Large Capacity Fully Automatic Centrifuge

Leading manufacturer of disc separators in China since 1954

Technical Specifications

Drive	gear / belt
Bowl speed	4000 - 10000 rpm
Centrifugal force	> 10,000 g
Bowl volume	8 - 300 L
Bowl weight	50-15000 Kg
Solids holding space	2 - 50 L
Inlet pressure	0-0.1 Mpa
Liquid outlet pressure	0.2-0.6 Mpa
Starting time	5 - 30 mins
Stopping time (no brakes)	> 40 mins
Product Keywords	flash separator

Huading Separator has over 60 years of tradition in mechanical separating technology. As the leading manufacturer in China, our developments serve diverse industries including beverage and dairy, oil and fat recovery, chemicals, pharmaceuticals, biotechnology, starch technology, marine engineering, energy, oil fields, and environmental technology. We develop and build customized centrifuges and complete process lines tailored to customer requirements.

Quality Standards & Certifications

JB/T 8103 standards - Chinese national standard of disc centrifuge
2006/42/EC (Machinery)
2014/35/EU (Low Voltage)
2014/30/EU (Electromagnetic Compatibility)
ISO9001-2000 Quality Management System

Centrifugal Separation Technology

The disc stack separator separates solids and one or two liquid phases in a single continuous process using extremely high centrifugal forces. Denser solids are forced outward against the rotating bowl wall, while less dense liquid phases form concentric inner layers. The interface position between liquid phases can be adjusted for maximum efficiency. Special disc plates provide additional surface settling area, dramatically speeding up separation. This configuration enables continuous separation of various solids from one or two liquids, with solids removal available continuously, intermittently, or manually based on application requirements.

2-Phase Separation Disc Stack Centrifuge

Separation occurs inside a rotating bowl where feed is introduced via a stationary inlet pipe and accelerated in the distributor before entering the disc stack. Liquid-solids separation happens between discs, with liquid moving through the disc stack to the center and pumped out via a built-in paring disc. Solids collect in the periphery and discharge intermittently through a hydraulic system that opens solids ports at preset intervals.

3-Phase Separation Disc Stack Centrifuge

Suspension enters the separator bowl through a feeding pipe into the disc stack. Heavy phase and sludge move toward the bowl periphery while light phase flows toward the center for pumping and further processing. Heavy phase is led over a top disc into a chamber for pumping out. Solids collect in the sludge space and discharge intermittently via hydraulic system, exiting the centrifuge through a cyclone.

Self-cleaning disc stack centrifuges are available as purifiers (for solids and two liquid phases) or clarifiers (for solids and one liquid phase).

Why Choose Huading Separator

Our Advantages

60+ Years

Experience developing and manufacturing disc stack centrifuges

40,000+

Installations in over 50 countries since 1954

100+

Centrifuge models to satisfy diverse industry demands

Global

References from leading food and pharmaceutical manufacturers
