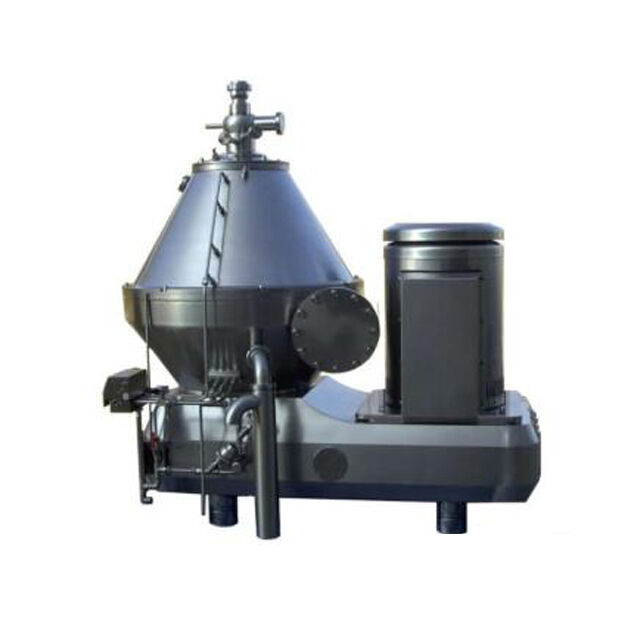

Large Scale Industrial Centrifuge 4000r/Min - 10000r/Min Centrifuge Separator Machine

Product Details

Place of Origin: Jiangsu, China

Brand Name: HUADING

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $25,000-26,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Large Scale Industrial Centrifuge, Industrial Centrifuge  4000r/min, 10000r/min centrifuge separator machine


Product Type:	Other	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	Bowl
Voltage:	110 - 415V	Power(w):	4 - 90 Kw
Dimension(lwh):	200012001800mm	Warranty:	1 Year
Key Selling Points:	/	After-sales Service Provided:	Overseas Service Center Available
Drive:	Gear / Belt	Bowl Speed:	4000 - 10000 Rpm
Centrifugal Force:	> 10,000 G	Bowl Volume:	8 - 300 L
Bowl Weight:	50-15000 Kg	Solids Holding Space:	2 - 50 L
Inlet Pressure:	0-0.1 Mpa	Liquid Outlet Pressure:	0.2-0.6 Mpa
Starting Time:	5 - 30 Mins	Type:	Centrifuge
Condition:	New	Marketing Type:	New Product 2020
Warranty Of Core Components:	5 Years	Showroom Location:	None
Weight:	1200	Applicable Industries:	Other

Product Type:	Other
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	Bowl
Voltage:	110 - 415V
Power(w):	4 - 90 Kw
Dimension(lwh):	200012001800mm
Warranty:	1 Year
Key Selling Points:	/
After-sales Service Provided:	Overseas Service Center Available
Drive:	Gear / Belt
Bowl Speed:	4000 - 10000 Rpm
Centrifugal Force:	> 10,000 G
Bowl Volume:	8 - 300 L
Bowl Weight:	50-15000 Kg
Solids Holding Space:	2 - 50 L
Inlet Pressure:	0-0.1 Mpa
Liquid Outlet Pressure:	0.2-0.6 Mpa
Starting Time:	5 - 30 Mins
Type:	Centrifuge
Condition:	New
Marketing Type:	New Product 2020
Warranty Of Core Components:	5 Years
Showroom Location:	None
Weight:	1200
Applicable Industries:	Other

Large Scale Industrial Centrifuge 4000r/Min - 10000r/Min Centrifuge Separator Machine

Large Scale Industrial Centrifuge 4000-10000r/Min

As China's leading disc separator manufacturer since 1954, Huading Separator delivers high-performance industrial centrifuges with factory-direct pricing.

Technical Specifications

Specification	Value
Drive	Gear / Belt
Bowl Speed	4000 - 10000 rpm
Centrifugal Force	> 10,000 g
Bowl Volume	8 - 300 L
Bowl Weight	50 - 15000 Kg
Solids Holding Space	2 - 50 L
Inlet Pressure	0 - 0.1 Mpa
Liquid Outlet Pressure	0.2 - 0.6 Mpa
Starting Time	5 - 30 mins
Stopping Time (no brakes)	> 40 mins

Company Overview

With over 60 years of tradition, Huading Separator is China's leading manufacturer in mechanical separating technology. Our centrifuges serve diverse industries including beverage and dairy processing, oil and fat recovery, chemicals, pharmaceuticals, biotechnology, starch technology, marine engineering, energy, oil fields, and environmental technology. We develop and build customized centrifuges and complete process lines tailored to customer requirements.

Quality Standards & Certifications

JB/T 8103 standards - Chinese national standard of disc centrifuge
2006/42/EC (Machinery)
2014/35/EU (Low Voltage)
2014/30/EU (Electromagnetic Compatibility)
ISO9001-2000 Quality Management System

Centrifugal Separation Technology

The disc stack separator separates solids and one or two liquid phases from each other in a single continuous process using extremely high centrifugal forces. Denser solids are forced outward against the rotating bowl wall, while less dense liquid phases form concentric inner layers. The interface position between liquid phases can be adjusted for maximum separation efficiency. The disc stack configuration dramatically accelerates separation by providing additional surface settling area, enabling continuous separation of various solids from liquids.

2-Phase Separation Disc Stack Centrifuge

Separation occurs inside a rotating bowl where feed is introduced via a stationary inlet pipe. The liquid phase moves through the disc stack to the center and is pumped out via a built-in paring disc. Solids collect in the periphery and are discharged intermittently through a hydraulic system that opens solids ports at the bowl periphery.

3-Phase Separation Disc Stack Centrifuge

Suspension enters the separator bowl through a feeding pipe into the disc stack. Heavy phase and sludge move toward the bowl periphery while light phase flows toward the center. Both phases are pumped out separately, and solids are discharged intermittently via a hydraulic system that opens solids ports at the bowl periphery.

Why Choose Huading Separator

60+ Years

Experience developing and manufacturing disc stack centrifuges since 1954

40,000+

Installations worldwide across 50+ countries

100+

Centrifuge models to satisfy diverse industry demands

Global

References from leading food and pharmaceutical manufacturers
