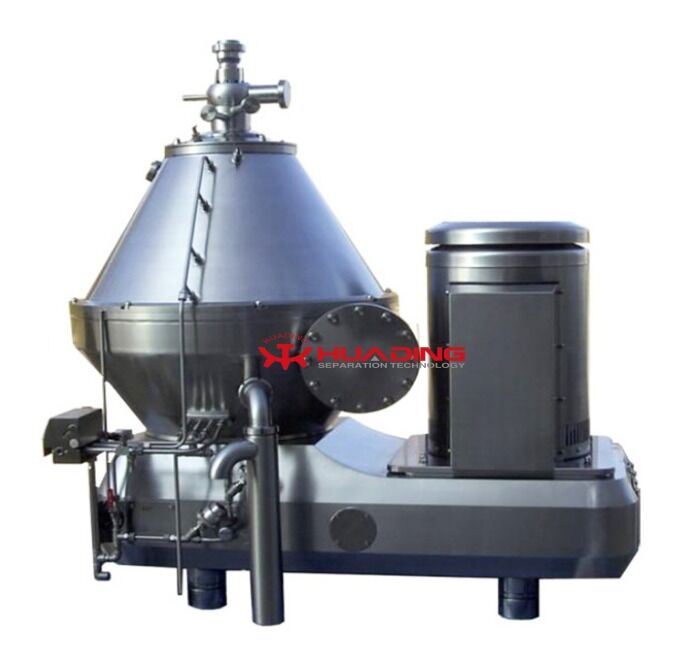

CE Juice Disc Stack Separator Disk Stack Centrifuge For Food Industry

Product Details

Place of Origin: Jiangsu, China

Brand Name: HUADING

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $30,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    CE Disc Stack Separator, Juice Disc Stack Separator, Food Industry disk stack centrifuge


Product Type:	Other	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	Bowl
Voltage:	110 - 415V	Power(w):	4 - 90 Kw
Dimension(lwh):	200012001800mm	Warranty:	1 Year
Key Selling Points:	Competitive Price	After-sales Service Provided:	Overseas Service Center Available
Drive:	Gear / Belt	Bowl Speed:	4000 - 10000 Rpm
Centrifugal Force:	> 10,000 G	Bowl Volume:	8 - 300 L
Bowl Weight:	50-15000 Kg	Solids Holding Space:	2 - 50 L
Inlet Pressure:	0-0.1 Mpa	Liquid Outlet Pressure:	0.2-0.6 Mpa
Starting Time:	5 - 30 Mins	Type:	Centrifuge
Condition:	New	Warranty Of Core Components:	5 Year
Applicable Industries:	Manufacturing Plant, Food & Beverage Factory, Energy & Mining	Showroom Location:	United Kingdom, United States, Germany
Marketing Type:	New Product 2022	Weight:	1000

Product Type:	Other
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	Bowl
Voltage:	110 - 415V
Power(w):	4 - 90 Kw
Dimension(lwh):	200012001800mm
Warranty:	1 Year
Key Selling Points:	Competitive Price
After-sales Service Provided:	Overseas Service Center Available
Drive:	Gear / Belt
Bowl Speed:	4000 - 10000 Rpm
Centrifugal Force:	> 10,000 G
Bowl Volume:	8 - 300 L
Bowl Weight:	50-15000 Kg
Solids Holding Space:	2 - 50 L
Inlet Pressure:	0-0.1 Mpa
Liquid Outlet Pressure:	0.2-0.6 Mpa
Starting Time:	5 - 30 Mins
Type:	Centrifuge
Condition:	New
Warranty Of Core Components:	5 Year
Applicable Industries:	Manufacturing Plant, Food & Beverage Factory, Energy & Mining
Showroom Location:	United Kingdom, United States, Germany
Marketing Type:	New Product 2022
Weight:	1000

CE Juice Disc Stack Separator Disk Stack Centrifuge For Food Industry

CE Certified Juice Disc Stack Centrifuge Separator

High-performance disc stack centrifuge separator specifically designed for the food industry, CE certified from China's leading manufacturer.

Technical Specifications

Drive	gear / belt
Bowl speed	4000 - 10000 rpm
Centrifugal force	> 10,000 g
Bowl volume	8 - 300 L
Bowl weight	50-15000 Kg
Solids holding space	2 - 50 L
Inlet pressure	0-0.1 Mpa
Liquid outlet pressure	0.2-0.6 Mpa
Starting time	5 - 30 mins
Stopping time (no brakes)	> 40 mins

Company Overview

Huading Separator brings over 60 years of tradition and expertise in mechanical separating technology. As China's leading manufacturer since 1954, our centrifuges serve diverse industries including beverage, dairy, oils and fats processing, chemicals, pharmaceuticals, biotechnology, starch technology, marine engineering, energy, oil fields, and environmental technology. We develop customized centrifuges and complete process lines tailored to customer requirements.

Certifications & Standards

Quality Assurance

JB/T 8103 standards - Chinese national standard of disc centrifuge
2006/42/EC (Machinery)
2014/35/EU (Low Voltage)
2014/30/EU (Electromagnetic Compatibility)
ISO9001-2000 Quality Management System

Centrifugal Separation Technology

The disc stack separator efficiently separates solids and one or two liquid phases in a continuous process using extremely high centrifugal forces. Denser solids are forced outward against the rotating bowl wall while less dense liquid phases form concentric inner layers. The interface position between phases can be adjusted for maximum separation efficiency. The specialized disc stack plates dramatically accelerate separation by providing additional surface settling area, enabling continuous separation of various solids from liquids.

2-Phase Separation Process

Separation occurs inside a rotating bowl where feed material enters via a stationary inlet pipe. After acceleration in the distributor, the material enters the disc stack where liquid-solid separation takes place. The liquid phase moves through the disc stack to the center and is pumped out via a built-in paring disc. Solids collect in the periphery and are discharged intermittently through a hydraulic system that opens solids ports at predetermined intervals.

3-Phase Separation Process

In three-phase separation, the suspension enters the separator bowl through a feeding pipe into the disc stack. The heavy phase and sludge move toward the bowl periphery while the light phase flows toward the center for pumping and further processing. Solids collect in the sludge space and discharge intermittently via a hydraulic system that opens solids ports, with collected solids exiting through a cyclone.

Why Choose Huading Separator

OUR ADVANTAGES

Huading Separator is a market leader in centrifugal separating technology with over six decades of development and manufacturing expertise.

60+

Years Experience developing and manufacturing disc stack centrifuges

40000+

Installations across 50+ countries since 1954

100+

Centrifuge models to satisfy diverse industry demands

Global

References from leading food and pharmaceutical manufacturers
