Hot Sale Titanium Centrifuge for Drying Carpets Pectin Yogurt Machine Centrifugeuse De Sel Manufacturer

titanium centrifuge for drying carpets

pectin yogurt centrifuge machine

disc stack separator with warranty

Place of Origin:

Jiangsu, China

Brand Name:

HUADING

Chat Now

Request A Quote

Product Details

Product Type:

Separation Machine

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

Bowl

Voltage:

220 - 480

Power(w):

4 - 300

Dimension(l*w*h):

1000*1500*1800

Warranty:

1 Year

Key Selling Points:

Competitive Price

Capacity:

501-1000l/h

Weight (KG):

1500

Setting Speed:

6000

Bowl Material:

EN 1.4418, 1.4462, 1.4410

Frequency Inverter:

ABB /

Bearing:

SKF

After-sales Service Provided1:

Field Installation, Commissioning And Training

After-sales Service Provided2:

Video Technical Support

After-sales Service Provided3:

Online Support

Applicable Industries1:

Manufacturing Plant

Applicable Industries2:

Food & Beverage Factory

Highlight:

titanium centrifuge for drying carpets

pectin yogurt centrifuge machine

disc stack separator with warranty

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$25,000 / set

Related Products

86-510-87836501

huading@yxhuading.com

Chat Now

Product Description

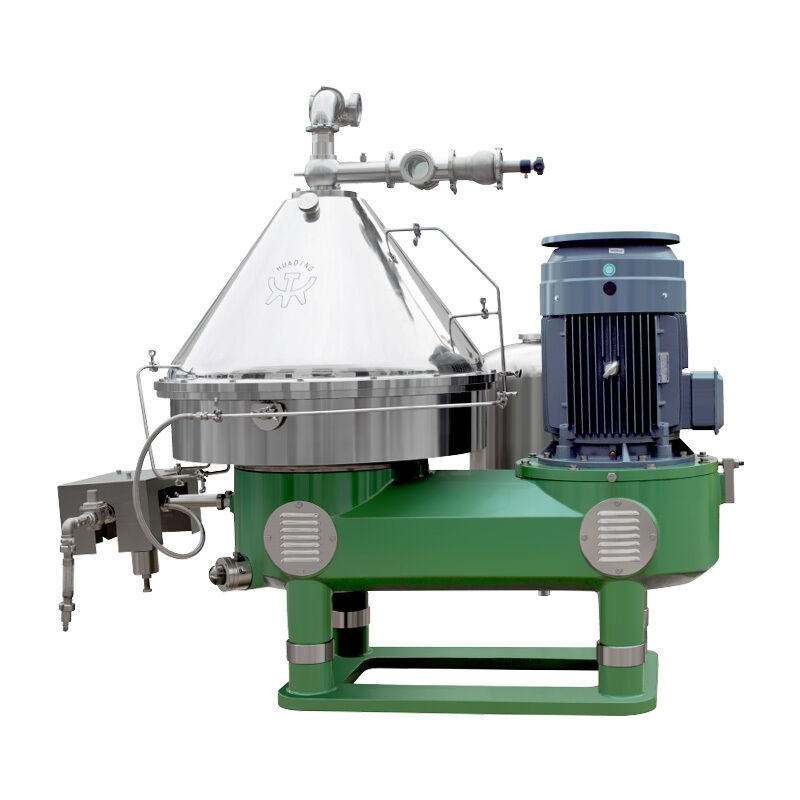

High-Performance Titanium Centrifuge for Industrial Applications

Premium disc stack separator from China's leading manufacturer with over 60 years of centrifugal separation expertise.

Technical Specifications

Component	Specification
Bowl Material	EN 1.4418, 1.4462, 1.4410
PLC
HMI
Frequency Inverter	ABB /
Bearing	SKF

Quality Certifications & Standards

ISO9001-2000 Quality Management System
JB/T502-2004 Industry Standards
One Year Warranty
Life-long Technical Service
2006/42/EC (Machinery Directive)
2014/35/EU (Low Voltage Directive)
2014/30/EU (Electromagnetic Compatibility)

Centrifugal Separation Technology

The disc stack separator efficiently separates solids and liquid phases in a continuous process using high centrifugal forces. Denser solids are forced outward against the rotating bowl wall while lighter liquid phases form concentric inner layers. The interface position between phases can be adjusted for optimal separation efficiency. Specialized disc plates provide additional surface area, dramatically accelerating the separation process for various industrial applications.

2-Phase Separation Process

Process Flow:
1. Feed introduction via stationary inlet pipe
2. Acceleration in distributor
3. Separation in disc stack
4. Liquid phase movement to center
5. Solids collection at periphery
6. Intermittent solids discharge via hydraulic system

3-Phase Separation Process

Process Flow:
1. Suspension feed through inlet tube
2. Heavy phase and sludge move to periphery
3. Light phase flows toward center
4. Separate discharge of heavy and light phases
5. Automatic intermittent solids discharge
6. Solids removal via cyclone system
