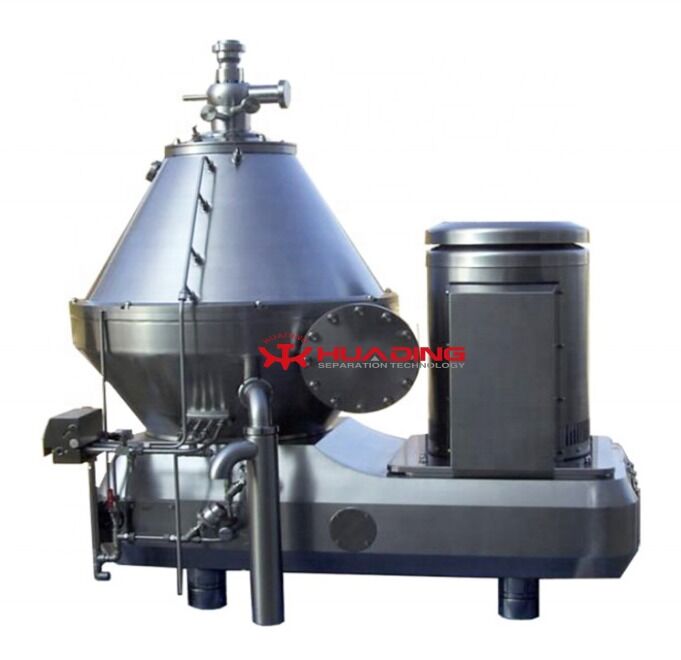

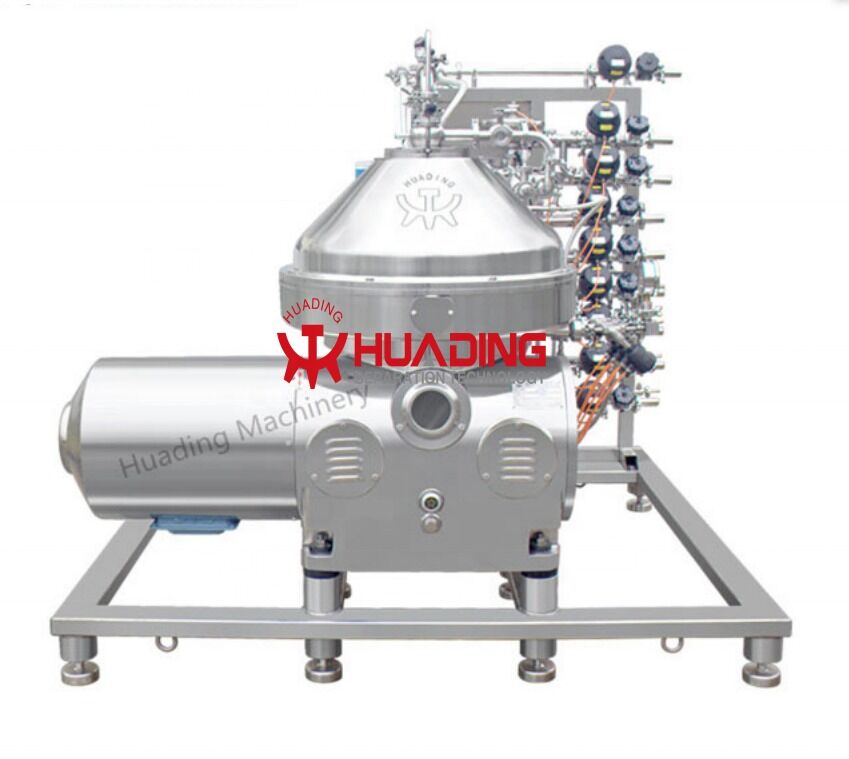

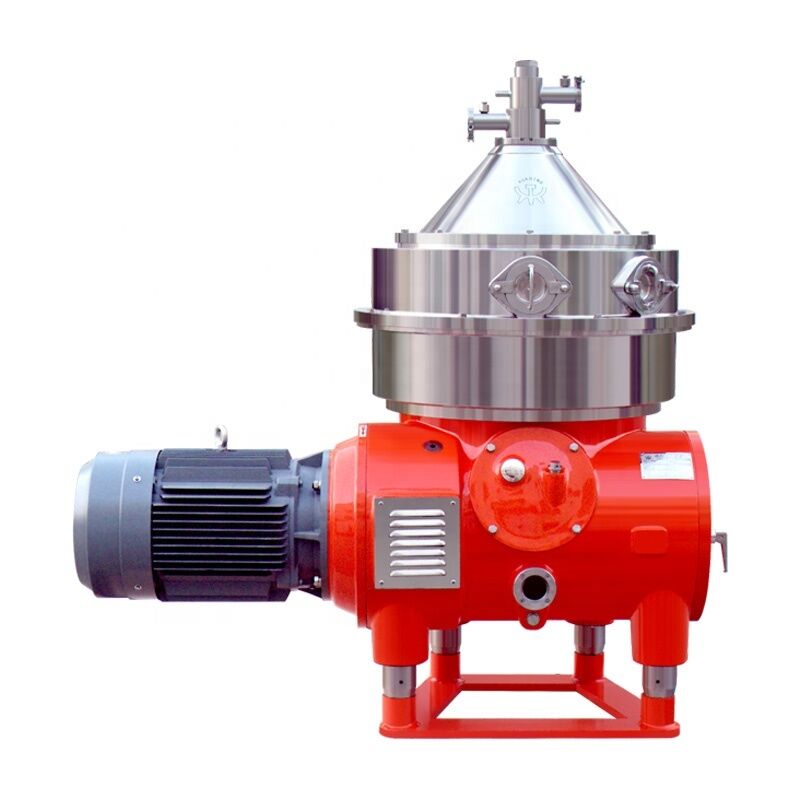

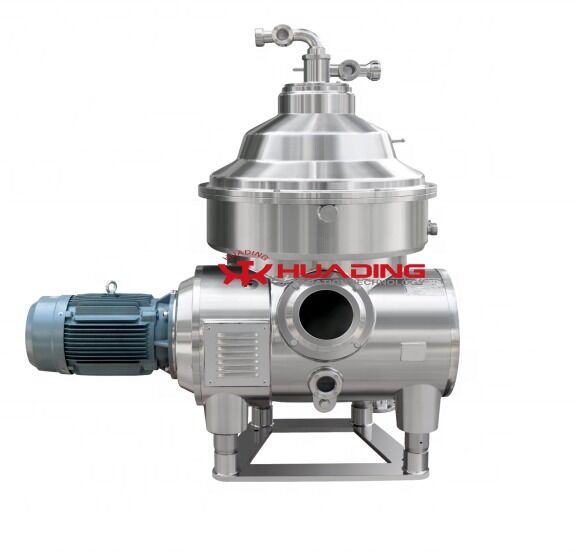

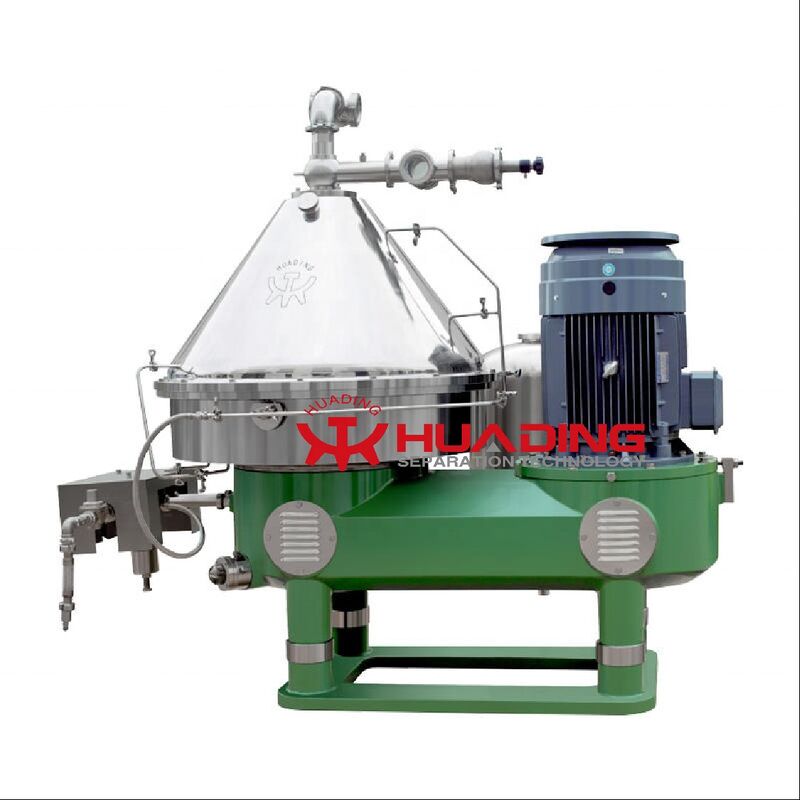

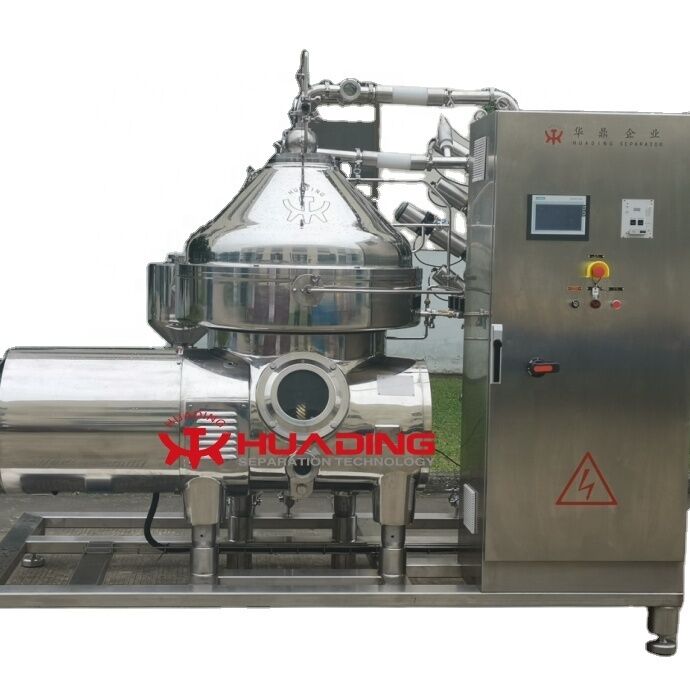

Milk Fish Oil Disc Oil Separator Continuous Flow Solid Liquid Separator Biodiesel

Product Details

Place of Origin: Jiangsu, China

Brand Name: HUADING

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $24,000-25,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    solid liquid separator biodiesel, fish oil disc oil separator, disc oil separator continuous flow


Product Type:	Separation Machine	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	PLC, Motor, Bowl
Voltage:	220 - 480	Power(w):	4 - 300
Dimension(lwh):	100015001800	Warranty:	1 Year
Key Selling Points:	Competitive Price	Bowl Material:	EN 1.4418, 1.4462, 1.4410
PLC:	SIEMENS	Frequency Inverter:	ABB / SIEMENS
Name:	Separator Machine	Keyword:	Fish Oil Centrifuge
Function:	Liquid Liquid Soild Centrifge	After-sales Service Provided:	Engineers
Capacity:	1-120 M3/h	Motor:	4kw-55kw
Material:	304 Stainless Steel	Type:	Centrifuge
Condition:	New	Warranty Of Core Components:	5 Year
Applicable Industries:	Construction Works , Energy & Mining, Farms, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Machinery Repair Shops, Manufacturing Plant, Other	Showroom Location:	Canada, Germany, United Kingdom, United States
Marketing Type:	New Product 2024	Weight:	1200

Product Type:	Separation Machine
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	PLC, Motor, Bowl
Voltage:	220 - 480
Power(w):	4 - 300
Dimension(lwh):	100015001800
Warranty:	1 Year
Key Selling Points:	Competitive Price
Bowl Material:	EN 1.4418, 1.4462, 1.4410
PLC:	SIEMENS
Frequency Inverter:	ABB / SIEMENS
Name:	Separator Machine
Keyword:	Fish Oil Centrifuge
Function:	Liquid Liquid Soild Centrifge
After-sales Service Provided:	Engineers
Capacity:	1-120 M3/h
Motor:	4kw-55kw
Material:	304 Stainless Steel
Type:	Centrifuge
Condition:	New
Warranty Of Core Components:	5 Year
Applicable Industries:	Construction Works , Energy & Mining, Farms, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Machinery Repair Shops, Manufacturing Plant, Other
Showroom Location:	Canada, Germany, United Kingdom, United States
Marketing Type:	New Product 2024
Weight:	1200

Milk Fish Oil Disc Oil Separator Continuous Flow Solid Liquid Separator Biodiesel

High-performance disc separator from Chinese leading manufacturer with over 60 years of experience in centrifugal separation technology.

Technical Specifications

Bowl Material	EN 1.4418, 1.4462, 1.4410
PLC	SIEMENS
HMI	SIEMENS
Frequency Inverter	ABB / SIEMENS
Bearing	SKF

Quality Certifications & Standards

ISO9001-2000 Quality Management System
JB/T502-2004 Standards
One Year Warranty
Life-long Service Support
2006/42/EC (Machinery Directive)
2014/35/EU (Low Voltage Directive)
2014/30/EU (Electromagnetic Compatibility)

Centrifugal Separation Technology

The disc stack separator efficiently separates solids and one or two liquid phases from each other in a single continuous process using extremely high centrifugal forces. Denser solids are forced outward against the rotating bowl wall, while less dense liquid phases form concentric inner layers. The interface position between liquid phases can be adjusted to ensure maximum separation efficiency.

Special plates (the "disc stack") provide additional surface settling area, dramatically speeding up the separation process. The specific configuration, shape, and design of these plates enable continuous separation of various solids from one or two liquids. Concentrated solids can be removed continuously, intermittently, or manually based on centrifuge type and solids volume.

2-Phase Separation Disc Stack Centrifuge

Separation occurs inside a rotating bowl where feed material is introduced from the top via a stationary inlet pipe. The liquid phase moves through the disc stack to the center and is pumped out via a built-in paring disc, while solids collect in the periphery and are discharged intermittently through a hydraulic system.

3-Phase Separation Disc Stack Centrifuge

This configuration separates heavy phase, light phase, and solids simultaneously. The heavy phase and sludge move toward the bowl periphery while the light phase flows toward the center. Solids collect in the sludge space and discharge intermittently via hydraulic system operation.

Manufacturing Excellence

Our state-of-the-art manufacturing facility ensures precision engineering and quality control for all centrifugal separation equipment.

Quality Certifications

Why Choose Huading Separator

Huading Separator is a market leader in centrifugal separation technology with over six decades of experience developing and manufacturing high-performance separation equipment.

60+

Years of Experience in centrifuge manufacturing and development

40,000+

Installations worldwide across 50+ countries

100+

Centrifuge models to meet diverse application requirements

Global

Trusted by leading food and pharmaceutical manufacturers worldwide
