Beef Tallow Oil Extractin Disc Centrifuge Separatror for Factory Use

oil disc centrifuge

oil disc stack separator

customized disc centrifuge

Place of Origin:

Jiangsu, China

Brand Name:

HUADING

Certification:

CE/ISO

Chat Now

Request A Quote

Product Details

Product Type:

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

PLC, Bearing, Motor, Gear

Voltage:

Customized

Power(w):

Customized

Dimension(l*w*h):

Depends On Models

Warranty:

1 Year

Key Selling Points:

Competitive Price

Frequency Inverter:

/ABB

Material:

SS304/316L/2205

Type:

Centrifuge

Condition:

New

Marketing Type:

New Product 2020

Warranty Of Core Components:

5 Year

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support

Applicable Industries:

Food & Beverage Factory, Farms

After Warranty Service:

Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Local Service Location:

Canada, United Kingdom, United States, Germany

Showroom Location:

Canada, United Kingdom, United States, Germany

Weight:

Depends On Models

Highlight:

oil disc centrifuge

oil disc stack separator

customized disc centrifuge

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$20,000-150,000 / set

Related Products

86-510-87836501

huading@yxhuading.com

Chat Now

Product Description

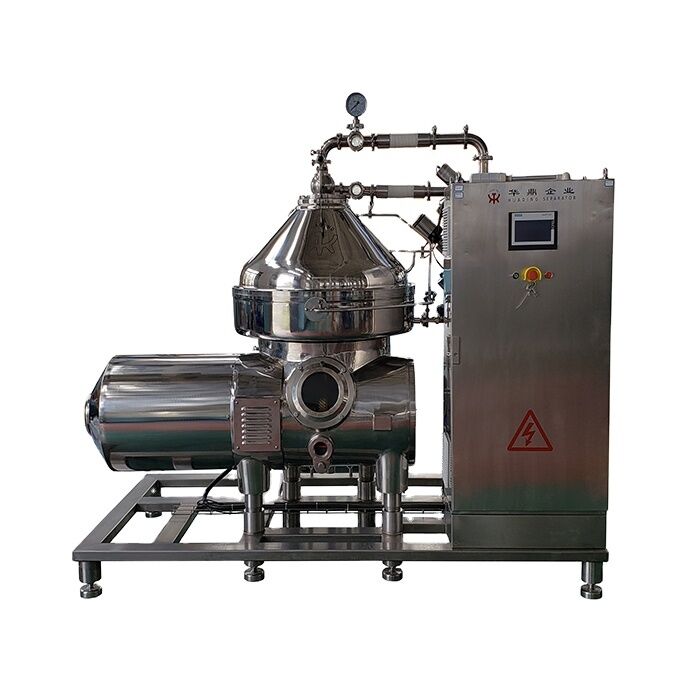

Beef Tallow Oil Extraction Disc Centrifuge Separator for Factory Use

Company Overview

Yixing Huading Machinery Co., Ltd is one of the market leaders in centrifugal separation technology in China. The company has over 60 years of experience in design and manufacturing.

Why Choose Huading Separators

60+ Years Experience

Separators and decanters from Huading are used in food, beverage, pharmaceutical, chemical, marine, oilfield, energy, mining, mechanical engineering and wastewater treatment.

40,000+ Installations

Huading separators have been installed in more than 50 countries and regions worldwide.

Innovation Tradition

More than 100 models have been created to serve diverse applications across multiple industries.

Working Principle

Bowl Component Diagram

Feeding pipe
Centripetal pump
Discharge port
Sliding piston
Small piston
Sliding piston chamber
Water room

After starting and reaching full speed, operating water enters the sealed chamber to make the piston rise and close the outlet. Material to be separated is fed into the bowl through the pipe. Due to centrifugal force, impurities gather on the bowl periphery. At intervals, operating water flows into the open chamber, forcing the sliding piston to drop down and open the outlet. Impurities are discharged outside the bowl and machine via the impurities collection set. Meanwhile, the light phase gathers in the bowl center and is discharged by the centripetal pump. The heavy phase is introduced to the centripetal pump room via disc gland and discharged out by centripetal pump, completing one cycle. Operating water then enters the sealing chamber, raises the piston, and closes the ejection port, continuing the cycle.

Manufacturing Standards

Standard Number	Description
JB/T 20139-2011	Centrifugal machinery requirements
JB/T 8051-2008	Specification for strength calculation of centrifuge bowl
GB 19815-2005	Safety requirements for centrifuges
JB/T 6418-92	Centrifugal machinery - determination of cleanliness
JB/T 7214-94	General technical specification for centrifugal machinery coating
