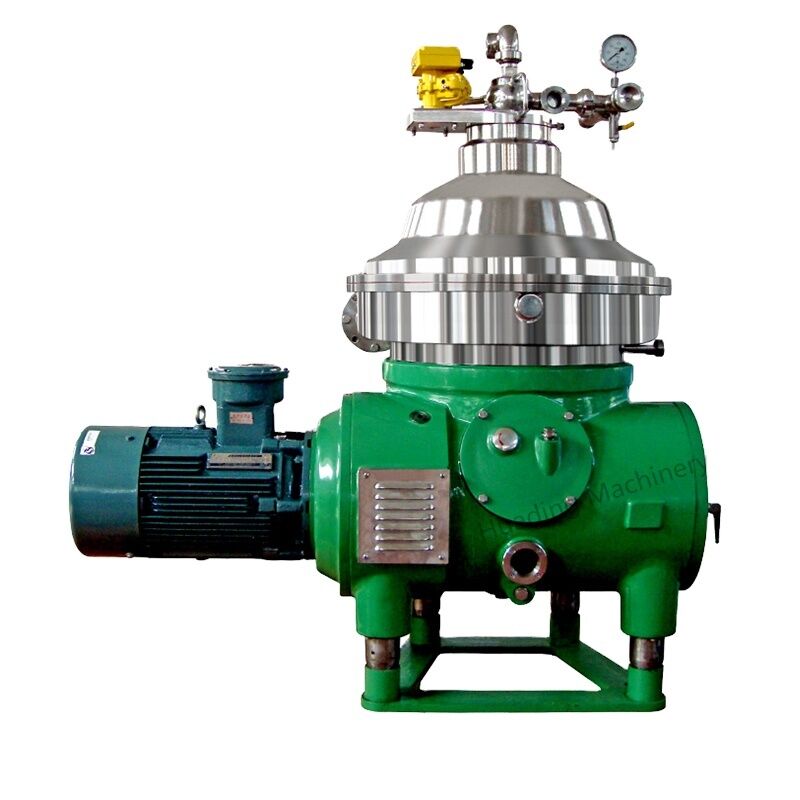

Potato Pulp Centrifuge Separator for Potato Starch Purification

Product Details

Place of Origin: Jiangsu, China

Brand Name: Huading

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $29,000-30,000 / set

Chat Now
Highlight:

6000l/h disc centrifuge

,

6000rpm disc centrifuge

,

6000l/h disc stack separator

Product Type:
Separator
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC, Engine, Bearing, Motor, Pressure Vessel, Gear, Pump
Voltage:
220~410V
Power(w):
4~55KW
Dimension(l*w*h):
/
Warranty:
1 Year
Key Selling Points:
High Productivity
Capacity:
6000L/h
Weight (KG):
1500
Setting Speed:
6000RPM
Function:
Liquid Soild Continuous Centrifge
Material:
Stainless Steel
Bearing:
SKF Bearing
After-sales Service Provided1:
Field Installation, Commissioning And Training
After-sales Service Provided2:
Video Technical Support
After-sales Service Provided3:
Online Support
After Warranty Service1:
Video Technical Support
After Warranty Service2:
Online Support
After Warranty Service3:
Spare Parts
Showroom Location:
United States & United Kingdom & Canada
Product Type:
Separator
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC, Engine, Bearing, Motor, Pressure Vessel, Gear, Pump
Voltage:
220~410V
Power(w):
4~55KW
Dimension(l*w*h):
/
Warranty:
1 Year
Key Selling Points:
High Productivity
Capacity:
6000L/h
Weight (KG):
1500
Setting Speed:
6000RPM
Function:
Liquid Soild Continuous Centrifge
Material:
Stainless Steel
Bearing:
SKF Bearing
After-sales Service Provided1:
Field Installation, Commissioning And Training
After-sales Service Provided2:
Video Technical Support
After-sales Service Provided3:
Online Support
After Warranty Service1:
Video Technical Support
After Warranty Service2:
Online Support
After Warranty Service3:
Spare Parts
Showroom Location:
United States & United Kingdom & Canada
Potato Pulp Centrifuge Separator for Potato Starch Purification
Potato Pulp Centrifuge Separator for Potato Starch Purification
Potato Pulp Centrifuge Separator for Potato Starch Purification 0 Potato Pulp Centrifuge Separator for Potato Starch Purification 1 Potato Pulp Centrifuge Separator for Potato Starch Purification 2 Potato Pulp Centrifuge Separator for Potato Starch Purification 3 Potato Pulp Centrifuge Separator for Potato Starch Purification 4
Disc separators from Huading Separator are engineered specifically for liquid-based applications in industrial processing. Utilizing centrifugal force technology, these machines efficiently separate solids from liquids and can simultaneously separate liquid mixtures while removing solid particles.
Key Features
  • All material-contact parts constructed from stainless steel for durability and hygiene
  • Continuous automatic operation minimizes labor costs with easy installation and maintenance
  • High bowl rotation speed with adjustable G-force via Variable Frequency Drive (VFD)
  • Automatic discharging with PLC control system and LED touch screen operation
  • Full-automatic vibration detection and alarm system for safety
  • High-speed operation with stability and low noise levels
  • Stable outlet pressure with large regulating sphere for easy operation
Advanced Separation Technology
The disc stack centrifuge separates solids and one or two liquid phases from each other in a single continuous process using extremely high centrifugal forces. When denser solids are subjected to these forces, they are forced outward against the rotating bowl wall, while less dense liquid phases form concentric inner layers.
The interface position where different liquid phases meet can be easily adjusted to ensure maximum separation efficiency. The disc stack provides additional surface settling area, dramatically accelerating the separation process. The specific configuration, shape, and design of these plates enable continuous separation of various solids from one or two liquids.
Concentrated solids formed by particles can be removed continuously, intermittently, or manually, depending on centrifuge type and the specific application's solids content requirements.
Industry Applications
Disc separators have become indispensable across multiple sectors including fragmentation and enzyme treatment in chemical and pharmaceutical industries, oils and fats recovery, and production of dairy products, beer, wine, and fruit and vegetable juices. Available as stand-alone machines or integrated into complete process lines, Huading Separator's extensive product line provides value-adding solutions that set industry standards for quality and customer benefit.
