Disc Centrifuge Lanolin Extraction Equipment for Lanolin Separator Machine

customized disc centrifuge

customized disc stack separator

Place of Origin:

Jiangsu, China

Brand Name:

HUADING

Chat Now

Request A Quote

Product Details

Product Type:

Separator

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

PLC, Motor

Voltage:

Customized

Power(w):

Customized

Dimension(l*w*h):

1800*2000*2000

Warranty:

1 Year

Key Selling Points:

Competitive Price

Capacity:

501-1000l/h

Weight (KG):

1500

Setting Speed:

6000

Frequency Inverter:

/ABB

Material:

SS304/316L/2205

After-sales Service Provided:

Field Installation, Commissioning And Training

After Warranty Service:

Video Technical Support

Local Service Location1:

Viet Nam

Local Service Location2:

Philippines

Local Service Location3:

Saudi Arabia

Advantage:

Cost-effective

Highlight:

customized disc centrifuge

customized disc stack separator

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$24,000-25,000 / set

Related Products

86-510-87836501

huading@yxhuading.com

Chat Now

Product Description

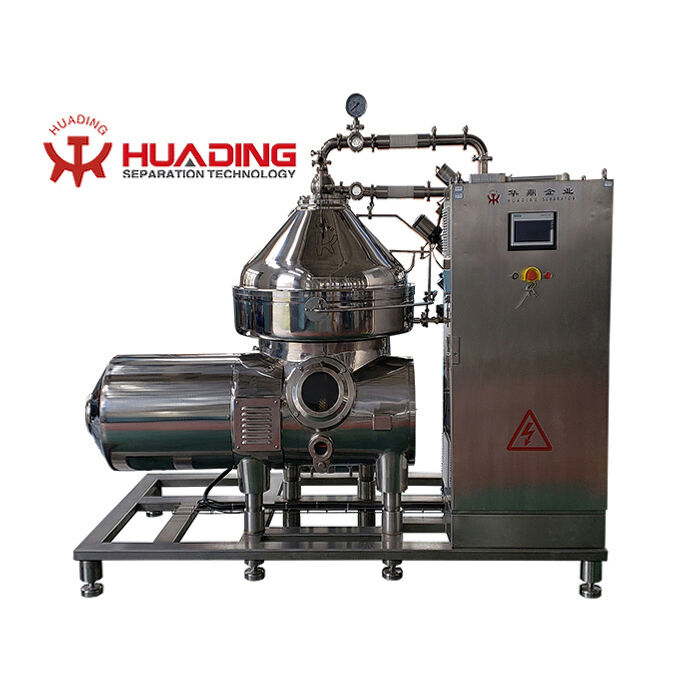

Disc Centrifuge Lanolin Extraction Equipment

Yixing Huading Machinery Co., Ltd is a leading manufacturer in centrifugal separation technology with over 60 years of experience in design and manufacturing.

Why Choose Huading Separators

60+ Years Experience

Our separators and decanters serve diverse industries including food, beverage, pharmaceutical, chemical, marine, oilfield, energy, mining, mechanical engineering and wastewater treatment.

40,000+ Installations

Huading separators have been successfully installed in more than 50 countries worldwide.

Continuous Innovation

We have developed over 100 specialized models to meet diverse industrial applications across multiple sectors.

Working Principle

Bowl Component Diagram

Feeding pipe
Centripetal pump
Discharge port
Sliding piston
Small piston
Sliding piston chamber
Water room

After starting and reaching full speed, operating water enters the sealed chamber to raise the piston and close the outlet. Material is fed into the bowl through the feeding pipe. Centrifugal force causes impurities to gather at the bowl periphery. At intervals, operating water flows into the open chamber, forcing the sliding piston down to open the discharge port. Impurities are discharged outside the bowl and machine via the impurities collection system. Meanwhile, the light phase gathers in the bowl center and is discharged by the centripetal pump, while the heavy phase is directed to the centripetal pump room via disc gland and discharged. This completes one cycle, after which operating water re-enters the sealing chamber to raise the piston and close the ejection port, repeating the process.

Main Components
