Milk Cream Electric Centrifugal Separator Dairy Separators Disc Centrifugal Machine

Product Details

Place of Origin: Jiangsu, China

Brand Name: HUADING

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $24,000-25,000 / set

Chat Now
Highlight:

6000l/h disc centrifuge

,

6000rpm disc centrifuge

,

6000l/h disc stack separator

Product Type:
Centrifuge
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC, Motor
Voltage:
Customized
Power(w):
Customized
Warranty:
1 Year
Key Selling Points:
Competitive Price
Capacity:
~6000L/h
Weight (KG):
1500
Setting Speed:
6000RPM
HMI:
SIEMENS
PLC:
SIEMENS
Frequency Inverter:
SIEMENS/ABB
Material:
SS304/316L/2205
Condition:
New
Warranty Of Core Components:
1 Year
After-sales Service Provided1:
Field Installation, Commissioning And Training
After-sales Service Provided2:
Online Support & Video Technical Support
Showroom Location:
United States & United Kingdom & Canada
Local Service Location:
Germany & Vietnam & United States
Product Type:
Centrifuge
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC, Motor
Voltage:
Customized
Power(w):
Customized
Warranty:
1 Year
Key Selling Points:
Competitive Price
Capacity:
~6000L/h
Weight (KG):
1500
Setting Speed:
6000RPM
HMI:
SIEMENS
PLC:
SIEMENS
Frequency Inverter:
SIEMENS/ABB
Material:
SS304/316L/2205
Condition:
New
Warranty Of Core Components:
1 Year
After-sales Service Provided1:
Field Installation, Commissioning And Training
After-sales Service Provided2:
Online Support & Video Technical Support
Showroom Location:
United States & United Kingdom & Canada
Local Service Location:
Germany & Vietnam & United States

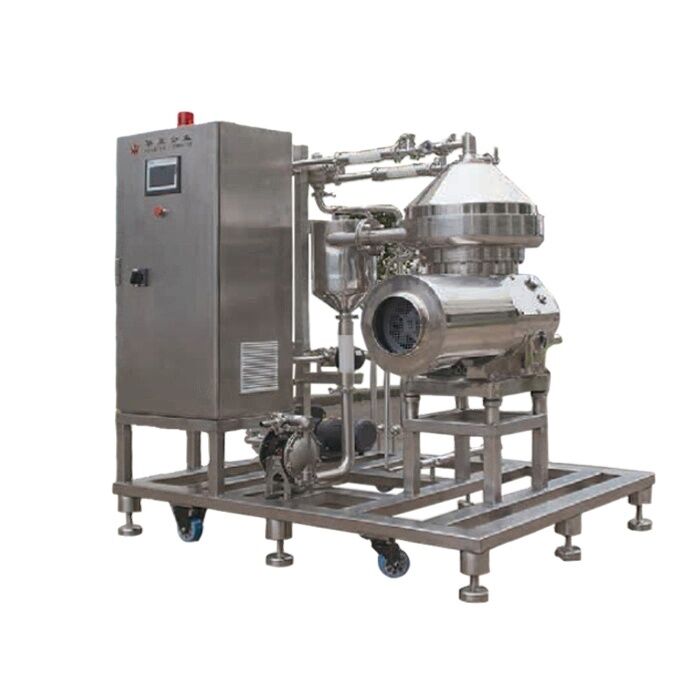

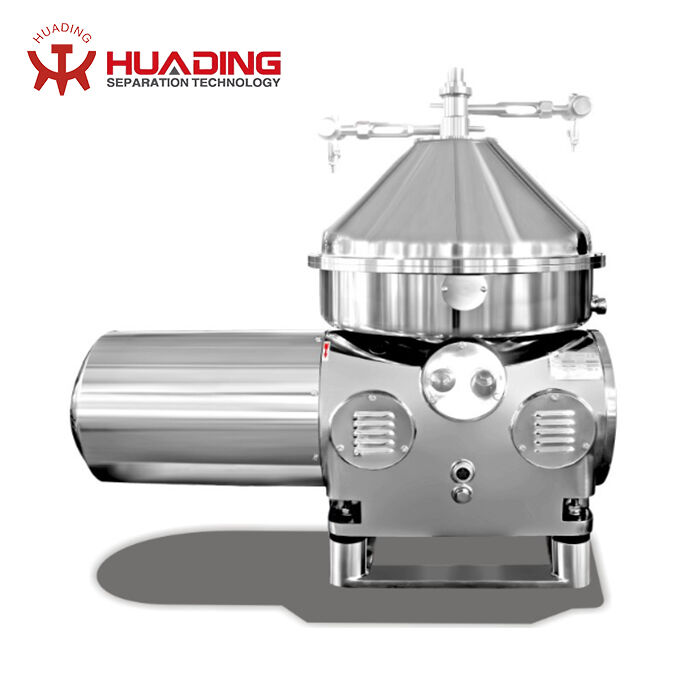

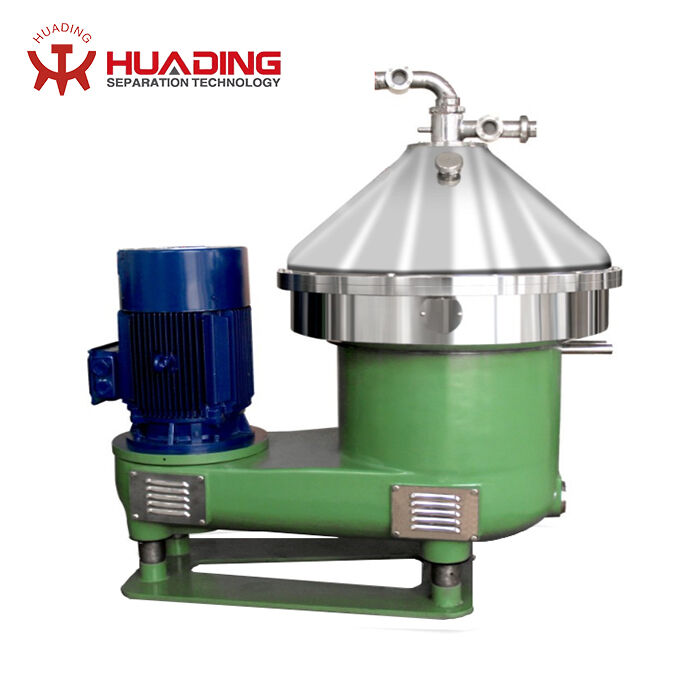

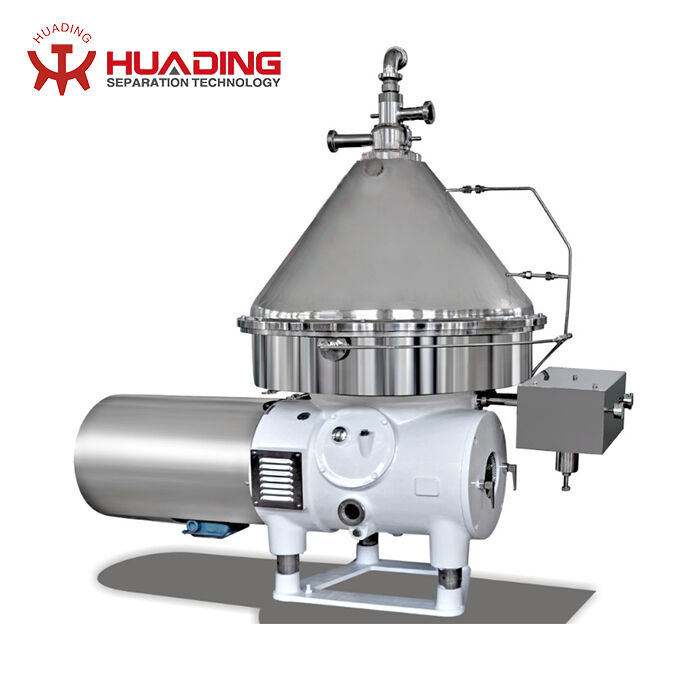

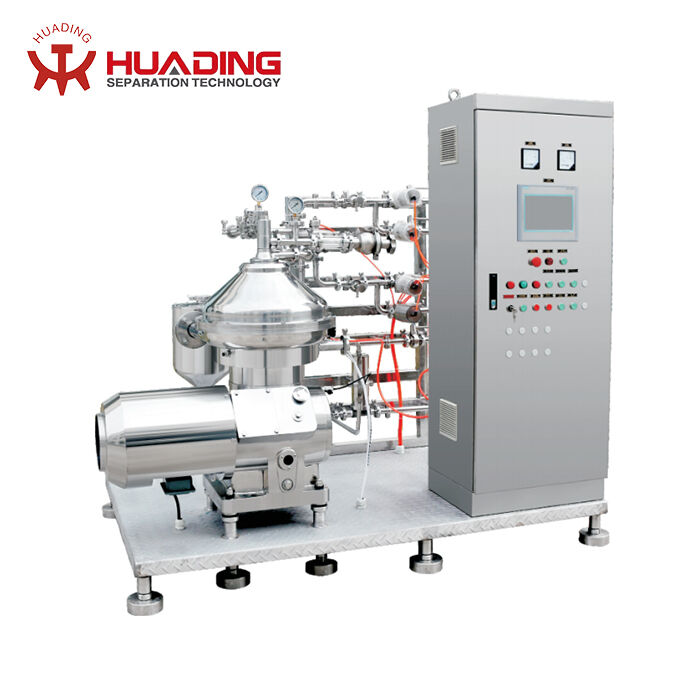

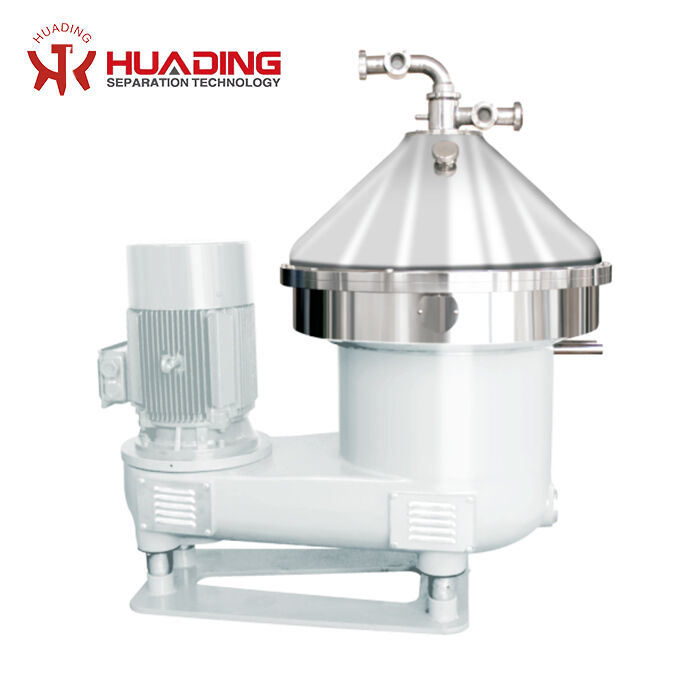

Milk Cream Electric Centrifugal Separator Dairy Separators Disc Centrifugal Machine
Milk Cream Electric Centrifugal Separator
High-performance disc centrifugal machine designed for efficient dairy separation processes.
Milk Cream Electric Centrifugal Separator Dairy Separators Disc Centrifugal Machine 0 Milk Cream Electric Centrifugal Separator Dairy Separators Disc Centrifugal Machine 1 Milk Cream Electric Centrifugal Separator Dairy Separators Disc Centrifugal Machine 2 Milk Cream Electric Centrifugal Separator Dairy Separators Disc Centrifugal Machine 3
Bowl Component Diagram
  • 1. Feeding pipe
  • 2. Centripetal pump
  • 3. Discharge port
  • 4. Sliding piston
  • 5. Small piston
  • 6. Sliding piston chamber
  • 7. Water room
Operating Process
After starting and reaching full speed, operating water enters the sealed chamber (6) causing the piston (4) to rise and close the outlet (3). The material to be separated is fed into the bowl through pipe (1). Due to centrifugal force, impurities gather on the bowl periphery. At predetermined intervals, operating water flows into the open chamber (5), forcing the sliding piston to drop and open outlet (3). Impurities discharge outside the bowl through outlet (3) and are collected externally. Simultaneously, the light phase gathers in the bowl center and discharges via centripetal pump (2), while the heavy phase is directed to the centripetal pump room through the disc gland and discharged. Operating water then re-enters the sealing chamber (6), raising piston (4) and closing ejection port (3), completing one cycle.
