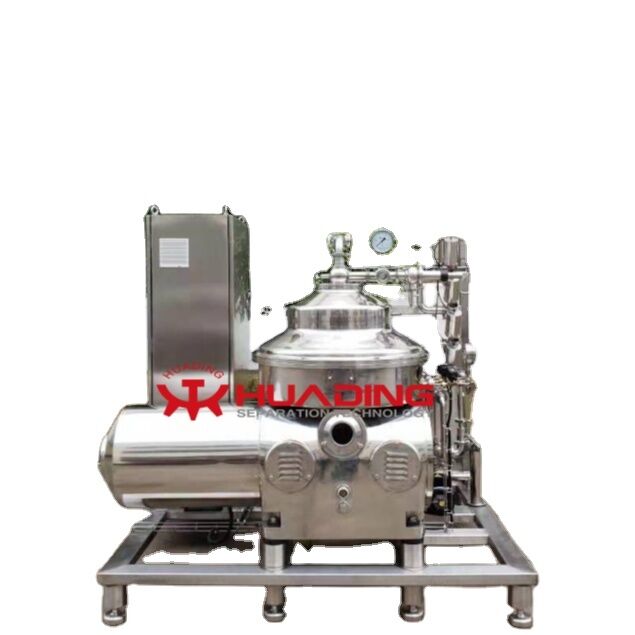

Automatic Self-Cleaning 3 Phase Liquid-Liquid-Solid Centrifugal Separator Made in China

Product Details

Place of Origin: Jiangsu, China

Brand Name: Huading

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $38,000-40,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                            automatic disc centrifuge, automatic disc stack separator


Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	PLC, Engine, Bearing, Motor, Pressure Vessel, Gear, Pump	Voltage:	220~410V
Power(w):	4~55KW	Warranty:	1 Year
Key Selling Points:	High Productivity	Function:	Liquid Soild Continuous Centrifge
Material:	Stainless Steel	Bearing:	SKF Bearing
Type:	Centrifuge	Condition:	New
Marketing Type:	Hot Product 2019	Warranty Of Core Components:	1 Year
Applicable Industries:	Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Energy & Mining	Showroom Location:	None
Weight:	1200

Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	PLC, Engine, Bearing, Motor, Pressure Vessel, Gear, Pump
Voltage:	220~410V
Power(w):	4~55KW
Warranty:	1 Year
Key Selling Points:	High Productivity
Function:	Liquid Soild Continuous Centrifge
Material:	Stainless Steel
Bearing:	SKF Bearing
Type:	Centrifuge
Condition:	New
Marketing Type:	Hot Product 2019
Warranty Of Core Components:	1 Year
Applicable Industries:	Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Energy & Mining
Showroom Location:	None
Weight:	1200

Automatic Self-Cleaning 3 Phase Liquid-Liquid-Solid Centrifugal Separator Made in China

Automatic Self-Cleaning 3 Phase Liquid-Liquid-Solid Centrifugal Separator

Huading Separator's disc separators are engineered for liquid-based applications, utilizing centrifugal force to separate substances and solids from liquids. These high-performance machines effectively separate liquid mixtures while simultaneously removing solids, making them indispensable across multiple industrial sectors.

Key Features

All material-contact parts constructed from stainless steel
Continuous automatic operation minimizes labor costs with easy installation and maintenance
High bowl rotation speed with VFD-adjustable G-force
Automatic discharging with PLC control system and LED touch screen operation
Full-automatic vibration detection and alarm system
High-speed operation with stability and low noise levels
Stable outlet pressure with large regulating sphere for easy operation

Working Principle

The disc stack centrifuge separates solids and one or two liquid phases in a single continuous process using extremely high centrifugal forces. Denser solids are forced outward against the rotating bowl wall, while less dense liquid phases form concentric inner layers.

The interface position where liquid phases meet can be easily adjusted to ensure maximum separation efficiency. The disc stack provides additional surface settling area, dramatically accelerating the separation process through specific plate configuration, shape, and design.

Concentrated solids can be removed continuously, intermittently, or manually, depending on centrifuge type and solids volume in the application.

Industry Applications

Vegetable Oil Refining

Soybean oil, sunflower seed oil, cottonseed oil, peanut oil, corn germ oil
Rice bran oil, sesame oil, linseed oil
Coconut oil, palm oil

Beverage Clarification

Fruit juice: tomato juice, apple juice, lemon juice, grape juice
Vegetable juice: Celery, cucumber, garlic
Beer, wine, coffee, tea

Animal Oil and Fats

Fish oil
Kitchen waste oil
Hogwash oil

Biodiesel Production

Separation of methyl ester, glycerin, catalyst, methanol
Washing of methyl ester
Extraction of fatty acid

Dairy Industry

Dairy clarification
Dairy skimming

Fermentation Industry

Algae: spirulina, chlorella, seaweed
Yeast: beer yeast, baker's yeast
Molasses, syrup

Plant Extraction

Tea
Rutin
Loquat
Honeysuckle

Bio-Pharmaceutical

Microbia concentration: colon bacillus, lactobacillus, bacillus
Fermentation broth clarification
Medical protein
Vaccine
Enzyme: proteolytic enzyme, hydrolase, lipase, protease

Mineral Oil Processing

Fuel oil, lubricant
Treatment of drilling slurry
Water removal of crude oil
Waste oil treatment

Chemical Industry

Boiler ash
Phosphoric acid, lye
Fuel and paint
Industry salt

Main Components

Packaging & Shipping

Company Introduction

With over 50 years of experience in centrifugal separation technology, Huading Separator has established itself as a leader in mechanical separating technology in China. Our developments serve diverse sectors including beverage and dairy industries, oils and fats recovery and processing, chemicals, pharmaceuticals, biotechnology, starch technology, marine engineering, energy, oil fields, and industrial applications.

Industry Exhibitions

Certifications
