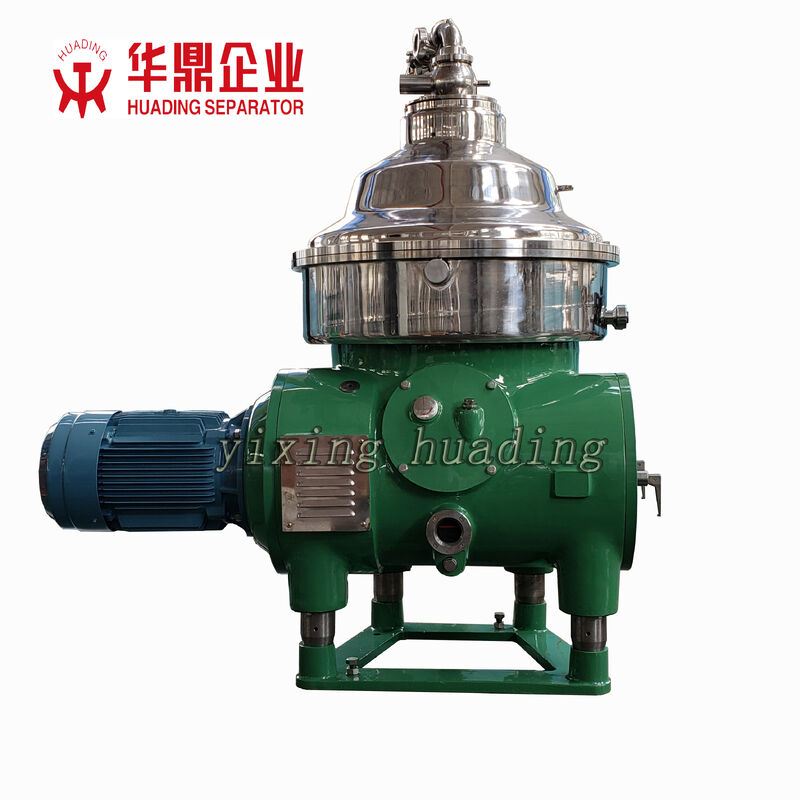

OEM 3-Phase Decanter Oil Centrifuge Separator
High-performance disc separator from China's leading manufacturer with over 60 years of experience since 1954.
Technical Specifications
| Bowl Material |
EN 1.4418, 1.4462, 1.4410 |
| PLC |
|
| HMI |
|
| Frequency Inverter |
ABB / |
| Bearing |
SKF |
Quality Certifications & Standards
- ISO9001-2000 Quality Management System
- JB/T502-2004 Industry Standards
- One Year Warranty
- Life-long Service Support
- CE Certification: 2006/42/EC (Machinery)
- CE Certification: 2014/35/EU (Low Voltage)
- CE Certification: 2014/30/EU (Electromagnetic Compatibility)
Centrifugal Separation Technology
The disc stack separator separates solids and one or two liquid phases from each other in one single continuous process using extremely high centrifugal forces. When denser solids are subjected to these forces, they are forced outward against the rotating bowl wall, while less dense liquid phases form concentric inner layers. The interface position where these liquid phases meet can be easily adjusted to ensure maximum separation efficiency.
Special plates (the "disc stack") provide additional surface settling area, dramatically speeding up the separation process. The specific configuration, shape, and design of these plates enable continuous separation of various solids from one or two liquids. Concentrated solids can be removed continuously, intermittently, or manually, depending on centrifuge type and application requirements.
2-Phase Separation Disc Stack Centrifuge
Operation Process:
1. Feed introduction via stationary inlet pipe
2. Acceleration in specially designed distributor
3. Separation between discs in disc stack
4. Liquid phase movement to center and discharge via paring disc
5. Solids collection in periphery
6. Intermittent solids discharge via hydraulic system
3-Phase Separation Disc Stack Centrifuge
Operation Process:
1. Suspension feeding through inlet tube
2. Heavy phase and sludge forced to bowl periphery
3. Light phase flows toward center for discharge
4. Heavy phase discharge via paring device
5. Automatic intermittent solids discharge via hydraulic system
6. Solids collection and removal via cyclone
Self-cleaning disc stack centrifuges are categorized as purifiers (solids and two liquid phases) or clarifiers (solids and one liquid phase), providing flexible solutions for various industrial applications.
Manufacturing Excellence
Quality Certifications
All products undergo rigorous inspection and meet CE and ISO standards with 100% quality assurance.
Why Choose Huading Separator
Huading Separator is a market leader in centrifugal separation technology with over six decades of expertise in developing and manufacturing centrifugal separation equipment.
60+ Years
Experience in developing and manufacturing disc stack centrifuges
40,000+
Centrifuges installed worldwide across 50+ countries since 1954
100+
Centrifuge models to satisfy diverse customer requirements across various industries
Global
Trusted by leading manufacturers in food and pharmaceutical industries worldwide
