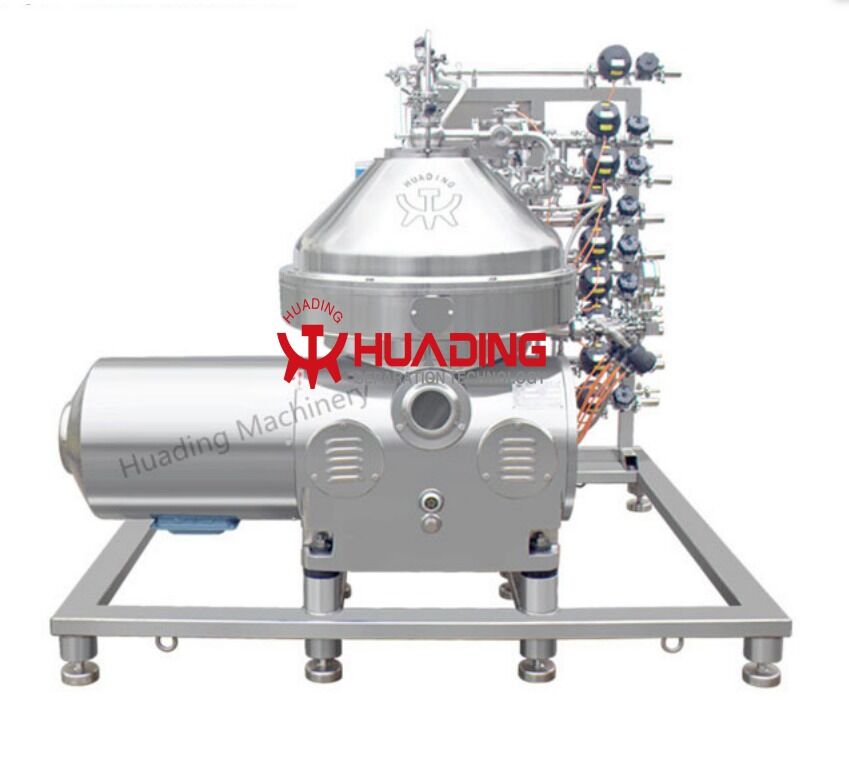

CE Biodiesel Separator High Configuration Self Cleaning Disc Centrifugal Separator

Product Details

Place of Origin: China

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $24,000-25,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                    CE Biodiesel Separator, Biodiesel Separator High Configuration, Self Cleaning disc centrifugal separator


Weight:	1380 KG	Warranty:	1 Year
Machinery Capacity:	1000 L	Core Components:	Motor, PLC
Key Selling Points:	Easy To Operate	HMI:	SIEMENS
PLC:	SIEMENS	Frequency Inverter:	SIEMENS/ABB
Material:	SS304/316L/2205	Type:	Centrifuge
Condition:	New	Warranty Of Core Components:	5 Year

Weight:	1380 KG
Warranty:	1 Year
Machinery Capacity:	1000 L
Core Components:	Motor, PLC
Key Selling Points:	Easy To Operate
HMI:	SIEMENS
PLC:	SIEMENS
Frequency Inverter:	SIEMENS/ABB
Material:	SS304/316L/2205
Type:	Centrifuge
Condition:	New
Warranty Of Core Components:	5 Year

CE Biodiesel Separator High Configuration Self Cleaning Disc Centrifugal Separator

CE Certificated High Configuration Self-cleaning Biodiesel Disc Centrifugal Separator

Company Overview

Yixing Huading Machinery Co., Ltd is one of the market leaders in the field of centrifugal separation technology in China. The company has over 60 years of experience in the design and manufacturing of separation equipment.

Why Choose Huading Separators

60+ Years Experience: Separators and decanters from Huading are used in food, beverage, pharmaceutical, chemical, marine, oilfield, energy, mining, mechanical engineering and wastewater treatment industries.
40,000+ Installations: Huading separators have been installed in more than 50 countries and regions worldwide.
Innovation Tradition: More than 100 models have been created to serve diverse applications across multiple industries.

Working Principle

Bowl Components and Operation

Feeding pipe
Centripetal pump
Discharge port
Sliding piston
Small piston
Sliding piston chamber
Water room

After starting and reaching full speed, the operating water enters the sealed chamber to make the piston rise and close the outlet. The material to be separated is fed into the bowl from the pipe. Due to centrifugal force, impurities gather on the periphery of the bowl. At preset intervals, operating water flows into the open chamber and forces the sliding piston to drop down, opening the outlet. Impurities are discharged outside the bowl and machine via the impurities collection set. Simultaneously, the light phase gathers in the center of the bowl and is discharged by the centripetal pump, while the heavy phase is introduced to the centripetal pump room via disc gland and discharged out by centripetal pump, completing one cycle. Operating water then enters the sealing chamber, raises the piston, closes the ejection port, and the cycle repeats.

Main Components

Manufacturing Standards

Standard Number	Standard Description
JB/T 20139-2011	Centrifugal machinery requirements
JB/T 8051-2008	Specification for strength calculation of centrifuge bowl
GB 19815-2005	Safety requirements for centrifuges
JB/T 6418-92	Centrifugal machinery - determination of cleanliness
JB/T 7214-94	General technical specification for centrifugal machinery coating
