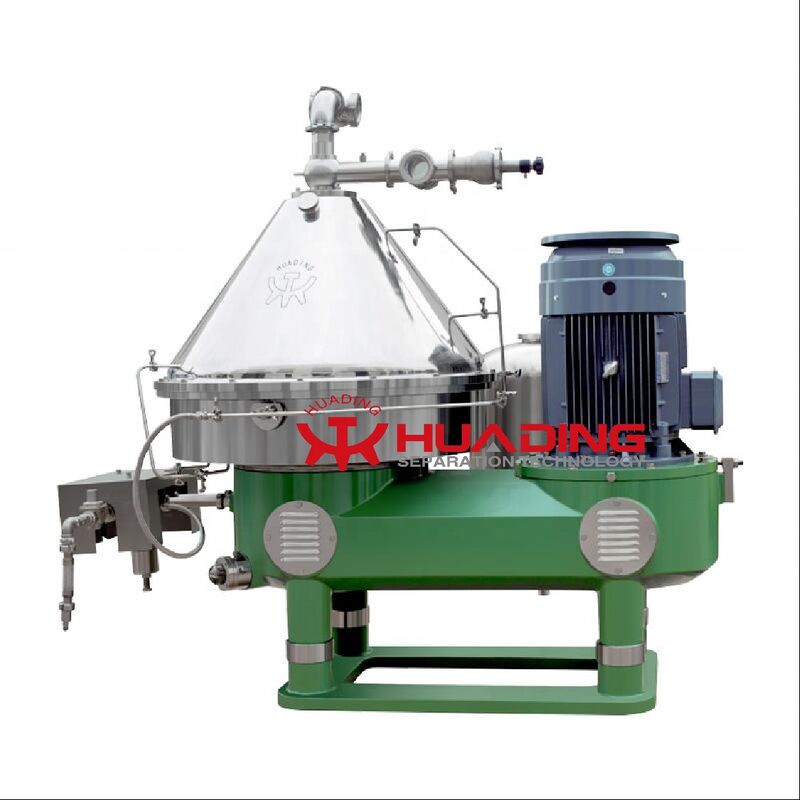

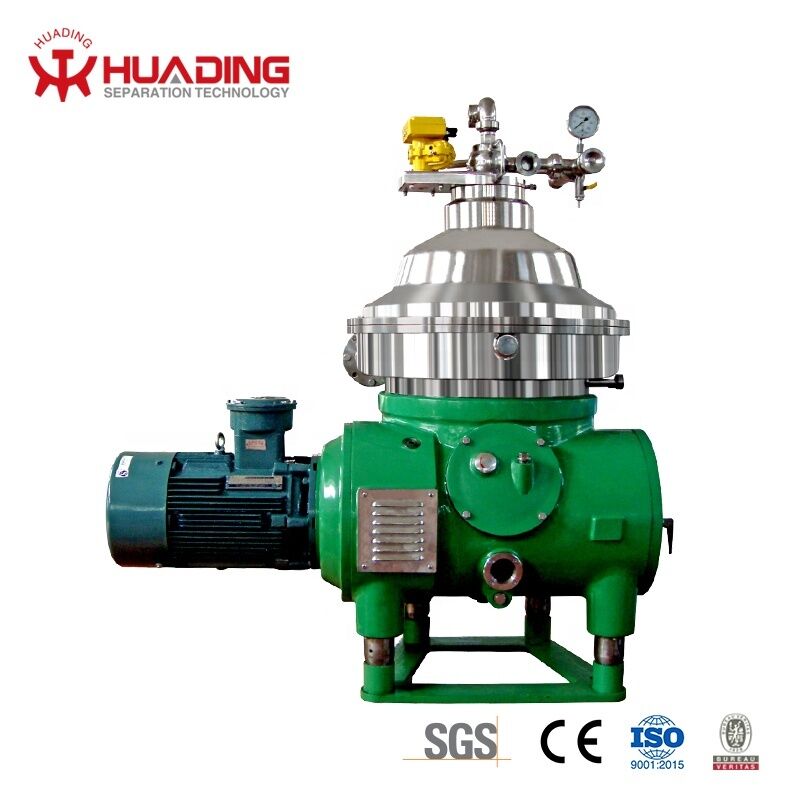

Sunflower Oil Disc Separator

Product Details

Place of Origin: Jiangsu, China

Brand Name: HUADING

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $45,000-46,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                            oil disc centrifuge, oil disc stack separator


Product Type:	Separation Machine	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	PLC, Motor, Bowl
Voltage:	220 - 480	Power(w):	18500
Dimension(lwh):	150014501550	Warranty:	1 Year
Key Selling Points:	Competitive Price	Bowl Material:	EN 1.4418, 1.4462, 1.4410
Type:	Centrifuge	Condition:	New
Warranty Of Core Components:	1 Year	Applicable Industries:	Construction Works , Energy & Mining, Farms, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Machinery Repair Shops, Manufacturing Plant, Other
Showroom Location:	Canada, Germany, United Kingdom, United States	Weight:	1760
Marketing Type:	New Product 2024

Product Type:	Separation Machine
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	PLC, Motor, Bowl
Voltage:	220 - 480
Power(w):	18500
Dimension(lwh):	150014501550
Warranty:	1 Year
Key Selling Points:	Competitive Price
Bowl Material:	EN 1.4418, 1.4462, 1.4410
Type:	Centrifuge
Condition:	New
Warranty Of Core Components:	1 Year
Applicable Industries:	Construction Works , Energy & Mining, Farms, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Machinery Repair Shops, Manufacturing Plant, Other
Showroom Location:	Canada, Germany, United Kingdom, United States
Weight:	1760
Marketing Type:	New Product 2024

Sunflower Oil Disc Separator

High Performance Disc Separator

Technical specifications from Chinese leading manufacturer since 1954

Specification	Details
Bowl material	EN 1.4418, 1.4462, 1.4410
PLC	SIEMENS
HMI	SIEMENS
Frequency inverter	ABB / SIEMENS
Bearing	SKF
Product Keywords	solid liquid separator screw press machine

Quality Standards & Certifications

Quality guarantee system of ISO9001-2000
JB/T502-2004 standards
One year warranty
Life-long service
2006/42/EC (Machinery)
2014/35/EU (Low Voltage)
2014/30/EU (Electromagnetic Compatibility)

Centrifugal Separation Technology

The disc stack separator separates solids and one or two liquid phases from each other in one single continuous process, using extremely high centrifugal forces. When the denser solids are subjected to such forces, they are forced outwards against the rotating bowl wall, while the less dense liquid phases form concentric inner layers.

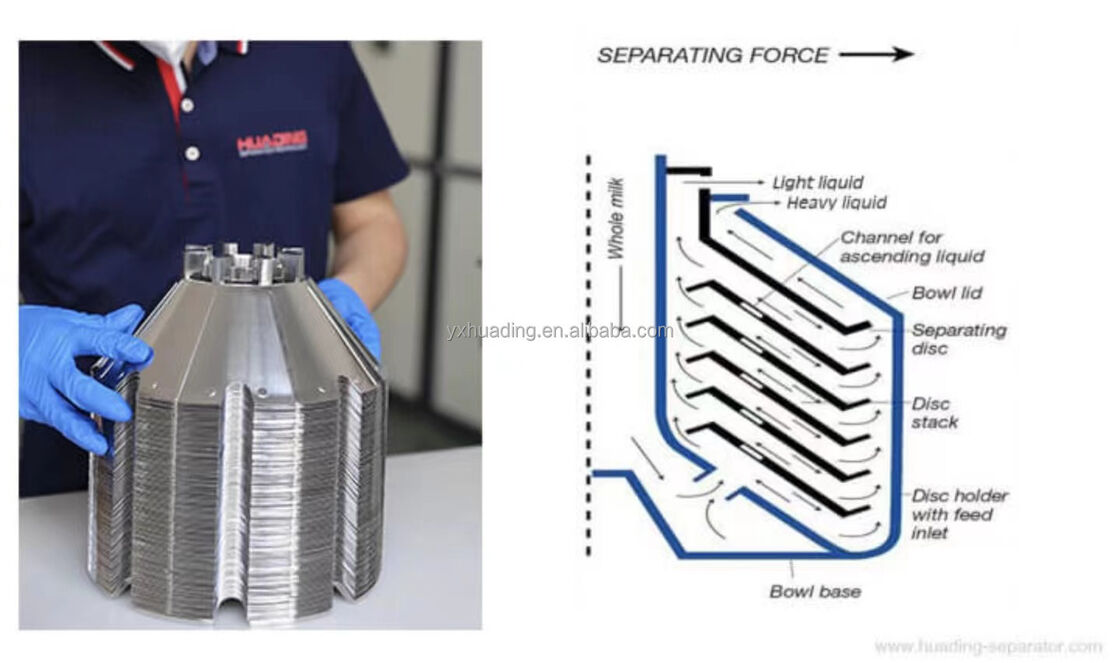

The area where these two different liquid phases meet is called the interface position. This can be easily varied to ensure that the separation takes place with maximum efficiency. Inserting special plates (the "disc stack") provides additional surface settling area, which contributes to speeding up the separation process dramatically.

2-Phase Separation Disc Stack Centrifuge

Separation takes place inside a rotating bowl. The feed is introduced to the rotating centrifuge bowl from the top via a stationary inlet pipe, and is accelerated in the distributor before entering the disc stack. The distributor is designed especially to ensure smooth acceleration of the feed liquid.

The separation of liquid-solids takes place between the discs, with the liquid phase moving through the disc stack to the centre and is led to the paring chamber, where it is pumped out of the bowl by means of a built-in paring disc. The solids is collected in the periphery, from where it is discharged intermittently into the solids collecting cover.

3-Phase Separation Disc Stack Centrifuge

The suspension to be separated is fed into the separator bowl from the top through a feeding pipe and enters the disc stack. The heavy phase and heavy sludge are forced towards the periphery of the bowl, while the light phase flows towards the centre of the bowl, from where it is pumped out for further processing.

The heavy phase is led over a top disc into a chamber where a paring device pumps it out of the separator. Solids collects in the sludge space and is discharged intermittently and automatically. The solids is collected in the frame and leaves the centrifuge via a cyclone.

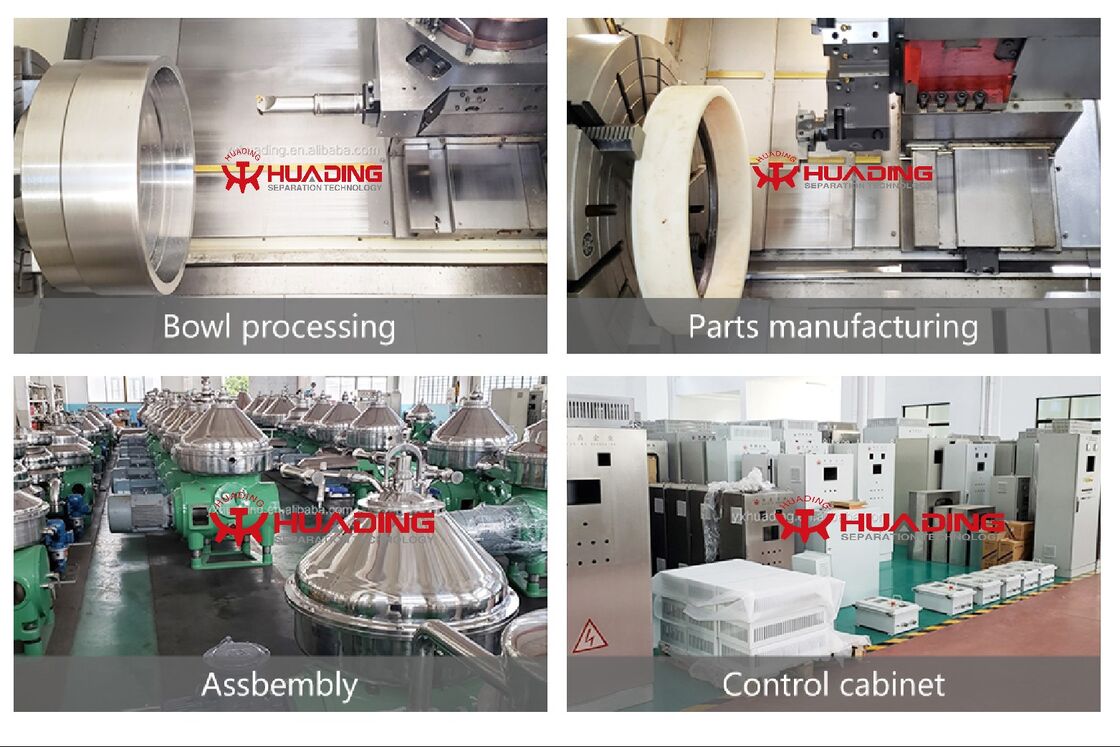

Manufacturing Excellence

Self-cleaning disc stack centrifuge separators are divided into two types: purifiers for solids and two liquid phases separation, and clarifiers for solids and one liquid phase separation.

Certifications

All our products pass inspection standards including CE and ISO with 100% quality assurance.

Why Choose Huading Separator

Huading Separator is one of the market leaders in the field of centrifugal separating technology. The company has been developing and manufacturing centrifugal separation equipment for more than 60 years.

60+ Years Experience

For more than 60 years, Huading Separator has been developing and manufacturing disc stack centrifuges.

40,000+ Installations

Since 1954, there are more than 40,000+ centrifuges from Huading Separator installed in more than 50+ countries.

100+ Centrifuge Models

To satisfy customer demand from various fields, more than 100+ centrifuge models have been launched.

Global References

Worldwide many well-known manufacturers of food and pharmaceutical rely on Huading centrifugal separation technology.
