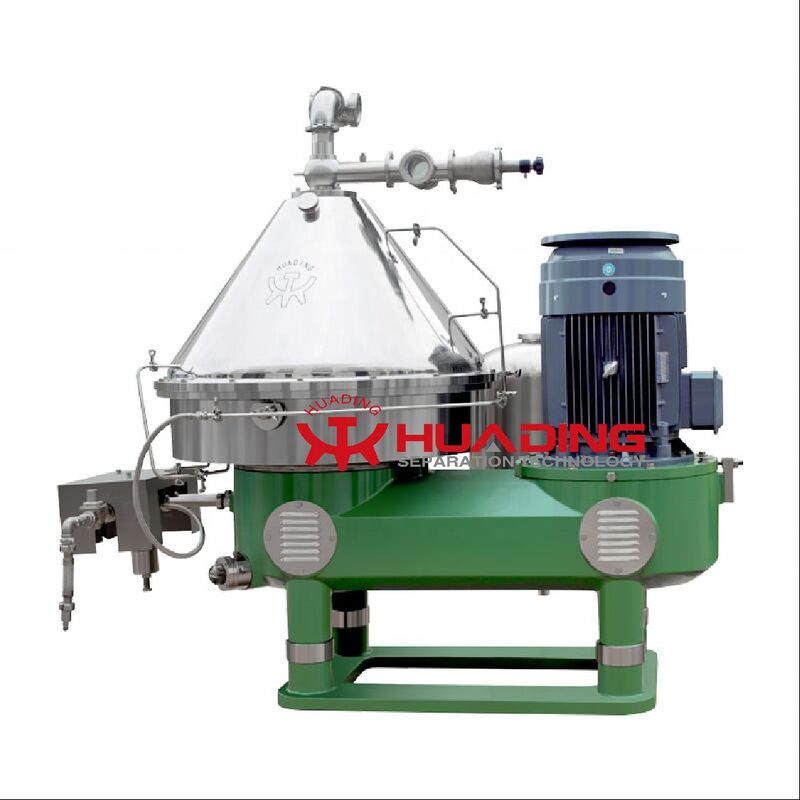

5000L Per Hour Stevia Juice Extraction Disc Separator

Product Details

Place of Origin: Jiangsu, China

Brand Name: HUADING

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $76,500 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                            juice disc centrifuge, juice disc stack separator


Product Type:	Separation Machine	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	PLC, Motor, Gear, Bowl
Voltage:	208 - 480	Power(w):	37000
Dimension(lwh):	195015001955	Warranty:	1 Year
Key Selling Points:	Competitive Price	Bowl Material:	AISI316
Type:	Centrifuge	Condition:	New
Warranty Of Core Components:	1 Year	Applicable Industries:	Construction Works , Energy & Mining, Farms, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Machinery Repair Shops, Manufacturing Plant, Other
Showroom Location:	Canada, Germany, United Kingdom, United States	Marketing Type:	New Product 2024
Weight:	2560

Product Type:	Separation Machine
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	PLC, Motor, Gear, Bowl
Voltage:	208 - 480
Power(w):	37000
Dimension(lwh):	195015001955
Warranty:	1 Year
Key Selling Points:	Competitive Price
Bowl Material:	AISI316
Type:	Centrifuge
Condition:	New
Warranty Of Core Components:	1 Year
Applicable Industries:	Construction Works , Energy & Mining, Farms, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Machinery Repair Shops, Manufacturing Plant, Other
Showroom Location:	Canada, Germany, United Kingdom, United States
Marketing Type:	New Product 2024
Weight:	2560

5000L Per Hour Stevia Juice Extraction Disc Separator

High-performance disc separator from Chinese leading manufacturer with over 60 years of experience since 1954. Original stock solid liquid separator screw press machine with Trade Assurance.

Technical Specifications

Component	Specification
Bowl Material	EN 1.4418, 1.4462, 1.4410
PLC	SIEMENS
HMI	SIEMENS
Frequency Inverter	ABB / SIEMENS
Bearing	SKF

Quality Certifications & Standards

ISO9001-2000 JB/T502-2004 CE 2006/42/EC (Machinery) CE 2014/35/EU (Low Voltage) CE 2014/30/EU (Electromagnetic Compatibility)

One year warranty with life-long service support.

Centrifugal Separation Technology

The disc stack separator separates solids and one or two liquid phases from each other in one single continuous process using extremely high centrifugal forces. Denser solids are forced outwards against the rotating bowl wall, while less dense liquid phases form concentric inner layers. The interface position between liquid phases can be adjusted to ensure maximum separation efficiency.

Special plates (the "disc stack") provide additional surface settling area, dramatically speeding up the separation process. The specific configuration, shape and design of these plates enable continuous separation of various solids from one or two liquids. Concentrated solids can be removed continuously, intermittently or manually depending on centrifuge type and solids volume.

2-Phase Separation Process

Process Flow: 1 Feed → 2 Discharge → 3 Inlet tube → 4 Disc stack → 5 Solids holding space → 6 Centripetal pump chamber → 7 Centripetal pump

Separation occurs inside a rotating bowl where feed is introduced from the top via a stationary inlet pipe. The distributor ensures smooth acceleration before entering the disc stack. Liquid-solids separation happens between discs, with liquid moving to the center and pumped out via paring disc. Solids collect in the periphery and discharge intermittently through a hydraulic system.

3-Phase Separation Process

Components: 1 Inlet tube → 2 Central bore → 3 Distributor → 4 Distributor bore → 5 Rising channels → 6 Light phase centripetal pump → 7 Heavy phase centripetal pump

Suspension enters the separator bowl from the top through a feeding pipe into the disc stack. Heavy phase and sludge move toward the bowl periphery while light phase flows toward the center. Heavy phase is led over a top disc into a chamber where a paring device pumps it out. Solids collect in the sludge space and discharge intermittently via hydraulic system.

Self-cleaning disc stack centrifuges are categorized as purifiers (solids and two liquid phases) or clarifiers (solids and one liquid phase).

Manufacturing Excellence

Quality Certification

All products pass rigorous inspection standards including CE and ISO certifications with 100% quality assurance.

Why Choose Huading Separator

Huading Separator is a market leader in centrifugal separating technology with over 60 years of experience developing and manufacturing centrifugal separation equipment.

60+ Years

Experience developing and manufacturing disc stack centrifuges

40,000+

Centrifuges installed in 50+ countries since 1954

100+

Centrifuge models to satisfy diverse customer demands

Global

References from worldwide food and pharmaceutical manufacturers
