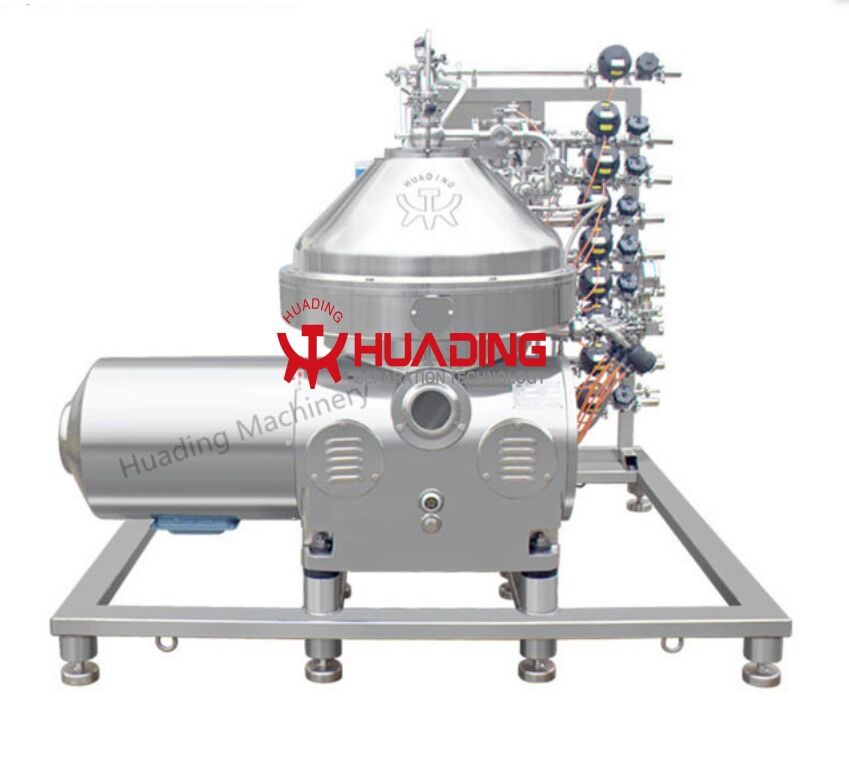

Chinese Factory Fat and Oil Removal Separator Fast Delivery

oil disc centrifuge

oil disc stack separator

Place of Origin:

Jiangsu, China

Brand Name:

HUADING

Chat Now

Request A Quote

Product Details

Product Type:

Separation Machine

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

Bowl

Voltage:

220 - 480

Power(w):

4 - 300

Dimension(l*w*h):

1000*1500*1800

Warranty:

1 Year

Key Selling Points:

Competitive Price

Bowl Material:

EN 1.4418, 1.4462, 1.4410

Type:

Centrifuge

Condition:

New

Warranty Of Core Components:

5 Years

Applicable Industries:

Construction Works , Energy & Mining, Farms, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Machinery Repair Shops, Manufacturing Plant, Other

Showroom Location:

Canada, Germany, United Kingdom, United States

Weight:

1200

Marketing Type:

New Product 2024

Highlight:

oil disc centrifuge

oil disc stack separator

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$24,000-25,000 / set

Related Products

86-510-87836501

huading@yxhuading.com

Chat Now

Product Description

High-Performance Bilge Oil Water Separator

Premium disc separator from China's leading manufacturer with over 60 years of centrifugal separation expertise

Technical Specifications

Component	Specification
Bowl Material	EN 1.4418, 1.4462, 1.4410
PLC
HMI
Frequency Inverter	ABB /
Bearing	SKF

Quality Certifications & Standards

ISO9001-2000 Quality Management System
JB/T502-2004 Industry Standards
One Year Warranty
Life-long Service Support
2006/42/EC (Machinery Directive)
2014/35/EU (Low Voltage Directive)
2014/30/EU (Electromagnetic Compatibility)

Centrifugal Separation Technology

The disc stack separator efficiently separates solids and liquid phases in a continuous process using high centrifugal forces. Denser solids are forced outward against the rotating bowl wall while lighter liquid phases form concentric inner layers. The interface position between phases is adjustable for maximum separation efficiency. Special disc plates provide additional settling surface area, dramatically accelerating the separation process.

2-Phase Separation Process

Process Flow: 1 Feed → 2 Discharge → 3 Inlet tube → 4 Disc stack → 5 Solids holding space → 6 Centripetal pump chamber → 7 Centripetal pump

Separation occurs inside a rotating bowl where feed enters via stationary inlet pipe and accelerates through the distributor into the disc stack. Liquid-solid separation happens between discs, with liquid moving to the center and pumped out via paring disc. Solids collect in the periphery and discharge intermittently through hydraulic system operation.

3-Phase Separation Process

Components: 1 Inlet tube → 2 Central bore → 3 Distributor → 4 Distributor bore → 5 Rising channels → 6 Light phase centripetal pump → 7 Heavy phase centripetal pump

Suspension enters the separator bowl through feeding pipe into the disc stack. Heavy phase and sludge move toward bowl periphery while light phase flows toward center for pumping. Heavy phase is directed over top disc into chamber for pumping. Solids collect in sludge space and discharge automatically via hydraulic system.
