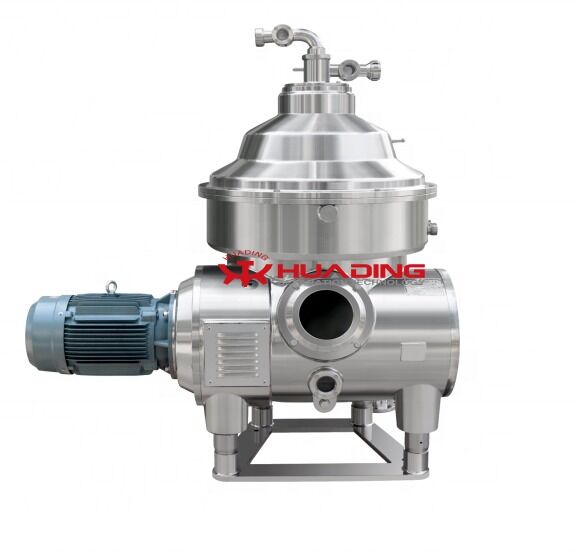

Customized Fish Oil Extraction Centrifuge of CE Standard

The leading manufacturer of disc separator in China, since 1954

Huading Separator can look back on more than 60 years of tradition. Today, the company is the leading manufacturer in mechanical separating technology in China. Its developments are used in a wide range of areas - in the beverage and dairy industries, in recovering and processing oils and fats, as well as in chemicals, pharmaceuticals, biotechnology and starch technology. Other applications include marine engineering, energy, oil fields and industry. The ecological dimension is particularly noticeable in the field of environmental technology. Based on this extensive experience over many years, Huading Separator develops and builds customized centrifuges. If required by the customer, we can also supply entire process lines, incorporating all the components.

The disc stack separator separates solids and one or two liquid phases from each other in one single continuous process, using extremely high centrifugal forces. When the denser solids are subjected to such forces, they are forced outwards against the rotating bowl wall, while the less dense liquid phases form concentric inner layers. The area where these two different liquid phases meet is called the interface position. This can be easily varied in order to ensure that the separation takes place with maximum efficiency. Inserting special plates (the "disc stack") provides additional surface settling area, which contributes to speeding up the separation process dramatically. It is the particular configuration, shape and design of these plates that make it possible for a disc stack centrifuge to undertake the continuous separation of a wide range of different solids from either one or two liquids. The concentrated solids phase formed by the particles can be removed continuously, intermittently or manually, depending on centrifuge type and the amount of solids involved in the specific application.

Process Flow: 1 Feed → 2 Discharge → 3 Inlet tube → 4 Disc stack → 5 Solids holding space → 6 Centripetal pump chamber → 7 Centripetal pump

Separation takes place inside a rotating bowl. The feed is introduced to the rotating centrifuge bowl from the top via a stationary inlet pipe, and is accelerated in the distributor, before entering the disc stack. The distributor is designed especially to ensure smooth acceleration of the feed liquid. The separation of liquid-solids takes place between the discs, with the liquid phase moving through the disc stack to the centre and is led to the paring chamber, where it is pumped out of the bowl by means of a built-in paring disc. The solids is collected in the periphery, from where it is discharged intermittently into the solids collecting cover. The solids discharge is achieved by a hydraulic system which at pre-set suitable intervals forces the sliding piston to drop down and thus opening the solids ports at the bowl periphery.

Process Flow: 1 Inlet tube → 2 Central bore → 3 Distributor → 4 Distributor bore → 5 Rising channels → 6 light phase centripetal pump → 7 heavy phase centripetal pump

The suspension to be separated is fed into the separator bowl from the top through a feeding pipe and enters the disc stack. The heavy phase and heavy sludge are forced towards the periphery of the bowl, while the light phase flows towards the centre of the bowl, from where it is pumped out for further processing. The heavy phase is led over a top disc into a chamber where a paring device pumps it out of the separator. Solids collects in the sludge space and is discharged intermittently and automatically. The discharge is achieved by a hydraulic system, which at preset suitable intervals forces the sliding piston to drop down, thus opening the solids ports at the bowl periphery. The solids is collected in the frame, and leaves the centrifuge via a cyclone.

Usually, self-cleaning disc stack centrifuge separator is divided into two types. One is used for solids and two liquid phases from each other in one single continuous process, it is so called purifier. The other is used for solids and one liquid phase from each other, it is so called clarifier.

Huading Separator is one of the market leaders in the field of centrifugal separating technology. The company has been developing and manufacturing centrifugal separation equipment for more than 60 years.

PACKAGE: Standard export carton packing.

DELIVERY TIME: 30-90 days after confirming order, detail delivery date should be decided according to production season and order quantity.
