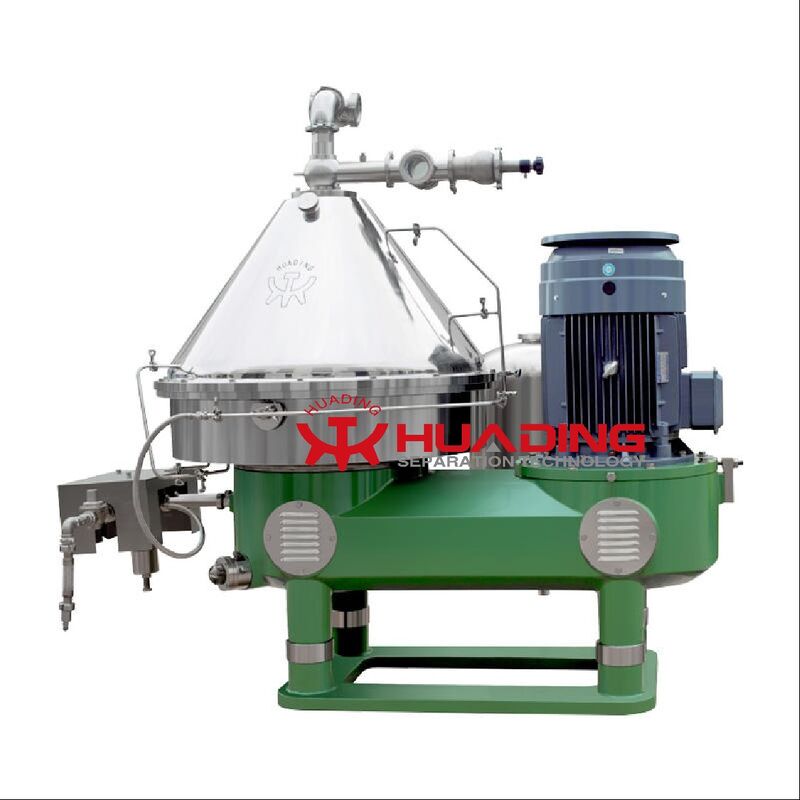

Customized Juice Clarification Disc Centrifuge with CE Standard

Huading Separator has over 60 years of tradition in mechanical separating technology and is the leading manufacturer in China. Our centrifuges serve diverse industries including beverage, dairy, oils and fats processing, chemicals, pharmaceuticals, biotechnology, starch technology, marine engineering, energy, oil fields, and environmental technology. We develop customized centrifuges and complete process lines tailored to customer requirements.

• JB/T 8103 standards - Chinese national standard of disc centrifuge
• 2006/42/EC (Machinery)
• 2014/35/EU (Low Voltage)
• 2014/30/EU (Electromagnetic Compatibility)
• Quality management system of ISO9001-2000

The disc stack separator separates solids and one or two liquid phases from each other in one single continuous process using extremely high centrifugal forces. Denser solids are forced outward against the rotating bowl wall, while less dense liquid phases form concentric inner layers. The interface position between phases can be adjusted for maximum separation efficiency.

Special disc plates provide additional surface settling area, dramatically speeding up the separation process. The specific configuration, shape, and design of these plates enable continuous separation of various solids from one or two liquids. Solids can be removed continuously, intermittently, or manually depending on centrifuge type and application requirements.

Separation occurs inside a rotating bowl where feed material is introduced from the top via a stationary inlet pipe. After acceleration in the distributor, the material enters the disc stack where liquid-solid separation occurs. The liquid phase moves through the disc stack to the center and is pumped out via a built-in paring disc, while solids collect in the periphery and are discharged intermittently through a hydraulic system.

In three-phase separation, the suspension enters the separator bowl from the top through a feeding pipe. The heavy phase and heavy sludge move toward the bowl periphery, while the light phase flows toward the center for pumping. Heavy phase is led over a top disc into a chamber where a paring device pumps it out. Solids collect in the sludge space and discharge intermittently via hydraulic system.

Package: Standard export carton packing

Delivery Time: 30-90 days after order confirmation, with exact delivery date determined by production season and order quantity
