Innovative Solid Bowl Decanter Centrifuge From Technology Leader, Since 1954

Product Details

Place of Origin: Jiangsu, China

Brand Name: HUADING

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $8,000-20,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    mining decanter centrifuge, mining centrifuge equipment


Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	PLC, Bearing, Motor, Gear, Pump	Voltage:	220/ 380 / 415
Power(w):	5.5-132	Dimension(lwh):	131.5
Warranty:	1 Year	Key Selling Points:	Easy To Operate
After-sales Service Provided:	Field Installation, Commissioning And Training	Type:	Centrifuge
Condition:	New	Warranty Of Core Components:	1 Year
Applicable Industries:	Food & Beverage Factory, Farms, Energy & Mining	Showroom Location:	Canada, Turkey, United Kingdom, Vietnam
Marketing Type:	Hot Product 2022	Weight:	10000

Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	PLC, Bearing, Motor, Gear, Pump
Voltage:	220/ 380 / 415
Power(w):	5.5-132
Dimension(lwh):	131.5
Warranty:	1 Year
Key Selling Points:	Easy To Operate
After-sales Service Provided:	Field Installation, Commissioning And Training
Type:	Centrifuge
Condition:	New
Warranty Of Core Components:	1 Year
Applicable Industries:	Food & Beverage Factory, Farms, Energy & Mining
Showroom Location:	Canada, Turkey, United Kingdom, Vietnam
Marketing Type:	Hot Product 2022
Weight:	10000

Innovative Solid Bowl Decanter Centrifuge From Technology Leader, Since 1954

Innovative Solid Bowl Decanter Centrifuge

Huading Separator has been a technology leader in centrifuge manufacturing since 1954, providing exceptional performance in continuous solid-liquid separation.

Wide-Ranging Performance

Our decanter centrifuges deliver exceptional performance for separating solids from liquids, enabling continuous, efficient, and controllable operation. They handle solid particles ranging from 5mm down to a few microns and can process slurries with solid content from 0.1% w/w to over 65% w/w.

Working Principle

2-Phase Separation

1. Feed
2. Liquid phase
3. Solids phase
4. Pond
5. Dry beach

The feed suspension enters through an inlet pipe into the feed zone where it's accelerated into the bowl interior. Settled solids are conveyed axially by the screw conveyor rotating at a slightly different speed than the bowl. Solids are lifted out of the pond along the dry beach and discharged through ports into the casing collection chamber, while the liquid phase flows toward the large end of the bowl and overflows adjustable plate dams.

3-Phase Separation

0. Food
1. Light liquid phase
2. Heavy liquid phase
3. Solids phase

The light liquid phase discharges through radial holes in the large end hub, while the heavy liquid phase discharges through axial holes. A separating plate prevents mixing, and liquid levels are controlled by plate dams. Solids discharge normally through standard processes.

Key Features

All product-contact parts made of stainless steel
3-phase AC motor with frequency converter for controlled torque starting
Adjustable bowl speed via VFD for optimized G-force separation
Adjustable pond depth for optimal liquid clarity and solids dryness balance
Adjustable conveying speed for process optimization
Continuous automatic operation reduces personnel costs
Highest g-force for superior solids output
Automatic differential speed adjustment via VFD
Two motor drive system
Dual belt drives for primary and secondary motors

Materials

Bowl, conveyor, inlet tube, outlets, cover, and all process-contact components are constructed from stainless steel. Discharge ports, conveyor flights, and feed zones feature erosion-resistant materials. The frame uses mild steel with epoxy enamel finish.

Wear Protection

Huading Separator provides comprehensive wear protection solutions including:

Welded hard facing or spray coating
Ceramic components
Tungsten carbide tiles
Chilled hard metal port castings
Plastic liners

Design

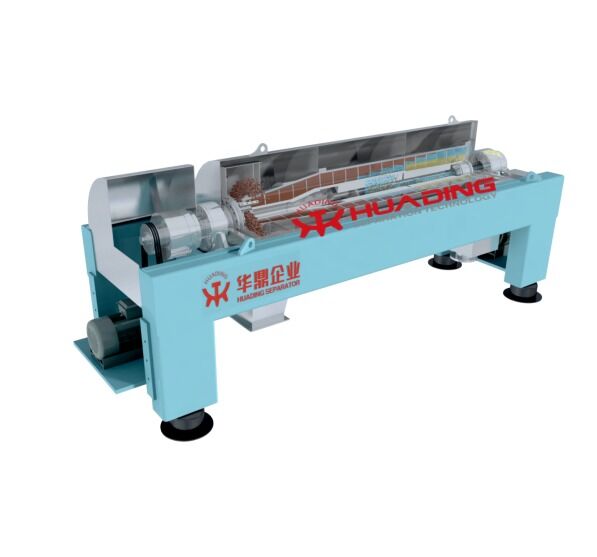

The rotating assembly mounts on a compact, in-line frame with main bearings at both ends. Vibration dampers support the frame, and the rotating components are enclosed in a casing with integrated solids and liquid outlets.

Drive System Options

One Motor Drive

Simple, cost-effective design ideal for applications with constant solids volume, easy conveying, and moderate residual water content requirements. Differential speed functions as a result of bowl speed and gear transmission.

Two Motor Drive

Enables cost-effective differential speed regulation across wide ranges. Ideal for fluctuating solids volumes, difficult conveying conditions, and stringent residual water content requirements.

Hydro Drive

Similar to two motor drive but uses a rotating hydromotor with hydraulic regulation. Enables automatic regulation as differential speed correlates with oil conveyance quantity.

Technical Specifications

With over 15 years of decanter development and manufacturing experience, Huading Separator is a leading Chinese manufacturer with extensive expertise in industrial and municipal wastewater treatment applications.

Bowl ID (mm)	Bowl Speed (rpm)	L/D	G-Force	Capacity (m³/h)	Solids Removal (m³/h)	Primary Motor (Kw)	Weight (Kg)	Dimension (mm)
250	4800~5400	3.0~5.0	2000~3500	3~5	0.4	11	760	1600×1100×850
300	4200~4600	3.0~5.0	2000~3500	3~15	0.8	11~15	1500	2470×1230×850
350	3700~4200	3.0~5.0	2000~3500	5~20	1.2	5~22	2000	2790×1300×880
400	3200~3900	3.0~4.8	2000~3500	5~30	2	18.5~30	2600	2950×1400×850
450	3000~3700	3.0~5.0	2000~3500	5~45	2.5	22~37	3200	3300×1500×920
530	2700~3450	3.0~5.0	2000~3500	10~80	5	30~55	5200	3730×1600×1100
580	2600~3300	3.0~5.0	2000~3500	10~90	6	45~75	6900	4000×1400×1600
650	2400~3100	3.0~5.0	2000~3500	20~105	8	37~90	8200	4300×1900×1350
760	2200~2900	3.0~5.0	2000~3500	30~120	12	55~135	12000	5000×2500×1500
900	1800~2600	3.0~5.0	2000~3500	40~180	16	75~160	18000	6500×2700×1500

After-Sales Service

Technical Service

Technical direction during installation and debugging
Training for operation and maintenance personnel

Training

Separator working principle and structure
Operation regulations and precautions
Machine maintenance procedures

Company Experience

Huading Separator has nearly 60 years of centrifuge development and manufacturing experience, making us a leading Chinese manufacturer with unparalleled expertise in continuous separation applications using decanter centrifuges.

For more information, please visit: huading-separator.com

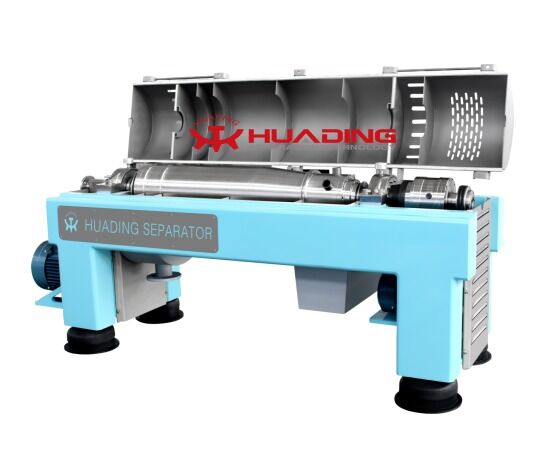

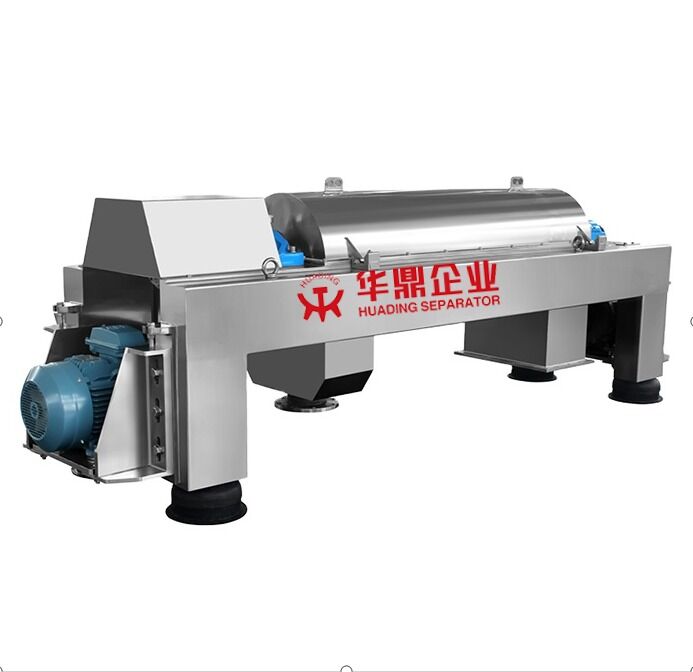

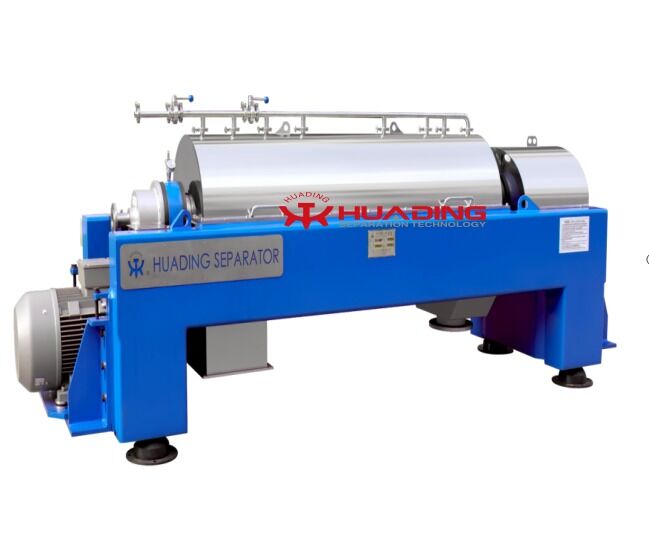

Product Gallery
