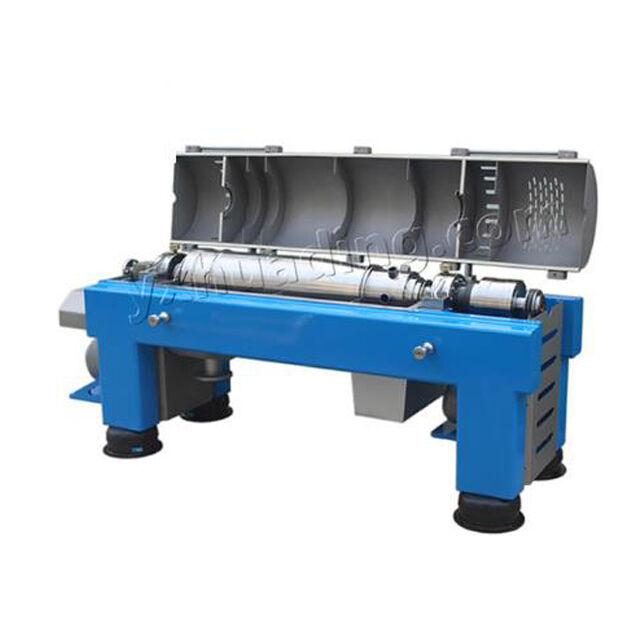

Manufacturer Decanter Centrifuge Pieralisi From China Famous Supplier

Decanter Centrifuge working principle

2 - phase separation

- 1. Feed

- 2. Liquid phase

- 3. Solids phase

- 4. Pond

- 5. Dry beach

The feed suspension is introduced through an inlet pipe into the feed zone of the conveyor where it is accelerated and directed into the interior of the bowl. The settled solids are conveyed axially towards the small end of the bowl by means of the screw conveyor, which rotates at a slightly different speed than the bowl. On the way to the discharge ports the solids are lifted out of the pond up along the dry beach. The solids are finally discharged from the bowl through the discharge ports into the collecting chamber of the casing that surrounds the bowl. From there the solids are removed by gravity through the outlet funnel. The liquid phase forming a hollow cylinder due to the centrifugal force, and flows towards the large end of the bowl. There the liquid overflows adjustable plate dams into the centrate chamber of the casing and is discharged by gravity.

3 - phase separation

- 0. Food

- 1. Light liquid phase
- 2. Heavy liquid phase

- 3. Solids phase

The light liquid phase is discharged into the casing through radial holes in the large end hub. The heavy liquid phase is discharged through axial holes in the large end hub. The liquid radius for the light liquid phase is smaller than the radius for the heavy liquid phase. The liquid level is controlled by plate dams. In order to prevent the light liquid phase from leaving the bowl through the heavy liquid phase outlet, a separating plate is placed on the inside of the large end hub. The heavy liquid phase has to pass under the separating plate before being discharged into the casing. The liquid radius for the heavy liquid phase is controlled by plate dams. The solids are discharged in the normal way.

The bowl, conveyor, inlet tube, outlets, cover and other parts in direct contact with the process media are all made of stainless steel. The discharge ports, conveyor flights and feed zone are protected with materials that are highly resistant to erosion. The frame is made of mild steel with an epoxy enamel finish.

Drive system of decanter centrifuge

One motor drive, this is a very simple design and are therefore cheap to purchase and operate. One motor drive are used when the solids volume is constant, the solids are easy to convey and the requirements regarding the residual water content of the solids are not very stringent, in other words, bowl and differential speed regulating facilities are not necessary. The input shaft of the drive is set in motion by the main motor via a second belt drive. This generates the differential speed as a function of bowl speed and gear transmission. This can be easily changed by replacing the belt pulleys.

Two motor drive, it enable the differential speed to be regulated cost-effectively under good operating conditions; wide regulating ranges are possible. The secondary motor sets the input shaft of the gear in motion and generates the differential speed as a function of bowl speed and gear transmission. The differential speed can easily be regulated by changing the motor speed. Two motor drive are used whenever solid volumes fluctuate significantly, when solids are conveyed under difficult conditions and when particularly stringent requirements are applicable with regard to residual water content.

Hydro drive,  it works in a way which is similar to that of the two motor drive. The difference is to be seen in the design.Instead of the mechanical gear, a rotating hydromotor is installed; this is supplied with hydraulic regulation by a pump unit. Because the differential speed is proportionate to the conveyed quantity of oil, automatic regulation can be provided without any problem.

Huading Separator has been developing and manufacturing decanters for decades and is one of the Chinese

leading decanter manufacturers.Huading Separator has more experience and expertise than any other decanter manufacturer when it comes to applying and using decanters for the purpose of industrial & municipal wastewater treatment.

Technical service:

- technical direction when installation, debugging

- training for operation and maintain worker

Training:

- separator working principle and structure

- operation regulation and attention

- machine maintains

Huading Separator has been developing and manufacturing centrifuges for nearly 60 years, and is one of the Chinese leading manufacturer. Huading Separator has more experience and expertise than any other separator manufacturer when it comes to applying and using decanter centrifuge for the purpose of continuous separation.
