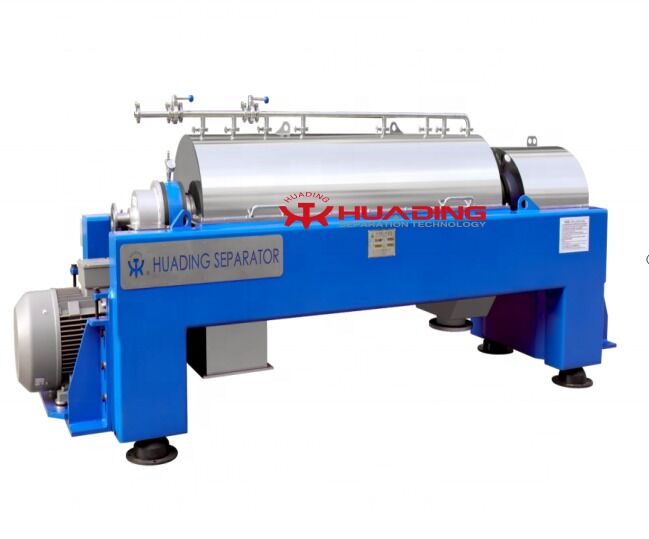

Industrial 3-Phase Fish Oil Decanter Centrifuge
Product Features
The rotating assembly of these tricanter centrifuges is mounted on a compact, in-line frame with main bearings at both ends. Vibration dampers are positioned under the frame, and the rotating components are enclosed within a protective casing featuring integrated outlets for both solids and separated liquids.
Quality Certifications
- JB/T502-2015 Chinese National Standard for Decanter Centrifuges
- 2006/42/EC Machinery Directive Compliance
- 2014/35/EU Low Voltage Directive Compliance
- 2014/30/EU Electromagnetic Compatibility Directive Compliance
- ISO9001-2000 Quality Management System Certified
Technical Specifications
| Parameter |
Specification Range |
| Bowl Diameter |
186-720mm |
| Bowl Length |
744-3000mm |
| Bowl Speed |
2000-6000rpm |
| G-Force |
1600-4000g |
| Weight |
600-8000kg |
| Primary Motor |
5.5-132kW |
| Secondary Motor |
2.2-45kW |
| Construction Material |
AISI 304/316/316L/Duplex Steel |
| Noise Level |
<88dB |
Drive System Options
Single Motor Drive
This simplified design offers cost-effective operation and maintenance. Ideal for applications with consistent solids volume, easy solids conveyance, and moderate requirements for residual water content in solids. The input shaft is driven by the main motor via a secondary belt drive, generating differential speed based on bowl speed and gear transmission. Speed adjustment is achieved through belt pulley replacement.
Dual Motor Drive
Provides cost-effective differential speed regulation with wide operating ranges. The secondary motor drives the gear input shaft, generating differential speed that can be easily regulated by adjusting motor speed. Recommended for applications with significant solids volume fluctuations, challenging solids conveyance conditions, and stringent requirements for residual water content.
Hydro Drive System
Operates similarly to dual motor drive but features a rotating hydraulic motor instead of mechanical gearing. The hydraulic motor is supplied by a pump unit with hydraulic regulation. Since differential speed is proportional to oil flow rate, automatic regulation can be implemented without complications.
Frequently Asked Questions
How can we visit your factory?
International visitors arriving at Shanghai Airport or domestic travelers arriving at Yixing Station will be provided with transportation to our facility.
How do you guarantee product quality?
With over 60 years of manufacturing experience, we implement strict quality control policies. Our advanced processing equipment ensures part accuracy, certified operators, multiple processing stages, and internationally recognized transmission and electrical components. Comprehensive testing and inspection occur throughout production.
What payment methods do you accept?
We accept various payment methods, primarily T/T (Telegraphic Transfer).
What is the product warranty period?
12 months comprehensive warranty.
How can new customers trust your company?
We have maintained a 14-year presence on with verified certifications and established credibility.
What are your shipping terms and delivery time?
Customized production requires 60-90 days for completion and delivery.
Do you offer discounts?
We strive to provide competitive pricing and will work to secure the best possible deal for your requirements.
