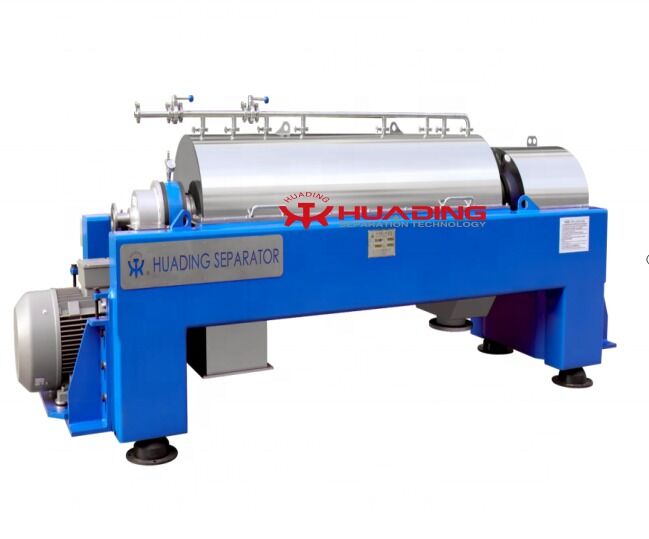

Innovative Solid Bowl 2-Phase Decanter Centrifuge
Advanced industrial decanter centrifuge technology from an established manufacturer with expertise since 1954.
Product Features
The rotating assembly of these decanter tricanter centrifuges is mounted on a compact, in-line frame with main bearings at both ends. Vibration dampers are positioned under the frame. The rotating assembly is enclosed in a casing with a cover and bottom section featuring integrated outlets for both solids and separated liquid.
Quality Certifications & Standards
- JB/T502-2015 Chinese national standard for decanter centrifuges
- 2006/42/EC Machinery Directive
- 2014/35/EU Low Voltage Directive
- 2014/30/EU Electromagnetic Compatibility Directive
- ISO9001-2000 Quality Management System
Technical Specifications
| Parameter |
Specification |
| Bowl Diameter |
186-720mm |
| Bowl Length |
744-3000mm |
| Bowl Speed |
2000-6000rpm |
| G-Force |
1600-4000g |
| Weight |
600-8000kg |
| Primary Motor |
5.5-132kW |
| Secondary Motor |
2.2-45kW |
| Material |
AISI 304/316/316L/Duplex Steel |
| Noise Level |
<88dB |
Drive System Options
Single Motor Drive
This simplified design offers cost-effective purchase and operation. Single motor drives are ideal for applications with constant solids volume, easy solids conveyance, and less stringent requirements for residual water content in solids. The input shaft is driven by the main motor via a secondary belt drive, generating differential speed as a function of bowl speed and gear transmission. Speed adjustment is easily achieved by replacing belt pulleys.
Dual Motor Drive
Dual motor drives enable cost-effective differential speed regulation across wide operating ranges. The secondary motor drives the gear input shaft, generating differential speed based on bowl speed and gear transmission. Speed regulation is easily achieved by adjusting motor speed. This system is recommended for applications with significant solids volume fluctuations, difficult solids conveyance conditions, and stringent residual water content requirements.
Hydro Drive System
The hydro drive operates similarly to the dual motor drive but features a different design. Instead of mechanical gearing, a rotating hydraulic motor is installed and supplied with regulated hydraulic fluid by a pump unit. Since differential speed is proportional to oil flow rate, automatic regulation can be easily implemented without complications.
Frequently Asked Questions
How can we visit your factory?
International visitors arriving at Shanghai Airport or domestic travelers arriving at Yixing Station will be provided with transportation to our facility.
How do you guarantee product quality?
With over 60 years of experience, we implement strict quality policies using advanced machining for part accuracy, certified operators, international brand components, and comprehensive testing throughout production.
What payment methods do you accept?
We accept most payment methods, primarily T/T bank transfers.
What is the product warranty period?
12 months warranty coverage.
How can new customers trust your company?
We have 14 years of verified presence on with all necessary certifications available for review.
What are your shipping terms and delivery time?
Each unit is custom manufactured with delivery timelines of 60-90 days.
Do you offer discounts?
We strive to provide the best possible value for all customers.
