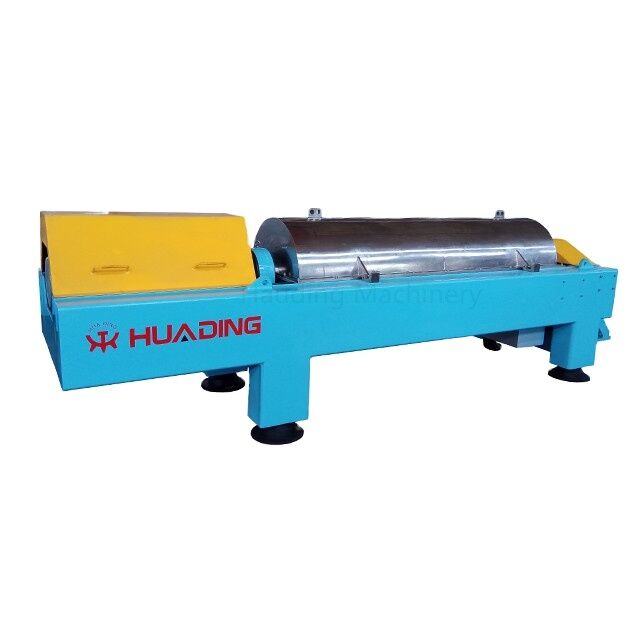

LW Horizontal Continuous Centrifuge Decanter Fruit Pulp Separation Machine

Product Details

Place of Origin: China

Brand Name: Huading

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $20,000-25,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            mining decanter centrifuge, mining centrifuge equipment


Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	Bowl	Voltage:	220/ 380 / 415
Power(w):	5.5-132	Warranty:	1 Year
Key Selling Points:	High Productivity	Application:	Liquid Liquid Solid Separation
Type:	Centrifuge	Condition:	New
Marketing Type:	New Product 2020	Warranty Of Core Components:	5 Years
Applicable Industries:	Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Energy & Mining	Showroom Location:	Argentina
Weight:	1200

Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	Bowl
Voltage:	220/ 380 / 415
Power(w):	5.5-132
Warranty:	1 Year
Key Selling Points:	High Productivity
Application:	Liquid Liquid Solid Separation
Type:	Centrifuge
Condition:	New
Marketing Type:	New Product 2020
Warranty Of Core Components:	5 Years
Applicable Industries:	Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Energy & Mining
Showroom Location:	Argentina
Weight:	1200

LW Horizontal Continuous Centrifuge Decanter Fruit Pulp Separation Machine

The LW horizontal continuous centrifuge decanter is engineered for efficient fruit pulp separation with continuous operation capabilities.

Standard Equipment

This decanter centrifuge includes a motor control center panel for operating the main drive, back drive, and feed pump. A differential speed controller maintains optimal solids balance during operation. All wear-exposed parts are protected by special metal hard facing, ceramic wear bushes, and inserts that are easily exchangeable even under field conditions. Maintenance tools and spare parts are supplied.

Key Features

All material-contact parts constructed from stainless steel
Continuous automatic operation minimizes labor costs
Dual motor drive with adjustable bowl and screw speed via VFD
Continuous spiral discharging with PLC control and touch screen operation
Scroll conveyor coated with wearable alloy or welded with alloy plate
Comprehensive safety protection including rotation rate detection, vibration protection, motor overload, overheat protection, and scroll protection

Technical Specifications

Huading Separator has over 15 years of experience in decanter manufacturing, with various models applied across multiple industries.

Bowl ID (mm)	Bowl Speed (rpm)	L/D	G-Force	Capacity (m³/h)	Solids Removal (m³/h)	Primary Motor (Kw)	Weight (Kg)	Dimension (mm)
250	4800~5400	3.0~5.0	2000~3500	3~5	0.4	11	760	1600×1100×850
300	4200~4600	3.0~5.0	2000~3500	3~15	0.8	11~15	1500	2470×1230×850
350	3700~4200	3.0~5.0	2000~3500	5~20	1.2	5~22	2000	2790×1300×880
400	3200~3900	3.0~4.8	2000~3500	5~30	2	18.5~30	2600	2950×1400×850
450	3000~3700	3.0~5.0	2000~3500	5~45	2.5	22~37	3200	3300×1500×920
530	2700~3450	3.0~5.0	2000~3500	10~80	5	30~55	5200	3730×1600×1100
580	2600~3300	3.0~5.0	2000~3500	10~90	6	45~75	6900	4000×1400×1600
650	2400~3100	3.0~5.0	2000~3500	20~105	8	37~90	8200	4300×1900×1350
760	2200~2900	3.0~5.0	2000~3500	30~120	12	55~135	12000	5000×2500×1500
900	1800~2600	3.0~5.0	2000~3500	40~180	16	75~160	18000	6500×2700×1500

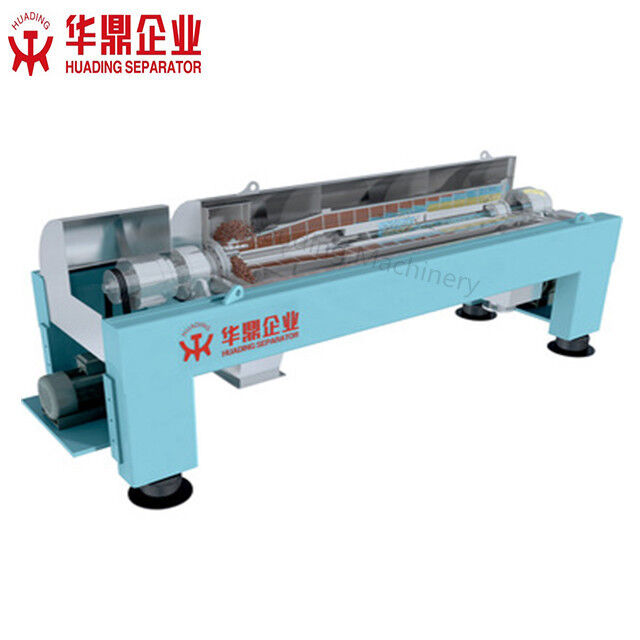

Working Principle

The horizontal screw discharge sedimentation centrifuge performs continuous separation of materials with density differences in suspensions using centrifugal sedimentation. The bowl and feeding screw rotate at high speeds with differential rotation. Materials enter through the feed tube, accelerate, and enter the bowl where heavier solids deposit on the bowl walls. The spiral pusher continuously moves deposited solids to the taper end for discharge after dehydration. This enables continuous feeding, sedimentation, separation, washing, and discharging with compact design and stable operation.

Three-Phase Working Principle

With high-speed rotation and differential speed between bowl and screw, materials enter the bowl where high-specific-weight liquids accumulate on inner walls and discharge through centripetal pump or overflow plate. Low-specific-weight liquids form an inner liquid ring and discharge from overflow channels. Solids are continuously pushed to the taper end and discharged after drying.

Two-Phase Working Principle

Suspensions enter the spiral pusher cavity and move to the bowl cavity. Sedimented solids move to the small bowl end under differential speed and discharge from solid ports. Liquids form a hollow liquid ring, move to the large bowl end, overflow the adjustable baffle, and discharge by gravity.

Typical Applications

Water Treatment: sludge dewatering, sewage concentration, wastewater treatment
Vegetable Oil and Fats: soybean oil, fish oil, CBD oil
Beverage Clarification: fruit juice, soy milk, beer yeast
Fermentation Industry: algae concentration, yeast extraction
Pharmaceutical Biotechnology: TCM preparation, pharmaceutical intermediates
Plant Extraction: tea, loquat leaf
Mineral Oil: fuel oil, lubricant, waste oil
Chemical Industry: alum, aluminum hydroxide, clay, diatomite

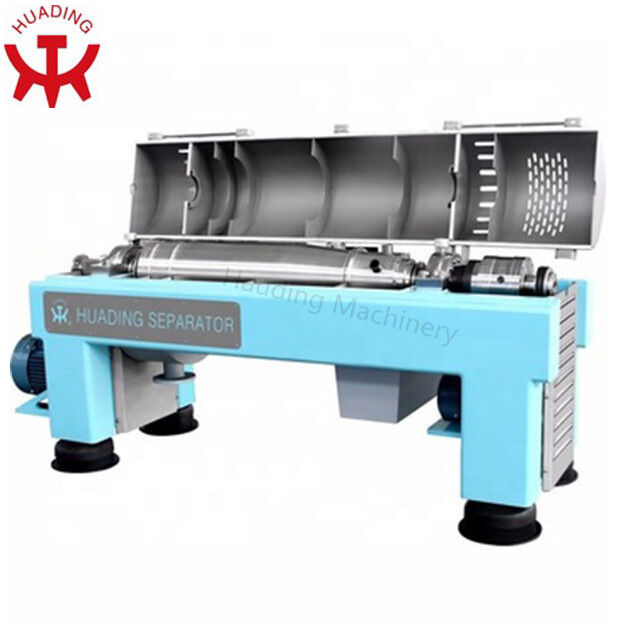

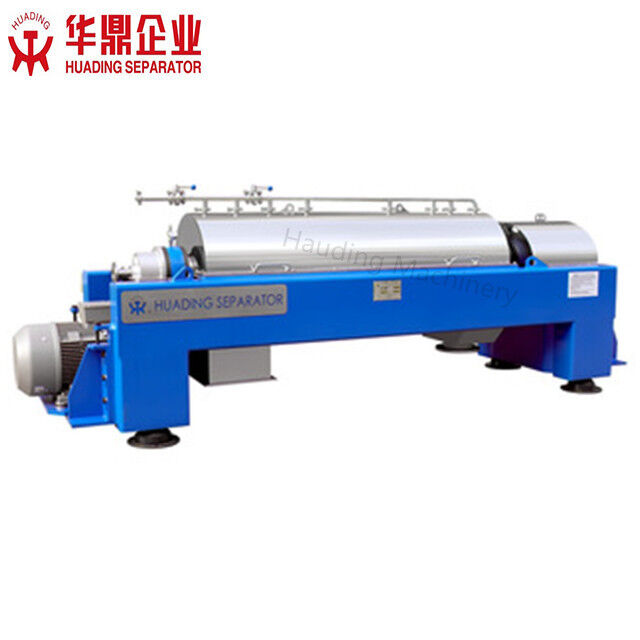

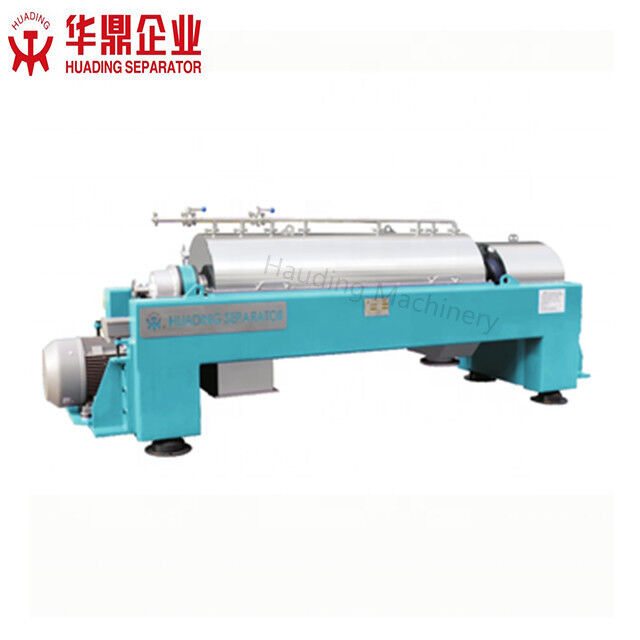

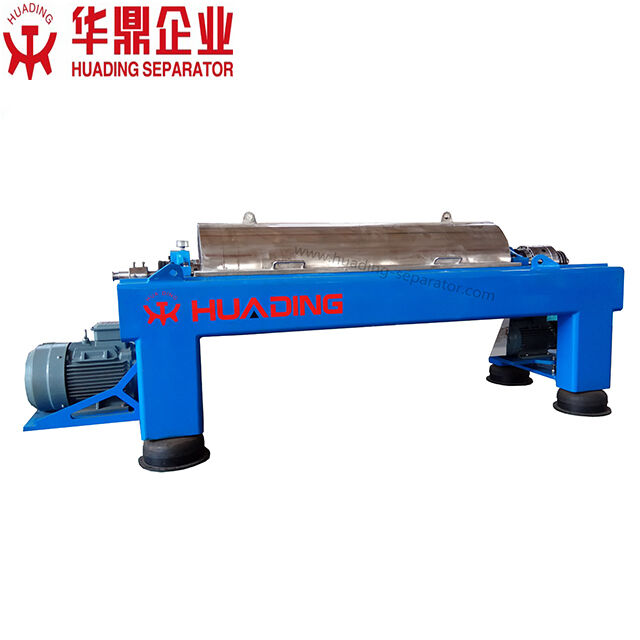

Detailed Images

Packing & Shipping

Company Profile

Huading Separator, Yixing Huading Machinery Co., Ltd, is a market leader in centrifugal separation technology with over 60 years of experience. The company designs and manufactures centrifugal separation equipment, providing complete systems in compact, fully tested, skid-mounted assemblies. Huading's solutions help customers clarify, concentrate, and separate products across food, beverage, pharmaceutical, chemical, marine, oilfield, energy, mining, mechanical engineering, and wastewater treatment industries.
