Tricante Waste Oil Decanter Centrifuge for Petroleum Crude Oil

oil decanter centrifuge

oil centrifuge equipment

480v decanter centrifuge

Place of Origin:

China

Brand Name:

HUADING

Certification:

ISO CE

Chat Now

Request A Quote

Product Details

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

PLC, Motor

Voltage:

110-480V Customized

Power(w):

4-300KW Customized

Dimension(l*w*h):

Depend On Models

Warranty:

1 Year

Key Selling Points:

Competitive Price

MATERIAL:

SS304/316L/2205...

INVERTERS:

/ABB

Application:

Liquid Solid Separation

Electronic Parts:

/SCHNEIDER/CHINT

Control Cabinet:

PLASTIC SPRAY/STAINLESS STEEL

After-sales Service Provided:

Online Support

Type:

Centrifuge

Condition:

New

Warranty Of Core Components:

1 Year

Showroom Location:

None

Applicable Industries:

Food & Beverage Factory, Factory

Weight:

500

Marketing Type:

New Product 2022

Highlight:

oil decanter centrifuge

oil centrifuge equipment

480v decanter centrifuge

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$8,000-20,000 / set

Related Products

86-510-87836501

huading@yxhuading.com

Chat Now

Product Description

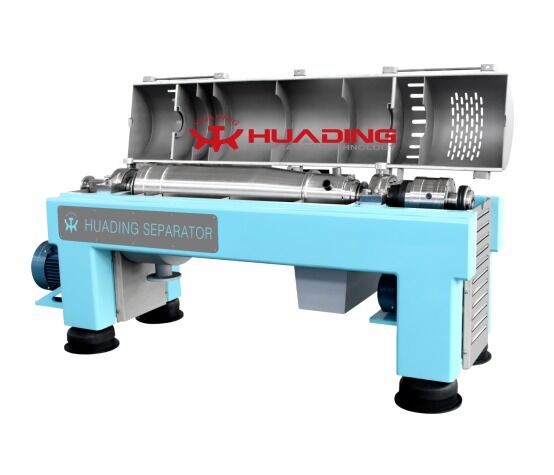

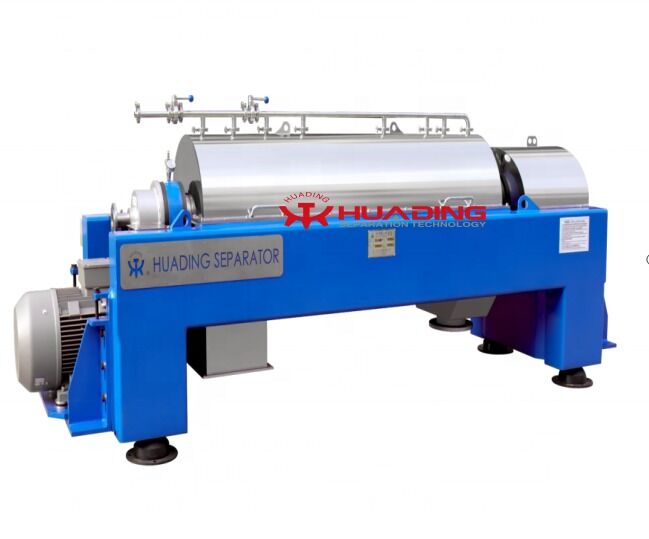

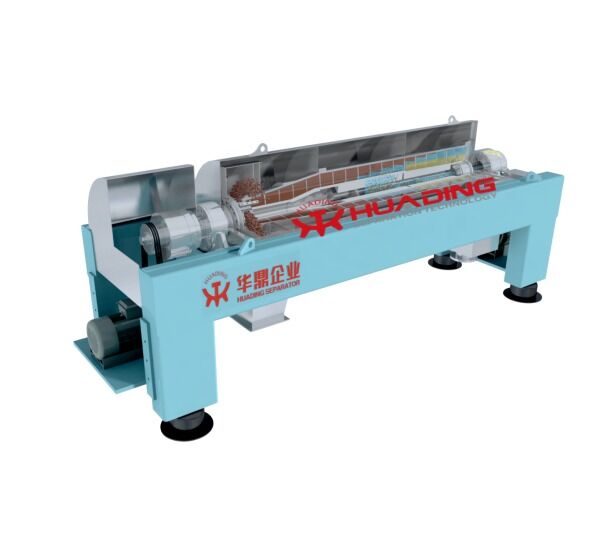

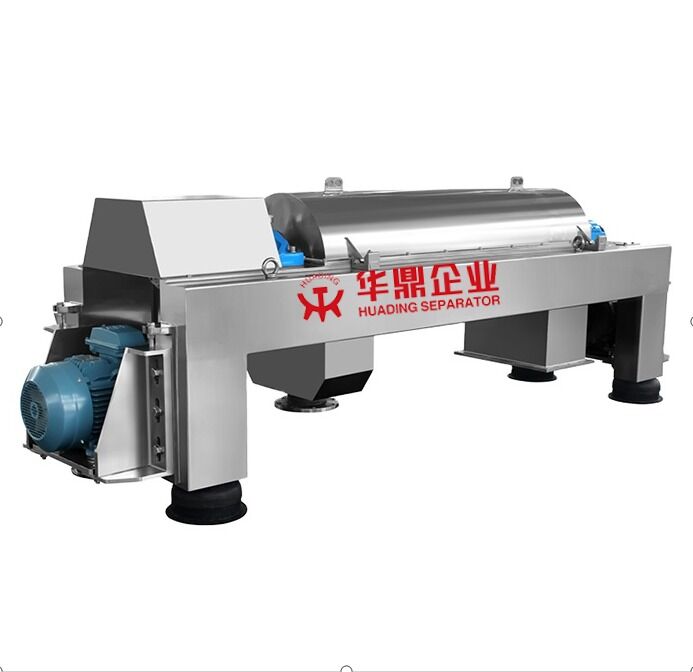

Tricante Waste Oil Decanter Centrifuge for Petroleum Crude Oil

Yixing Huading Machinery Co., Ltd is a leading manufacturer in centrifugal separation technology with over 60 years of experience in design and manufacturing.

Why Choose Huading Separator

60+ Years Experience

Our separators and decanters serve diverse industries including food, beverage, pharmaceutical, chemical, marine, oilfield, energy, mining, and wastewater treatment.

40,000+ Installations

HUADING separators have been installed in more than 50 countries worldwide.

Innovation Tradition

We've developed over 100 models to meet diverse application requirements across multiple industries.

Working Principle

Feed enters through stationary inlet tube and accelerates via inlet distributor
Centrifugal force causes sedimentation of solids on bowl wall
Separation occurs in horizontal cylindrical bowl with screw conveyor
Conveyor rotates with bowl at differential speed to move solids toward discharge
Clarified liquid separation via adjustable overflow plate

Key Components

Frame, Gearbox, Primary Motor, Secondary Motor, Bowl, Screw, Hood

Design Features

Material Construction

All material contact surfaces use high-quality stainless steel or duplex stainless steel. Bowl body features centrifugal casting for enhanced durability and reliability.

Bowl and Screw Design

Specialized bowl and spiral design applies high-pressure, two-way compression at conical end to maximize cake dryness and minimize moisture content.

Drive System

Dual motor dual frequency conversion with multi-stage planetary gear drive. Real-time differential speed adjustment based on material characteristics and user requirements. Unique DC bus-powered design ensures strong spiral torque while reducing power consumption. Multiple drive options available including full hydraulic drive.

Lubrication System

Available with traditional manual grease lubrication or optional automatic grease/thin oil lubrication systems for real-time bearing lubrication, significantly enhancing bearing life and overall machine durability.

Control System

Standard configuration includes PLC + HMI, fully integrating critical parameters: speed, differential, current, torque, vibration and more for optimal performance monitoring.

Wear Protection

Comprehensive wear protection options including welded hard facing, spray coating, ceramic ports, Zn carbide tiles, and chilled hard metal port castings. Most wear protection elements are field-replaceable for easy maintenance.

Manufacturing Excellence

Installation References
