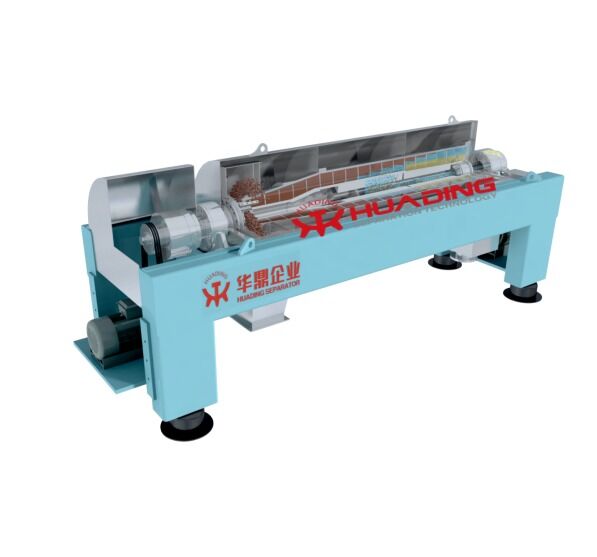

Horizontal Decanter Centrifuge for Solid Liquid Liquid Separation Automatic Screw Sedimentation Discharging

Product Details

Place of Origin: China

Brand Name: Huading

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $6,000-30,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    mining horizontal peeler centrifuge, mining horizontal decanter centrifuge


Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Voltage:	220/ 380 / 415
Power(w):	5.5-132	Warranty:	1 Year
Key Selling Points:	High Productivity	After-sales Service Provided:	Field Installation, Commissioning And Training
After Warranty Service:	Spare Parts	Type:	Centrifuge
Condition:	New	Warranty Of Core Components:	1 Year
Applicable Industries:	Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Energy & Mining	Showroom Location:	None
Weight:	2000	Marketing Type:	New Product 2022

Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Voltage:	220/ 380 / 415
Power(w):	5.5-132
Warranty:	1 Year
Key Selling Points:	High Productivity
After-sales Service Provided:	Field Installation, Commissioning And Training
After Warranty Service:	Spare Parts
Type:	Centrifuge
Condition:	New
Warranty Of Core Components:	1 Year
Applicable Industries:	Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Energy & Mining
Showroom Location:	None
Weight:	2000
Marketing Type:	New Product 2022

Horizontal Decanter Centrifuge for Solid Liquid Liquid Separation Automatic Screw Sedimentation Discharging

Horizontal Decanter Centrifuge for Solid-Liquid Separation

Automatic screw sedimentation discharging system for continuous solid-liquid separation processes.

Standard Equipment

The decanter centrifuge includes a motor control center panel to operate the main drive, back drive, and feed pump. A differential speed controller maintains optimal solids balance during operation. All wear-exposed parts are protected by special metal hard facing, ceramic wear bushes, and inserts that are easily exchangeable even under field conditions. Maintenance tools and spare parts are supplied.

Key Features

All material-contact parts made of stainless steel
Continuous and automatic operation minimizes labor costs
Two-motor drive with adjustable bowl and screw speed via VFD
Continuous spiral discharging with PLC control and touch screen operation
Scroll conveyor coated with wearable alloy or welded with alloy plate
Comprehensive safety protection including rotation rate detection, vibration protection, motor overload and overheat protection

Technical Specifications

Huading Separator has over 15 years of experience in developing and manufacturing decanters, with various types applied across multiple industries.

Bowl ID (mm)	Bowl Speed (rpm)	L/D	G-Force	Capacity (m³/h)	Solids Removal (m³/h)	Primary Motor (Kw)	Weight (Kg)	Dimension (mm)
250	4800~5400	3.0~5.0	2000~3500	3~5	0.4	11	760	1600×1100×850
300	4200~4600	3.0~5.0	2000~3500	3~15	0.8	11~15	1500	2470×1230×850
350	3700~4200	3.0~5.0	2000~3500	5~20	1.2	5~22	2000	2790×1300×880
400	3200~3900	3.0~4.8	2000~3500	5~30	2	18.5~30	2600	2950×1400×850
450	3000~3700	3.0~5.0	2000~3500	5~45	2.5	22~37	3200	3300×1500×920
530	2700~3450	3.0~5.0	2000~3500	10~80	5	30~55	5200	3730×1600×1100
580	2600~3300	3.0~5.0	2000~3500	10~90	6	45~75	6900	4000×1400×1600
650	2400~3100	3.0~5.0	2000~3500	20~105	8	37~90	8200	4300×1900×1350
760	2200~2900	3.0~5.0	2000~3500	30~120	12	55~135	12000	5000×2500×1500
900	1800~2600	3.0~5.0	2000~3500	40~180	16	75~160	18000	6500×2700×1500

Working Principle

The horizontal screw discharge sedimentation centrifuge performs continuous separation of materials with density differences in suspensions using centrifugal sedimentation. The bowl and feeding screw rotate at high speeds with differential speeds between them. Materials enter through the feed tube, accelerate, and enter the bowl where centrifugal force causes heavier solids to deposit on the bowl walls. The spiral pusher continuously moves deposited solids to the taper end for discharge after dehydration.

Three-Phase Working Principle

During high-speed rotation with differential speeds, materials enter the bowl where centrifugal force separates liquids by specific weight. Heavy liquids accumulate on bowl walls and discharge through centripetal pump or overflow plate, while light liquids form an inner ring and discharge through overflow channels. Solids are continuously pushed to the taper end for discharge.

Two-Phase Working Principle

Suspensions enter the bowl cavity through the feed tube. Solids sediment and move to the bowl's small end under screw differential speed, discharging from the solid port. Liquids form a hollow ring moving to the large end, overflowing the adjustable baffle and discharging by gravity.

Typical Applications

Water Treatment: sludge dewatering, sewage concentration, waste water treatment

Vegetable Oil and Fats: soybean oil, fish oil, CBD oil

Beverage Clarification: fruit juice, soy milk, beer yeast

Fermentation Industry: algae concentration, yeast extraction

Pharmaceutical Biotechnology: TCM preparation, pharmaceutical intermediates

Plant Extraction: tea, loquat leaf

Mineral Oil: fuel oil, lubricant, waste oil

Chemical Industry: alum, aluminum hydroxide, clay, diatomite

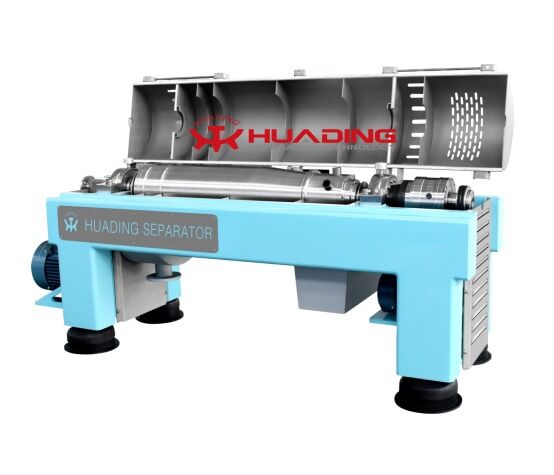

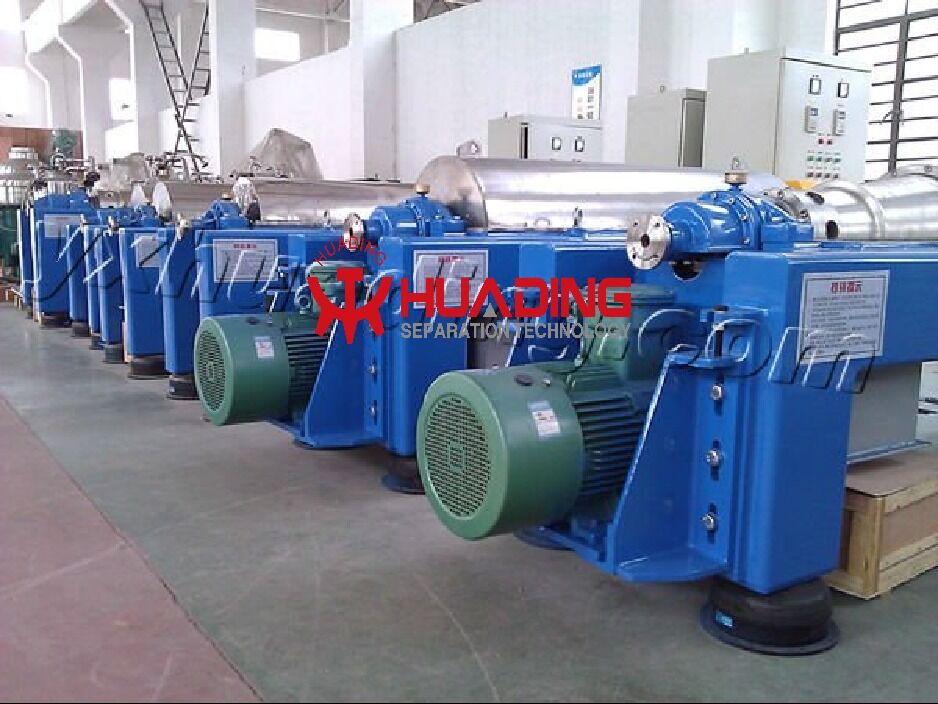

Detailed Images

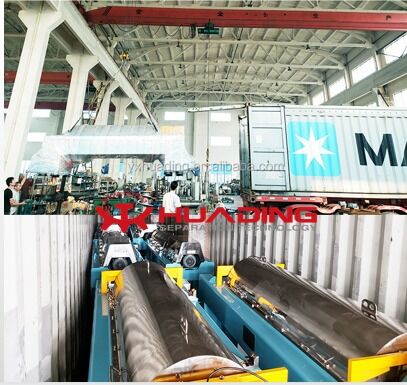

Packing & Shipping

Company Profile

Yixing Huading Machinery Co., Ltd is a market leader in centrifugal separation technology with over 60 years of experience. The company designs and manufactures centrifugal separation equipment, providing complete systems customized for specific applications in compact, fully tested, skid-mounted assemblies. Huading's solutions help customers clarify, concentrate, and separate products across food, beverage, pharmaceutical, chemical, marine, oilfield, energy, mining, mechanical engineering, and wastewater treatment industries.

Exhibition

Certifications
