High Wear Resistance, High Slag Discharge, Drilling Fluid Classification Treatment Decanter

Product Details

Place of Origin: Jiangsu, China

Brand Name: Huading

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $30,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            mining decanter centrifuge, mining centrifuge equipment


Product Type:	Decanter	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Voltage:	220/ 380 / 415	Power(w):	5.5-132
Dimension(lwh):	/	Warranty:	1 Year
Key Selling Points:	High Productivity	Capacity:	~30000L/h, 1-30m3/h
Weight (KG):	3000	Setting Speed:	3 000 RPM
Application:	Liquid Solid Separation	Warranty Of Core Components:	1 Year
After-sales Service Provided1:	Field Installation, Commissioning And Training	After-sales Service Provided2:	Online Support & Video Technical Support
Applicable Industries1:	Food & Beverage Factory & Farms	Applicable Industries2:	Energy & Mining
Applicable Industries3:	Waste Water & Sludge	Showroom Location:	United States & United Kingdom & Canada
Local Service Location:	Germany & Vietnam & United States

Product Type:	Decanter
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Voltage:	220/ 380 / 415
Power(w):	5.5-132
Dimension(lwh):	/
Warranty:	1 Year
Key Selling Points:	High Productivity
Capacity:	~30000L/h, 1-30m3/h
Weight (KG):	3000
Setting Speed:	3 000 RPM
Application:	Liquid Solid Separation
Warranty Of Core Components:	1 Year
After-sales Service Provided1:	Field Installation, Commissioning And Training
After-sales Service Provided2:	Online Support & Video Technical Support
Applicable Industries1:	Food & Beverage Factory & Farms
Applicable Industries2:	Energy & Mining
Applicable Industries3:	Waste Water & Sludge
Showroom Location:	United States & United Kingdom & Canada
Local Service Location:	Germany & Vietnam & United States

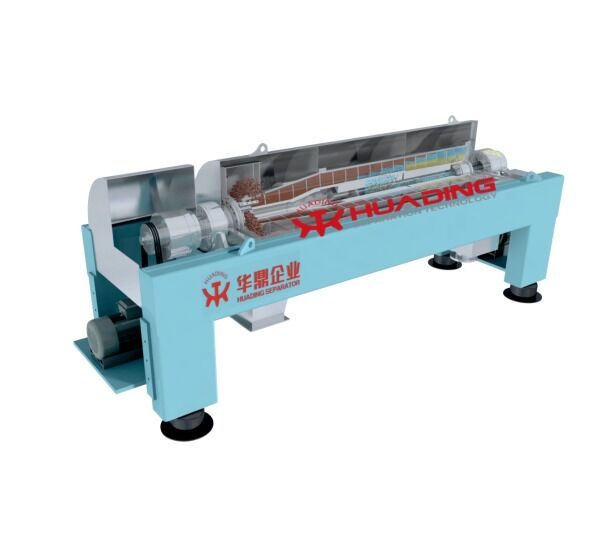

High Wear Resistance, High Slag Discharge, Drilling Fluid Classification Treatment Decanter

Drilling Sludge Dewatering Machine Equipment - 2 Phase High Speed Decanter Centrifuge

Automatic continuous discharging decanter centrifuge for efficient drilling fluid treatment and solids separation.

Standard Equipment

The decanter centrifuge includes a motor control center panel to operate the main drive, back drive, and feed pump. A differential speed controller maintains optimal solids balance in the decanter during operation. All parts exposed to wear are protected by special metal hard facing, ceramic wear bushes, inserts, etc. Bushes and inserts are easily exchangeable, even under field conditions. Maintenance tools and spare parts are supplied.

Key Features

Optimal for invert drilling operations
Exceptional design allows for ultra fine removal
Improves formation management
Optimizes solids removal and barite recovery
Decreases drilling costs and waste volumes
Provides optimal torque control and high separation efficiency
Features high flow capacity
Low amperage draw during startup and RPM changes

Technical Specifications

Huading Separator has been developing and manufacturing decanters for over 15 years and is one of China's leading decanter manufacturers. Our diverse range of decanters is applied across various industries, delivering significant benefits to our customers.

Bowl ID (mm)	Bowl Speed (rpm)	L/D	G-Force	Capacity (m³/h)	Solids Removal (m³/h)	Primary Motor (Kw)	Weight (Kg)	Dimension (mm)
250	4800~5400	3.0~5.0	2000~3500	3~5	0.4	11	760	1600×1100×850
300	4200~4600	3.0~5.0	2000~3500	3~15	0.8	11~15	1500	2470×1230×850
350	3700~4200	3.0~5.0	2000~3500	5~20	1.2	5~22	2000	2790×1300×880
400	3200~3900	3.0~4.8	2000~3500	5~30	2	18.5~30	2600	2950×1400×850
450	3000~3700	3.0~5.0	2000~3500	5~45	2.5	22~37	3200	3300×1500×920
530	2700~3450	3.0~5.0	2000~3500	10~80	5	30~55	5200	3730×1600×1100
580	2600~3300	3.0~5.0	2000~3500	10~90	6	45~75	6900	4000×1400×1600
650	2400~3100	3.0~5.0	2000~3500	20~105	8	37~90	8200	4300×1900×1350
760	2200~2900	3.0~5.0	2000~3500	30~120	12	55~135	12000	5000×2500×1500
900	1800~2600	3.0~5.0	2000~3500	40~180	16	75~160	18000	6500×2700×1500

Drive System Options

One Motor Drive

This simple and cost-effective design is ideal for applications with constant solids volume, easy solids conveyance, and less stringent requirements for residual water content. The input shaft is driven by the main motor via a secondary belt drive, generating differential speed as a function of bowl speed and gear transmission. Differential speed can be adjusted by replacing belt pulleys.

Two Motor Drive

This system enables cost-effective differential speed regulation under various operating conditions with wide regulating ranges. The secondary motor drives the input shaft of the gear, generating differential speed as a function of bowl speed and gear transmission. Ideal for applications with fluctuating solid volumes, difficult solids conveyance conditions, and stringent requirements for residual water content.

Hydro Drive

Similar to the two motor drive system but with a different design approach. Instead of a mechanical gear, a rotating hydromotor is installed and supplied with hydraulic regulation by a pump unit. The differential speed is proportionate to the conveyed oil quantity, allowing for automatic regulation without complications.

Frequently Asked Questions

How can we visit your factory?

International visitors arriving at Shanghai Airport or domestic visitors arriving at Yixing Station will be provided with transportation to our facility.

How do you guarantee the quality of your products?

With over 60 years of experience, we implement strict quality control policies. Advanced processing machines ensure part accuracy, certified operators, multiple processing stages, and internationally renowned transmission and electrical components. Comprehensive testing and inspection throughout production.

What payment methods does your company accept?

We accept most payment methods, with T/T being our primary method.

How long is the warranty period of your products?

12 months warranty coverage.

I have not done business with your company before, how can I trust your company?

Our company has been established on Alibaba for 14 years and provides all necessary certifications and documentation.

What are your company's shipping terms and delivery time?

Customized solutions with delivery times of 60-90 days.
