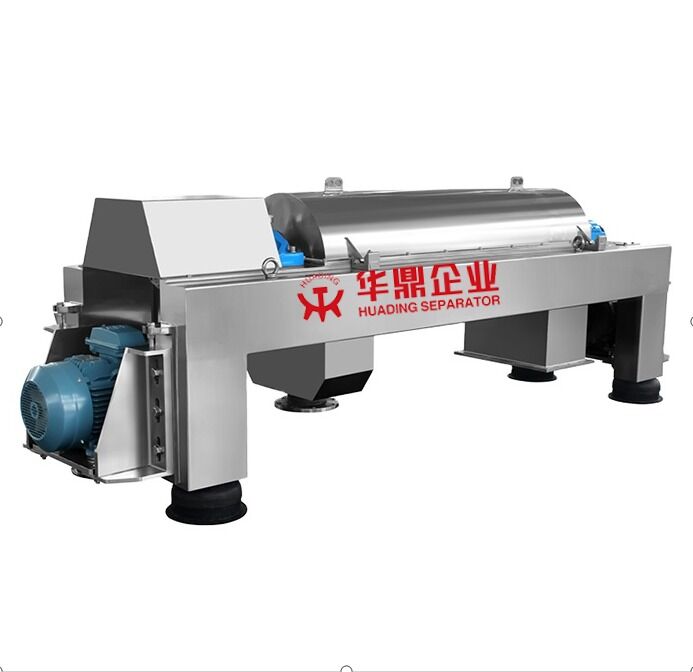

Chrome Yellow Decanter Centrifuge Sludge 88dB Mining Dewatering Decanter Centrifuge

Product Details

Place of Origin: Jiangsu, China

Brand Name: HUADING

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $24,000-25,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            chrome yellow  Decanter Centrifuge, industrial decanter centrifuge 88dB, mining sludge dewatering decanter centrifuge


Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	Bowl	Warranty:	1 Year
Productivity:	/	Weight (kg):	1200 Kg
Bowl Diameter:	186 - 720 Mm	L/D:	3.0 - 5.5
Bowl Speed:	2000 - 6000 Rpm	G-forcee:	1600 - 4000 G
Primary Motor:	5.5 - 132 Kw	Secondary Motor:	2.2 - 45 Kw
Material:	EN 1.4462 / 1.4362 / 1.4410 / 1.4501 / AISI 304 / 316 / 316L	Noise:	< 88 DB
Condition:	New	Applicable Industries:	Construction Works , Energy & Mining, Food & Beverage Factory, Manufacturing Plant
Showroom Location:	Canada, Germany, South Africa, United States	Marketing Type:	Ordinary Product
Warranty Of Core Components:	5 Years

Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	Bowl
Warranty:	1 Year
Productivity:	/
Weight (kg):	1200 Kg
Bowl Diameter:	186 - 720 Mm
L/D:	3.0 - 5.5
Bowl Speed:	2000 - 6000 Rpm
G-forcee:	1600 - 4000 G
Primary Motor:	5.5 - 132 Kw
Secondary Motor:	2.2 - 45 Kw
Material:	EN 1.4462 / 1.4362 / 1.4410 / 1.4501 / AISI 304 / 316 / 316L
Noise:	< 88 DB
Condition:	New
Applicable Industries:	Construction Works , Energy & Mining, Food & Beverage Factory, Manufacturing Plant
Showroom Location:	Canada, Germany, South Africa, United States
Marketing Type:	Ordinary Product
Warranty Of Core Components:	5 Years

Chrome Yellow Decanter Centrifuge Sludge 88dB Mining Dewatering Decanter Centrifuge

Chrome Yellow Decanter Centrifuge

High-performance sludge dewatering decanter centrifuge with noise levels below 88dB, ideal for mining and industrial applications.

Factory Direct Supply

Horizontal continuous drilling mud decanter centrifuge from Chinese technology leader with manufacturing expertise since 1954.

Technical Specifications

Bowl diameter	186 - 720 mm
L/D ratio	3.0 - 5.5
Bowl speed	2000 - 6000 rpm
G-force	1600 - 4000 g
PLC	SIEMENS
HMI	SIEMENS
Primary motor	5.5 - 132 Kw
Secondary motor	2.2 - 45 Kw
Material	EN 1.4462 / 1.4362 / 1.4410 / 1.4501 / AISI 304 / 316 / 316L
Noise level	< 88 dB

Design Features

The rotating assembly is mounted on a compact, in-line frame with main bearings at both ends. Vibration dampers are positioned under the frame, and the rotating components are enclosed within a protective casing featuring integrated outlets for both solids and separated liquids.

Quality Certifications

JB/T502-2015 Chinese national standard for decanter centrifuges
2006/42/EC Machinery Directive
2014/35/EU Low Voltage Directive
2014/30/EU Electromagnetic Compatibility Directive
ISO9001-2000 Quality Management System

Working Principle

2-Phase Separation Process

1. Feed introduction
2. Liquid phase separation
3. Solids phase collection
4. Pond formation
5. Dry beach discharge

The feed suspension enters through an inlet pipe into the conveyor's feed zone, where it accelerates into the bowl interior. Settled solids are conveyed axially toward the small end by the screw conveyor, which rotates at a differential speed. Solids are lifted from the pond along the dry beach and discharged through ports into the casing collection chamber, while the liquid phase flows toward the large end and overflows adjustable plate dams.

3-Phase Separation Process

0. Feed material
1. Light liquid phase separation
2. Heavy liquid phase separation
3. Solids phase collection

Light liquid phase discharges through radial holes in the large end hub, while heavy liquid phase exits through axial holes. A separating plate prevents mixing, with liquid levels controlled by plate dams. Solids discharge follows standard procedures.

Construction Materials

All process-contact components including bowl, conveyor, inlet tube, outlets, and cover are constructed from stainless steel. Critical wear areas feature erosion-resistant materials, while the frame utilizes mild steel with epoxy enamel finish.

Wear Protection Options

Welded hard facing or spray coating
Ceramic protection
Tungsten carbide tiles
Chilled hard metal port castings
Plastic liners

Drive System Configurations

Single Motor Drive

Cost-effective solution for applications with constant solids volume and minimal conveying challenges. Features simple operation with belt-driven differential speed generation.

Dual Motor Drive

Provides adjustable differential speed control for fluctuating solids volumes and demanding dewatering requirements. Enables precise regulation through secondary motor speed variation.

Hydro Drive

Utilizes hydraulic motor technology for automatic differential speed regulation. Similar functionality to dual motor drive with hydraulic pump unit control.

Technical Performance Specifications

Bowl ID (mm)	Bowl Speed (rpm)	L/D Ratio	G-Force	Capacity (m³/h)	Solids Removal (m³/h)	Primary Motor (Kw)	Weight (Kg)	Dimensions (mm)
250	4800~5400	3.0~5.0	2000~3500	3~5	0.4	11	760	1600×1100×850
300	4200~4600	3.0~5.0	2000~3500	3~15	0.8	11~15	1500	2470×1230×850
350	3700~4200	3.0~5.0	2000~3500	5~20	1.2	5~22	2000	2790×1300×880
400	3200~3900	3.0~4.8	2000~3500	5~30	2	18.5~30	2600	2950×1400×850
450	3000~3700	3.0~5.0	2000~3500	5~45	2.5	22~37	3200	3300×1500×920
530	2700~3450	3.0~5.0	2000~3500	10~80	5	30~55	5200	3730×1600×1100
580	2600~3300	3.0~5.0	2000~3500	10~90	6	45~75	6900	4000×1400×1600
650	2400~3100	3.0~5.0	2000~3500	20~105	8	37~90	8200	4300×1900×1350
760	2200~2900	3.0~5.0	2000~3500	30~120	12	55~135	12000	5000×2500×1500
900	1800~2600	3.0~5.0	2000~3500	40~180	16	75~160	18000	6500×2700×1500

Technical Support & Training

Installation & Commissioning

Technical guidance during installation and debugging
Operator and maintenance personnel training

Training Curriculum

Separator working principles and structural overview
Operational procedures and safety considerations
Preventive maintenance protocols

Manufacturing Expertise

With nearly 60 years of centrifuge development and manufacturing experience, Huading Separator is a leading Chinese manufacturer with unparalleled expertise in continuous separation technology.

For comprehensive technical information, visit: huading-separator.com

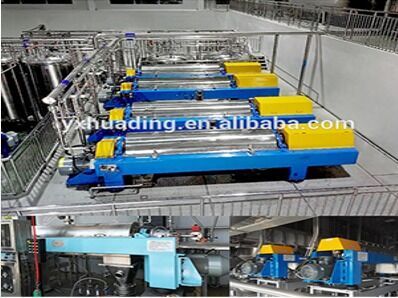

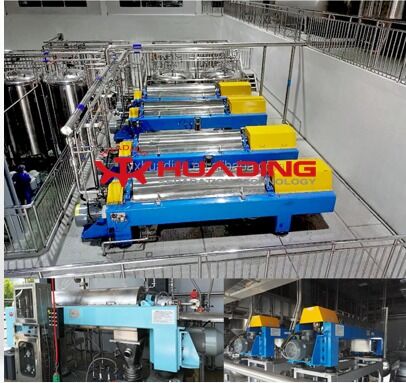

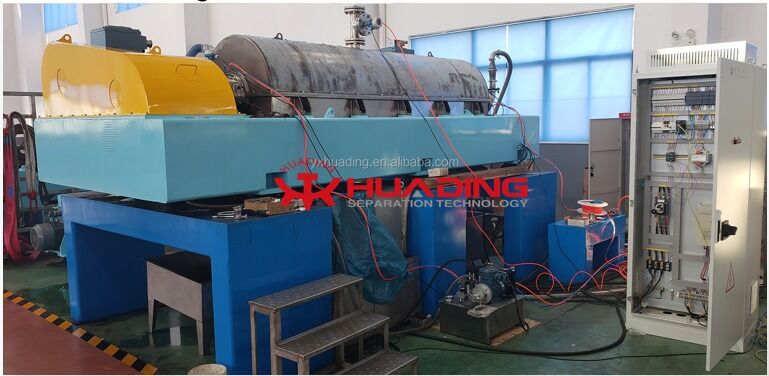

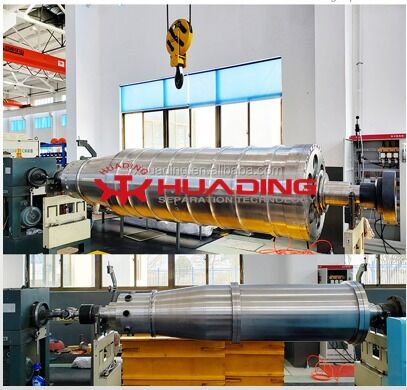

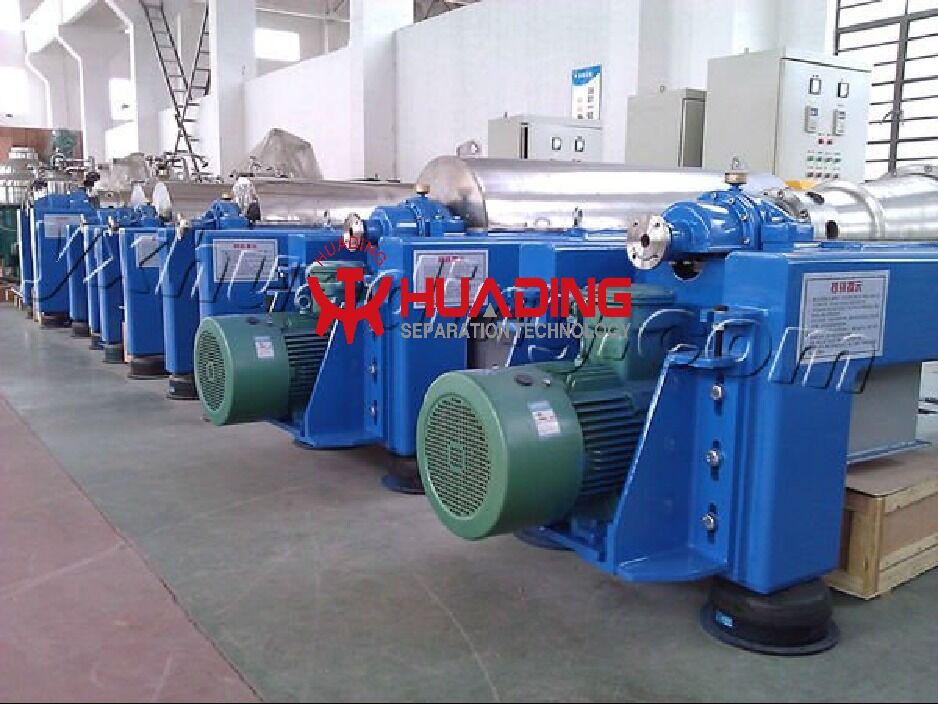

Manufacturing Facilities
