Crude Vegetable Oil high speed centrifuge Small three phase decanter centrifuge

Product Details

Place of Origin: Jiangsu, China

Brand Name: HUADING

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $22,000-25,000 / set

Chat Now
Highlight:

Crude Vegetable Oil high speed centrifuge

,

high speed centrifuge 1000lph

,

Small three phase decanter centrifuge

Product Type:
Separation Machine
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC, Motor, Bowl
Voltage:
220 - 480
Power(w):
8500
Dimension(l*w*h):
2520*740*1060
Warranty:
1 Year
Key Selling Points:
Competitive Price
Capacity:
501-1000l/h
Weight (KG):
1200
Setting Speed:
4000 RPM
Bowl Material:
AISI304
Product Type:
Separation Machine
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC, Motor, Bowl
Voltage:
220 - 480
Power(w):
8500
Dimension(l*w*h):
2520*740*1060
Warranty:
1 Year
Key Selling Points:
Competitive Price
Capacity:
501-1000l/h
Weight (KG):
1200
Setting Speed:
4000 RPM
Bowl Material:
AISI304
Crude Vegetable Oil high speed centrifuge Small three phase decanter centrifuge
Crude Vegetable Oil High Speed Centrifuge - Small Three Phase Decanter Centrifuge
Crude Vegetable Oil Treatment Small Production Line Decanter Centrifuge
Crude Vegetable Oil high speed centrifuge Small three phase decanter centrifuge 0 Crude Vegetable Oil high speed centrifuge Small three phase decanter centrifuge 1

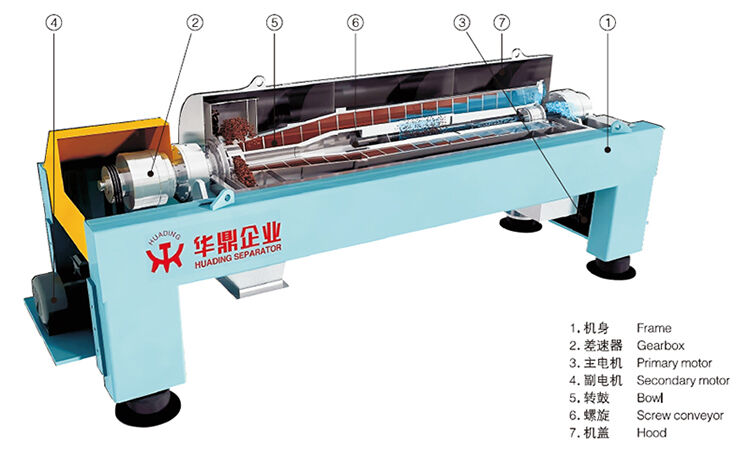

Product Features
  • Rotating part mounted on compact, in-line frame with main bearings at both ends
  • Vibration dampers placed under the frame for stable operation
  • Enclosed rotating part in casing with cover and integrated outlets for solids and liquid
Quality Assurance & Certifications
  • JB/T502-2015 Chinese national standard of decanter centrifuge
  • 2006/42/EC Machinery Directive
  • 2014/35/EU Low Voltage Directive
  • 2014/30/EU Electromagnetic Compatibility Directive
  • ISO9001-2000 Quality Management System
Technical Specifications
Parameter Specification
Bowl Diameter 186-720mm
Bowl Length 744-3000mm
Bowl Speed 2000-6000rpm
G-Force 1600-4000g
Weight 600-8000kg
Primary Motor 5.5-132kw
Secondary Motor 2.2-45kw
Material AISI 304/316/316L/Duplex Steel
Noise Level <88db
Crude Vegetable Oil high speed centrifuge Small three phase decanter centrifuge 2 Crude Vegetable Oil high speed centrifuge Small three phase decanter centrifuge 3 Crude Vegetable Oil high speed centrifuge Small three phase decanter centrifuge 4 Crude Vegetable Oil high speed centrifuge Small three phase decanter centrifuge 5
Drive System Options
One Motor Drive
Simple design offering cost-effective purchase and operation. Ideal for applications with constant solids volume, easy solids conveyance, and less stringent requirements for residual water content in solids. Features fixed bowl and differential speed without regulation facilities.
Crude Vegetable Oil high speed centrifuge Small three phase decanter centrifuge 6
Two Motor Drive
Enables cost-effective differential speed regulation with wide operating ranges. Suitable for fluctuating solid volumes, difficult solids conveyance conditions, and stringent residual water content requirements.
Crude Vegetable Oil high speed centrifuge Small three phase decanter centrifuge 7
Hydro Drive
Similar to two motor drive but utilizes a rotating hydromotor with hydraulic regulation by a pump unit. Enables automatic regulation as differential speed is proportionate to conveyed oil quantity.
Crude Vegetable Oil high speed centrifuge Small three phase decanter centrifuge 8 Crude Vegetable Oil high speed centrifuge Small three phase decanter centrifuge 9 Crude Vegetable Oil high speed centrifuge Small three phase decanter centrifuge 10 Crude Vegetable Oil high speed centrifuge Small three phase decanter centrifuge 11 Crude Vegetable Oil high speed centrifuge Small three phase decanter centrifuge 12 Crude Vegetable Oil high speed centrifuge Small three phase decanter centrifuge 13 Crude Vegetable Oil high speed centrifuge Small three phase decanter centrifuge 14 Crude Vegetable Oil high speed centrifuge Small three phase decanter centrifuge 15
Frequently Asked Questions
How can we visit your factory?
International visitors arriving at Shanghai Airport or domestic visitors arriving at Yixing Station will be provided with transportation to our facility.
How do you guarantee the quality of your products?
With over 60 years of experience, we implement strict quality policies, advanced processing machines, certified operators, and use internationally renowned components with comprehensive testing throughout production.
What payment methods does your company accept?
We accept most payment methods, primarily T/T (Telegraphic Transfer).
How long is the warranty period of your products?
12 months warranty period.
I have not done business with your company before, how can I trust your company?
We have been established on Alibaba for 14 years and can provide various business certificates and references.
What are your company's shipping terms and delivery time?
Each unit is custom manufactured with delivery time of 60-90 days.
Do you give any discount?
We strive to provide the best possible pricing for all customers.
