Classifying Mini Decanter Centrifuge 1.2T Olive Oil 3 Phase Decanter Centrifuge

Product Details

Place of Origin: Jiangsu, China

Brand Name: HUADING

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $16,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Classifying mini decanter centrifuge, mini decanter centrifuge 1.2T, olive oil  3 phase decanter centrifuge


Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	Bowl	Warranty:	1 Year
Productivity:	/	Weight (kg):	1200 Kg
Bowl Diameter:	186 - 720 Mm	L/D:	3.0 - 5.5
Bowl Speed:	2000 - 6000 Rpm	G-forcee:	1600 - 4000 G
Weight:	600 - 8000 Kg, 1200	Primary Motor:	5.5 - 132 Kw
Secondary Motor:	2.2 - 45 Kw	Material:	EN 1.4462 / 1.4362 / 1.4410 / 1.4501 / AISI 304 / 316 / 316L
Noise:	< 88 DB	Condition:	New
Applicable Industries:	Construction Works , Energy & Mining, Food & Beverage Factory, Manufacturing Plant	Showroom Location:	Canada, Germany, South Africa, United States
Marketing Type:	New Product 2020	Warranty Of Core Components:	5 Years

Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	Bowl
Warranty:	1 Year
Productivity:	/
Weight (kg):	1200 Kg
Bowl Diameter:	186 - 720 Mm
L/D:	3.0 - 5.5
Bowl Speed:	2000 - 6000 Rpm
G-forcee:	1600 - 4000 G
Weight:	600 - 8000 Kg, 1200
Primary Motor:	5.5 - 132 Kw
Secondary Motor:	2.2 - 45 Kw
Material:	EN 1.4462 / 1.4362 / 1.4410 / 1.4501 / AISI 304 / 316 / 316L
Noise:	< 88 DB
Condition:	New
Applicable Industries:	Construction Works , Energy & Mining, Food & Beverage Factory, Manufacturing Plant
Showroom Location:	Canada, Germany, South Africa, United States
Marketing Type:	New Product 2020
Warranty Of Core Components:	5 Years

Classifying Mini Decanter Centrifuge 1.2T Olive Oil 3 Phase Decanter Centrifuge

Premium centrifugal separation solutions from Chinese technology leader, established since 1954

Product Specifications

Bowl diameter: 186 - 720 mm

L/D: 3.0 - 5.5

Bowl speed: 2000 - 6000 rpm

G-force: 1600 - 4000 g

Weight: 600 - 8000 Kg

Primary motor: 5.5 - 132 Kw

Secondary motor: 2.2 - 45 Kw

Material: EN 1.4462 / 1.4362 / 1.4410 / 1.4501 / AISI 304 / 316 / 316L

Noise: < 88 dB

Key Features

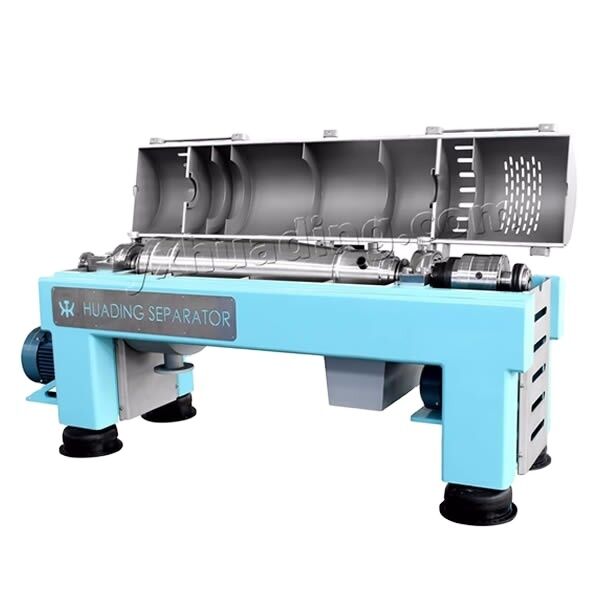

The rotating assembly of these decanter tricanter centrifuges is mounted on a compact, in-line frame with main bearings at both ends. Vibration dampers are positioned under the frame, and the rotating components are enclosed within a protective casing featuring integrated outlets for both solids and liquid separation.

Quality Assurance & Certifications

JB/T502-2015 Chinese national standard for decanter centrifuges
2006/42/EC Machinery Directive compliance
2014/35/EU Low Voltage Directive compliance
2014/30/EU Electromagnetic Compatibility Directive compliance
ISO9001-2000 Quality Management System certified

Working Principle

2-Phase Separation Process

1. Feed
2. Liquid phase
3. Solids phase
4. Pond
5. Dry beach

The feed suspension enters through an inlet pipe into the conveyor's feed zone, where it accelerates and directs into the bowl interior. Settled solids are conveyed axially toward the small end of the bowl by the screw conveyor, which rotates at a differential speed. Solids are lifted from the pond along the dry beach and discharged through ports into the casing collection chamber. The liquid phase forms a hollow cylinder due to centrifugal force and flows toward the large end, overflowing adjustable plate dams into the centrate chamber for discharge.

3-Phase Separation Process

0. Feed
1. Light liquid phase
2. Heavy liquid phase
3. Solids phase

The light liquid phase discharges through radial holes in the large end hub, while the heavy liquid phase exits through axial holes. Liquid levels are controlled by plate dams, with a separating plate preventing light liquid from mixing with heavy liquid discharge. Solids are discharged conventionally through established processes.

Construction Materials

The bowl, conveyor, inlet tube, outlets, cover, and all process-contact components are constructed from stainless steel. Discharge ports, conveyor flights, and feed zones feature erosion-resistant protective materials. The frame utilizes mild steel with durable epoxy enamel finish.

Wear Protection Options

Huading Separator provides comprehensive wear protection solutions for decanter centrifuges, including:

Welded hard facing or spray coating
Ceramic protection
Tungsten carbide tiles
Chilled hard metal port castings
Plastic liners

Drive System Configurations

One Motor Drive

Simple, cost-effective design ideal for applications with constant solids volume, easy conveyance, and moderate residual water content requirements. Features belt-driven input shaft with easily replaceable pulleys for speed adjustment.

Two Motor Drive

Enables cost-effective differential speed regulation across wide ranges. Secondary motor drives gear input shaft, allowing easy speed adjustment via motor control. Suitable for fluctuating solids volumes, difficult conveyance conditions, and stringent residual water requirements.

Hydro Drive

Similar functionality to two motor drive but utilizes rotating hydromotor with hydraulic regulation from pump unit. Enables automatic regulation through proportional oil quantity control.

Technical Specifications

Bowl ID (mm)	Bowl Speed (rpm)	L/D	G-Force	Capacity (m³/h)	Solids Removal (m³/h)	Primary Motor (Kw)	Weight (Kg)	Dimension (mm)
250	4800~5400	3.0~5.0	2000~3500	3~5	0.4	11	760	1600×1100×850
300	4200~4600	3.0~5.0	2000~3500	3~15	0.8	11~15	1500	2470×1230×850
350	3700~4200	3.0~5.0	2000~3500	5~20	1.2	5~22	2000	2790×1300×880
400	3200~3900	3.0~4.8	2000~3500	5~30	2	18.5~30	2600	2950×1400×850
450	3000~3700	3.0~5.0	2000~3500	5~45	2.5	22~37	3200	3300×1500×920
530	2700~3450	3.0~5.0	2000~3500	10~80	5	30~55	5200	3730×1600×1100
580	2600~3300	3.0~5.0	2000~3500	10~90	6	45~75	6900	4000×1400×1600
650	2400~3100	3.0~5.0	2000~3500	20~105	8	37~90	8200	4300×1900×1350
760	2200~2900	3.0~5.0	2000~3500	30~120	12	55~135	12000	5000×2500×1500
900	1800~2600	3.0~5.0	2000~3500	40~180	16	75~160	18000	6500×2700×1500

After-Sales Service & Support

Technical Services

Professional installation and debugging guidance
Comprehensive operator and maintenance personnel training

Training Programs

Separator working principles and structural overview
Operational regulations and safety precautions
Comprehensive maintenance procedures

Industry Experience

With nearly 60 years of centrifuge development and manufacturing expertise, Huading Separator stands as a leading Chinese manufacturer. Our extensive experience and specialized knowledge in continuous separation applications surpass industry standards.

For detailed technical information and specifications, please visit: huading-separator.com
