Name: Automatic Sludge Discharge Disc Stack Separator Industrial Wastewater Treatment Centrifuge 15-25m³/h SS304 Bowl
Brand: YIXING HUADING MACHINERY CO.,LTD.
SKU: DSS-450W
Price: 35.00 USD
Availability: InStock

Home > Products > Disc Stack Separator >

Automatic Sludge Discharge Disc Stack Separator Industrial Wastewater Treatment Centrifuge 15-25m³/h SS304 Bowl

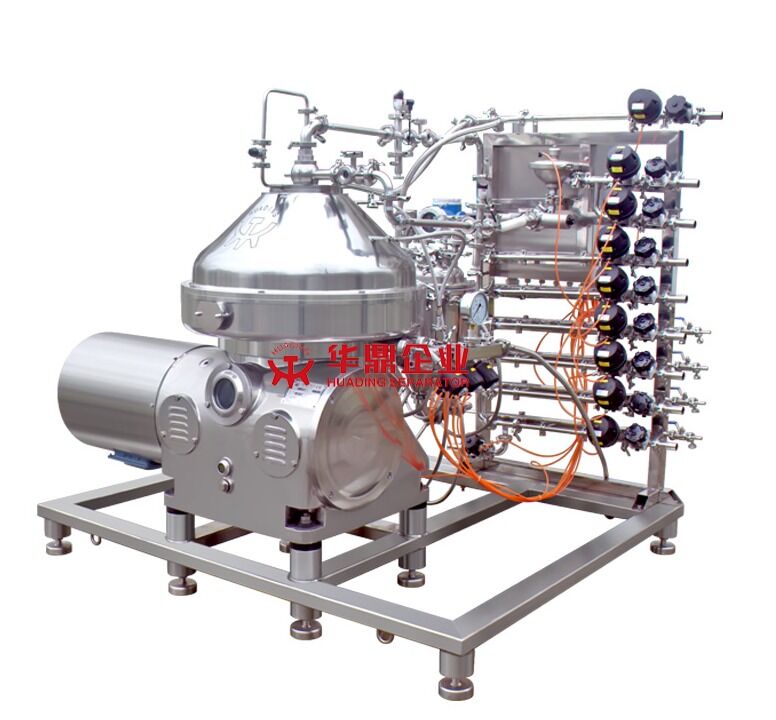

Automatic sludge discharge disc stack separator

Industrial wastewater treatment centrifuge SS304

Disc stack separator 15-25m³/h capacity

Place of Origin:

Liaoning, China

Brand Name:

WNRLN

Certification:

ISO 9001:2015, CE

Model Number:

DSS-450W

Chat Now

Request A Quote

Product Details

Bowl Diameter:

450mm

Bowl Speed:

6500 RPM

Capacity:

15-25 M³/h

Motor Power:

22 KW

Discharge Method:

Automatic Partial Discharge

Bowl Material:

SS304 Stainless Steel

Separation Factor:

≥ 10,600 G

Control System:

PLC With 7-inch HMI

Highlight:

Automatic sludge discharge disc stack separator

Industrial wastewater treatment centrifuge SS304

Disc stack separator 15-25m³/h capacity

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

USD 25,000 - 45,000 / Set

Packaging Details

Export-standard plywood case with vacuum-sealed moisture barrier and shock-proof foam padding

Delivery Time

30-45 working days after deposit

Payment Terms

T/T,L/C

Supply Ability

50 Sets per Month

Automatic Sludge Discharge Disc Stack Separator for Industrial Wastewater Treatment

This disc stack separator is engineered for high-efficiency solid-liquid separation in industrial wastewater treatment applications. With an automatic sludge discharge system and SS304 stainless steel construction, it delivers reliable continuous operation with minimal manual intervention. The PLC-controlled separation process ensures consistent effluent quality, making it an ideal choice for chemical plants, textile mills, paper manufacturing, and metal processing facilities.

Key Features

Automatic Sludge Discharge: Self-cleaning bowl mechanism with timed or turbidity-triggered discharge cycles reduces downtime and labor costs
SS304 Stainless Steel Bowl: Corrosion-resistant construction suitable for aggressive industrial wastewater with pH range 4-12
PLC Intelligent Control: Touch-screen HMI with programmable separation parameters, fault diagnostics, and remote monitoring capability
High Separation Efficiency: Achieves over 98% solid removal rate with adjustable separation clarity via interchangeable gravity discs
Continuous Operation Design: 24/7 duty cycle rated with automatic lubrication system and bearing temperature monitoring

Technical Specifications

Parameter	Value
Bowl Diameter	450mm
Bowl Speed	6500 RPM
Capacity	15-25 m³/h
Motor Power	22 kW
Discharge Method	Automatic Partial Discharge
Bowl Material	SS304 Stainless Steel
Separation Factor	≥ 10,600 G
Control System	PLC with 7-inch HMI Touch Screen

Applications

Chemical industry wastewater treatment
Textile dyeing wastewater clarification
Paper mill white water recycling
Metal processing coolant recovery
Municipal sludge dewatering pretreatment
