Name: Food Grade 316L Stainless Steel Disc Stack Separator Beverage Clarification Centrifuge 5-10m³/h CIP System
Brand: YIXING HUADING MACHINERY CO.,LTD.
SKU: DSS-350F
Price: 26.00 USD
Availability: InStock

Home > Products > Disc Stack Separator >

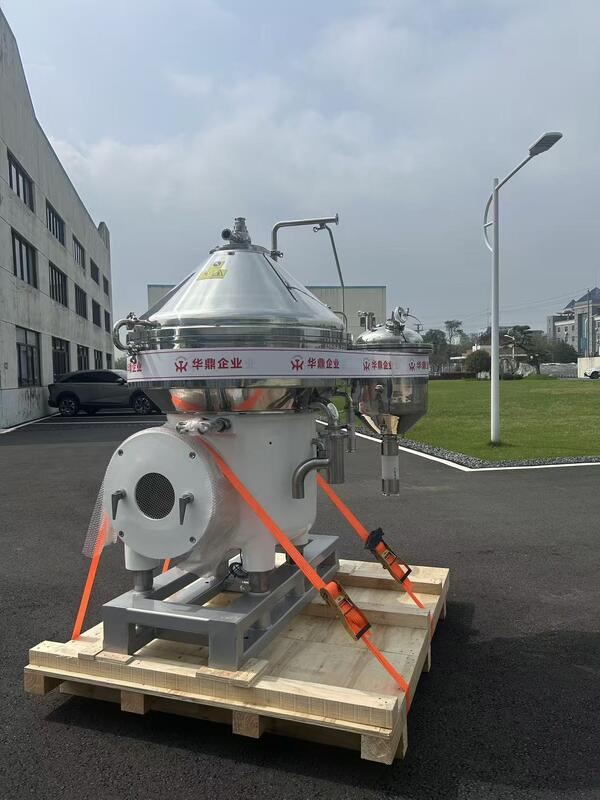

Food Grade 316L Stainless Steel Disc Stack Separator Beverage Clarification Centrifuge 5-10m³/h CIP System

Food grade 316L stainless steel disc stack separator

Beverage clarification centrifuge 5-10m³/h

Disc stack separator with CIP system

Place of Origin:

Liaoning, China

Brand Name:

WNRLN

Certification:

ISO 9001:2015, CE, FDA Compliant Materials

Model Number:

DSS-350F

Chat Now

Request A Quote

Product Details

Bowl Diameter:

350mm

Bowl Speed:

7200 RPM

Capacity:

5-10 M³/h

Motor Power:

15 KW

Discharge Method:

Manual Solids Holding Bowl

Product Contact Material:

316L Stainless Steel

Surface Finish:

Ra ≤ 0.8μm (electropolished)

Cleaning System:

Integrated CIP

Highlight:

Food grade 316L stainless steel disc stack separator

Beverage clarification centrifuge 5-10m³/h

Disc stack separator with CIP system

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

USD 18,000 - 35,000 / Set

Packaging Details

Export-standard plywood case with vacuum-sealed moisture barrier, foam padding, and desiccant packs

Delivery Time

25-35 working days after deposit

Payment Terms

T/T,L/C

Supply Ability

30 Sets per Month

Food Grade 316L Stainless Steel Disc Stack Separator for Beverage Industry

This food grade disc stack separator is purpose-built for the beverage processing industry, featuring full 316L stainless steel construction on all product-contact surfaces. Designed for high-clarity separation of fruit juices, beer, wine, dairy products, and plant-based beverages, it combines exceptional hygiene standards with efficient solids removal. The integrated CIP (Clean-in-Place) system enables automated cleaning cycles without disassembly, ensuring compliance with HACCP, FDA, and EU food safety regulations.

Key Features

316L Food Grade Construction: All wetted parts in 316L stainless steel with electropolished surface finish Ra ≤ 0.8μm, preventing bacterial adhesion and product contamination
Integrated CIP System: Fully automated clean-in-place with programmable wash cycles using caustic, acid, and rinse sequences, reducing cleaning time by 70%
Hermetic Design: Closed separation chamber prevents oxygen pickup and aroma loss, preserving product freshness and extending shelf life
Gentle Product Handling: Low-shear inlet design and optimized disc stack geometry protect delicate beverage compounds and prevent emulsification
Hygienic Connections: Tri-clamp (DIN 32676) fittings throughout for tool-free disassembly and full drainability

Technical Specifications

Parameter	Value
Bowl Diameter	350mm
Bowl Speed	7200 RPM
Capacity	5-10 m³/h
Motor Power	15 kW
Discharge Method	Manual (solids holding bowl)
Product Contact Material	316L Stainless Steel
Surface Finish	Ra ≤ 0.8μm (electropolished)
Cleaning System	Fully Integrated CIP
Gasket Material	EPDM (FDA compliant)

Applications

Fruit juice clarification (apple, orange, grape, berry)
Beer wort separation and green beer clarification
Wine must clarification and lees removal
Dairy whey separation and milk standardization
Plant-based beverage (soy, almond, oat) solids removal
