Name: Edible Oil Refining Disc Oil Separator Cooking Oil Degumming Dewaxing Centrifuge Machine 5000-10000 L/H Continuous
Brand: YIXING HUADING MACHINERY CO.,LTD.
SKU: DOS-500E
Price: 36.00 USD
Availability: InStock

Home > Products > Disc Oil Separator >

Edible Oil Refining Disc Oil Separator Cooking Oil Degumming Dewaxing Centrifuge Machine 5000-10000 L/H Continuous

Edible Oil Refining Disc Separator

Cooking Oil Degumming Centrifuge Machine

Continuous Dewaxing Oil Separator 10000 L/H

Place of Origin:

Liaoning, China

Brand Name:

WNRLN

Certification:

ISO 9001:2015, CE

Model Number:

DOS-500E

Chat Now

Request A Quote

Product Details

Bowl Diameter:

500mm

Bowl Speed:

6000 RPM

Capacity:

5000-10000 L/H

Motor Power:

30 KW

Discharge Method:

Automatic Partial Discharge

Bowl Material:

SAF 2205 Duplex Stainless Steel

Operating Temperature:

5-95°C

Separation Factor:

≥ 10,000 G

Highlight:

Edible Oil Refining Disc Separator

Cooking Oil Degumming Centrifuge Machine

Continuous Dewaxing Oil Separator 10000 L/H

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

USD 25,000 - 48,000 / Set

Packaging Details

Export-standard plywood case with vacuum-sealed moisture barrier, anti-rust treatment, and shock-proof foam padding

Delivery Time

30-45 working days after deposit

Payment Terms

T/T,L/C

Supply Ability

35 Sets per Month

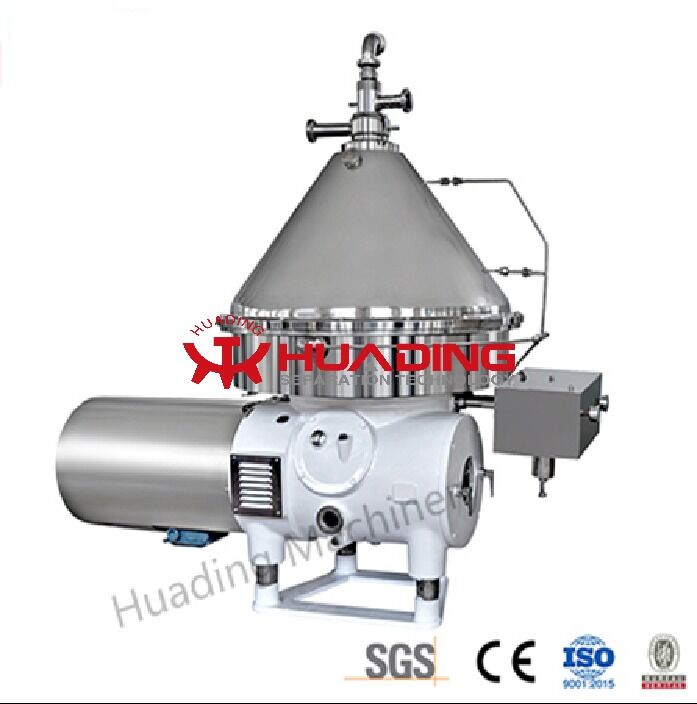

Continuous Disc Oil Separator for Edible Oil Refining

This continuous disc oil separator is purpose-built for edible oil refining lines, handling critical degumming and dewaxing processes for cooking oils. Designed for sunflower oil, soybean oil, corn oil, rice bran oil, and cottonseed oil processing, it delivers 5000-10000 L/H throughput with automatic desludging. The duplex stainless steel construction provides exceptional resistance to phosphoric acid and caustic solutions used in refining, ensuring decades of reliable service in demanding edible oil production environments.

Key Features

Continuous Degumming Process: High-G centrifugal force efficiently removes phospholipid gums and hydrated impurities from crude oil, achieving phosphorus content below 10 ppm after separation
Effective Dewaxing: Optimized disc stack design maintains sharp separation interface at low temperatures (5-10°C) for wax crystal removal from sunflower and corn oils
Automatic Desludging: Timed partial discharge removes accumulated gums and wax sludge without interrupting the refining process, maintaining continuous production flow
Duplex Stainless Steel Bowl: SAF 2205 duplex stainless steel resists pitting and stress corrosion from acidic degumming agents, extending bowl service life significantly
Temperature-Controlled Process: Integrated heating jacket with PID control maintains optimal separation temperature for consistent viscosity and maximum separation sharpness

Technical Specifications

Parameter	Value
Bowl Diameter	500mm
Bowl Speed	6000 RPM
Capacity	5000-10000 L/H
Motor Power	30 kW
Discharge Method	Automatic Partial Discharge
Bowl Material	SAF 2205 Duplex Stainless Steel
Separation Factor	≥ 10,000 G
Operating Temperature	5-95°C
Control System	PLC with Touch Screen HMI

Applications

Sunflower oil water degumming and acid degumming
Soybean oil phospholipid removal
Corn oil wax removal (winterization)
Rice bran oil degumming and dewaxing
Cottonseed oil miscella refining pre-treatment
