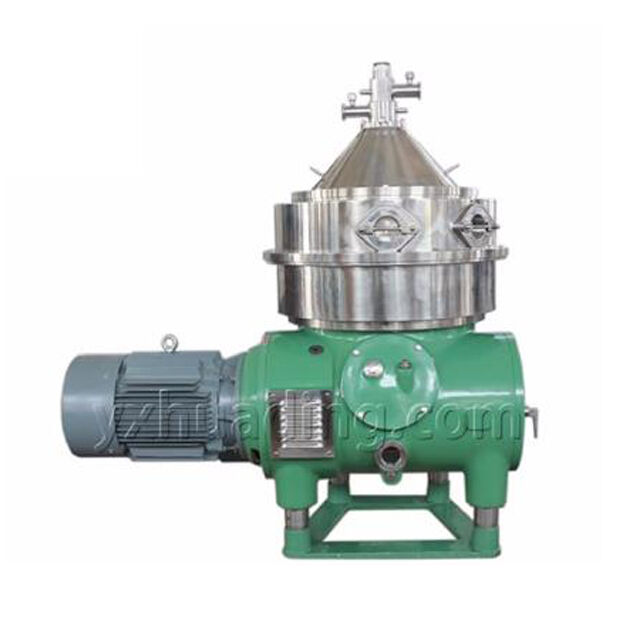

Hot Sale Food Industrial Centrifuge for Factory Use

415v disc centrifuge

6000l/h disc centrifuge

415v industrial centrifuge

Place of Origin:

Jiangsu, China

Brand Name:

HUADING

Chat Now

Request A Quote

Product Details

Product Type:

Other

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

Bowl

Voltage:

110 - 415V

Power(w):

4 - 90 Kw

Dimension(l*w*h):

2000*1200*1800mm

Warranty:

1 Year

Key Selling Points:

Capacity:

6000L/h

Weight (KG):

1500

Setting Speed:

6000RPM

After-sales Service Provided:

Overseas Service Center Available

Drive:

Gear / Belt

Bowl Speed:

4000 - 10000 Rpm

Centrifugal Force:

> 10,000 G

Bowl Volume:

8 - 300 L

Bowl Weight:

50-15000 Kg

Solids Holding Space:

2 - 50 L

Inlet Pressure:

0-0.1 Mpa

Liquid Outlet Pressure:

0.2-0.6 Mpa

Starting Time:

5 - 30 Mins

Highlight:

415v disc centrifuge

6000l/h disc centrifuge

415v industrial centrifuge

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$24,000-25,000 / set

Related Products

86-510-87836501

huading@yxhuading.com

Chat Now

Product Description

Hot Sale Food Industrial Centrifuge for Factory Use

The leading manufacturer of disc separator in China, since 1954

Technical Specifications

Specification	Value
Drive	gear / belt
Bowl speed	4000 - 10000 rpm
Centrifugal force	> 10,000 g
Bowl volume	8 - 300 L
Bowl weight	50-15000 Kg
Solids holding space	2 - 50 L
Inlet pressure	0-0.1 Mpa
Liquid outlet pressure	0.2-0.6 Mpa
Starting time	5 - 30 mins
Stopping time (no brakes)	> 40 mins
Product Keywords	food industrial centrifuge

Company Overview

Huading Separator can look back on more than 60 years of tradition. Today, the company is the leading manufacturer in mechanical separating technology in China. Its developments are used in a wide range of areas - in the beverage and dairy industries, in recovering and processing oils and fats, as well as in chemicals, , biotechnology and starch technology. Other applications include marine engineering, energy, oil fields and industry. The ecological dimension is particularly noticeable in the field of environmental technology. Based on this extensive experience over many years, Huading Separator develops and builds customized centrifuges. If required by the customer, we can also supply entire process lines, incorporating all the components.

Compliance Standards

JB / T 8103 standards - Chinese national standard of disc centrifuge
2006/42/EC (Machinery)
2014/35/EU (Low Voltage)
2014/30/EU (Electromagnetic Compatibility)
Quality management system of ISO9001-2000

Centrifugal Separation Technology

The disc stack separator separates solids and one or two liquid phases from each other in one single continuous process, using extremely high centrifugal forces. When the denser solids are subjected to such forces, they are forced outwards against the rotating bowl wall, while the less dense liquid phases form concentric inner layers. The area where these two different liquid phases meet is called the interface position. This can be easily varied in order to ensure that the separation takes place with maximum efficiency. Inserting special plates (the "disc stack") provides additional surface settling area, which contributes to speeding up the separation process dramatically. It is the particular configuration, shape and design of these plates that make it possible for a disc stack centrifuge to undertake the continuous separation of a wide range of different solids from either one or two liquids. The concentrated solids phase formed by the particles can be removed continuously, intermittently or manually, depending on centrifuge type and the amount of solids involved in the specific application.

2-Phase Separation Disc Stack Centrifuge

Process Flow:

1 Feed
2 Discharge
3 Inlet tube
4 Disc stack
5 Solids holding space
6 Centripetal pump chamber
7 Centripetal pump

Separation takes place inside a rotating bowl. The feed is introduced to the rotating centrifuge bowl from the top via a stationary inlet pipe, and is accelerated in the distributor, before entering the disc stack. The distributor is designed especially to ensure smooth acceleration of the feed liquid. The separation of liquid-solids takes place between the discs, with the liquid phase moving through the disc stack to the centre and is led to the paring chamber, where it is pumped out of the bowl by means of a built-in paring disc. The solids is collected in the periphery, from where it is discharged intermittently into the solids collecting cover. The solids discharge is achieved by a hydraulic system which at pre-set suitable intervals forces the sliding piston to drop down and thus opening the solids ports at the bowl periphery.

3-Phase Separation Disc Stack Centrifuge

Process Flow:

1 Inlet tube
2 Central bore
3 Distributor
4 Distributor bore
5 Rising channels
6 light phase centripetal pump
7 heavy phase centripetal pump

The suspension to be separated is fed into the separator bowl from the top through a feeding pipe and enters the disc stack. The heavy phase and heavy sludge are forced towards the periphery of the bowl, while the light phase flows towards the centre of the bowl, from where it is pumped out for further processing. The heavy phase is led over a top disc into a chamber where a paring device pumps it out of the separator. Solids collects in the sludge space and is discharged intermittently and automatically. The discharge is achieved by a hydraulic system, which at preset suitable intervals forces the sliding piston to drop down, thus opening the solids ports at the bowl periphery. The solids is collected in the frame, and leaves the centrifuge via a cyclone.

Self-Cleaning Centrifuge Types

Usually, self-cleaning disc stack centrifuge separator is divided into two types. One is used for solids and two liquid phases from each other in one single continuous process, it is so called purifier. The other is used for solids and one liquid phase from each other, it is so called clarifier.

Product Gallery
