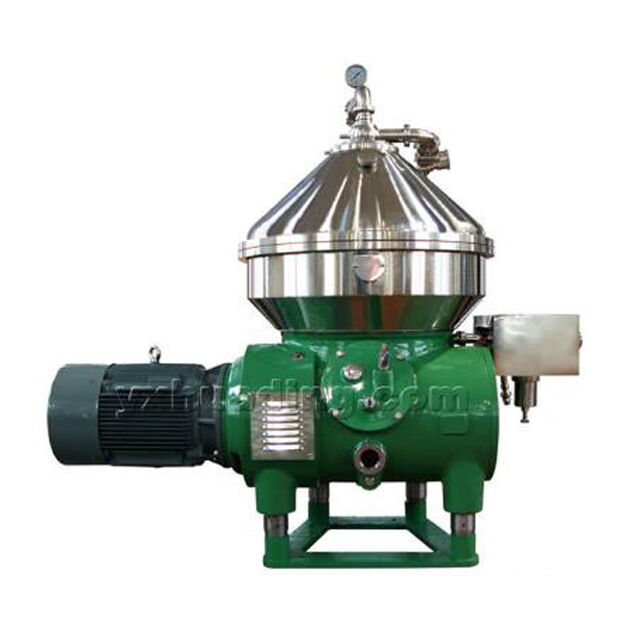

6000l/H 1500kg Disc Stack Separator Industrial Juice 2 Phase Centrifuge

Product Details

Place of Origin: Jiangsu, China

Brand Name: HUADING

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $10,000-20,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    6000L/h Disc Stack Separator, 1500KG Disc Stack Separator, Juice 2 phase centrifuge


Product Type:	Other	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	Bowl
Voltage:	110 - 415V	Power(w):	4 - 90 Kw
Dimension(lwh):	200012001800mm	Warranty:	1 Year
Key Selling Points:	/	Capacity:	~6000L/h
Weight (KG):	1500	Setting Speed:	6000RPM
After-sales Service Provided:	Overseas Service Center Available	Drive:	Gear / Belt
Bowl Speed:	4000 - 10000 Rpm	Centrifugal Force:	> 10,000 G
Bowl Volume:	8 - 300 L	Bowl Weight:	50-15000 Kg
Solids Holding Space:	2 - 50 L	Inlet Pressure:	0-0.1 Mpa
Liquid Outlet Pressure:	0.2-0.6 Mpa	Starting Time:	5 - 30 Mins

Product Type:	Other
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	Bowl
Voltage:	110 - 415V
Power(w):	4 - 90 Kw
Dimension(lwh):	200012001800mm
Warranty:	1 Year
Key Selling Points:	/
Capacity:	~6000L/h
Weight (KG):	1500
Setting Speed:	6000RPM
After-sales Service Provided:	Overseas Service Center Available
Drive:	Gear / Belt
Bowl Speed:	4000 - 10000 Rpm
Centrifugal Force:	> 10,000 G
Bowl Volume:	8 - 300 L
Bowl Weight:	50-15000 Kg
Solids Holding Space:	2 - 50 L
Inlet Pressure:	0-0.1 Mpa
Liquid Outlet Pressure:	0.2-0.6 Mpa
Starting Time:	5 - 30 Mins

6000l/H 1500kg Disc Stack Separator Industrial Juice 2 Phase Centrifuge

Brand new Chinese industrial disc stack centrifuge separator for juice processing from China's leading manufacturer.

Technical Specifications

Premium Industrial Centrifuge for Juice Processing

Leading manufacturer of disc separators in China with over 60 years of expertise since 1954.

Drive	Gear / Belt
Bowl Speed	4000 - 10000 rpm
Centrifugal Force	> 10,000 g
Bowl Volume	8 - 300 L
Bowl Weight	50 - 15000 Kg
Solids Holding Space	2 - 50 L
Inlet Pressure	0 - 0.1 Mpa
Liquid Outlet Pressure	0.2 - 0.6 Mpa
Starting Time	5 - 30 mins
Stopping Time (no brakes)	> 40 mins

Huading Separator brings over 60 years of tradition and expertise in mechanical separating technology. As China's leading manufacturer, our developments serve diverse industries including beverage and dairy processing, oil and fat recovery, chemicals, pharmaceuticals, biotechnology, starch technology, marine engineering, energy, oil fields, and environmental technology. We develop and build customized centrifuges and complete process lines tailored to customer requirements.

Quality Standards & Compliance

JB/T 8103 standards - Chinese national standard of disc centrifuge
2006/42/EC (Machinery)
2014/35/EU (Low Voltage)
2014/30/EU (Electromagnetic Compatibility)
Quality management system of ISO9001-2000

Centrifugal Separation Technology

The disc stack separator efficiently separates solids and one or two liquid phases in a single continuous process using extremely high centrifugal forces. Denser solids are forced outward against the rotating bowl wall while less dense liquid phases form concentric inner layers. The interface position between liquid phases can be adjusted for maximum separation efficiency. Special disc stack plates provide additional surface settling area, dramatically accelerating the separation process. The specific configuration, shape, and design of these plates enable continuous separation of various solids from one or two liquids. Concentrated solids can be removed continuously, intermittently, or manually based on centrifuge type and application requirements.

2-Phase Separation System

Process Flow:
1. Feed introduction via stationary inlet pipe
2. Liquid discharge through centripetal pump
3. Feed acceleration in distributor
4. Separation in disc stack
5. Solids collection in holding space
6. Centripetal pump chamber operation
7. Centripetal pump discharge

Separation occurs inside the rotating bowl with feed introduced from the top. The distributor ensures smooth acceleration before entering the disc stack. Liquid-solid separation happens between discs, with liquid moving to the center and pumped out via paring disc. Solids collect in the periphery and discharge intermittently through a hydraulic system that opens solids ports at preset intervals.

3-Phase Separation System

Components:
1. Inlet tube for suspension feed
2. Central bore distribution
3. Distributor mechanism
4. Distributor bore channels
5. Rising phase channels
6. Light phase centripetal pump
7. Heavy phase centripetal pump

Suspension enters through the feeding pipe into the disc stack. Heavy phase and sludge move toward the bowl periphery while light phase flows toward the center for discharge. Heavy phase is directed over a top disc into a chamber where a paring device pumps it out. Solids collect in the sludge space and discharge intermittently via hydraulic system, exiting through a cyclone. Self-cleaning disc stack centrifuges are categorized as purifiers (solids and two liquid phases) or clarifiers (solids and one liquid phase).
