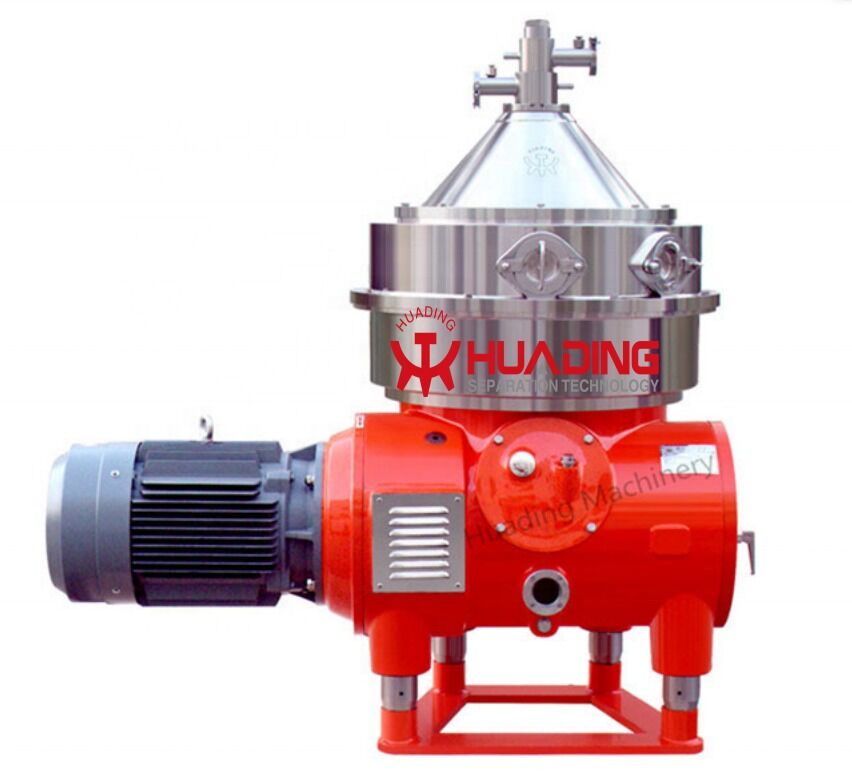

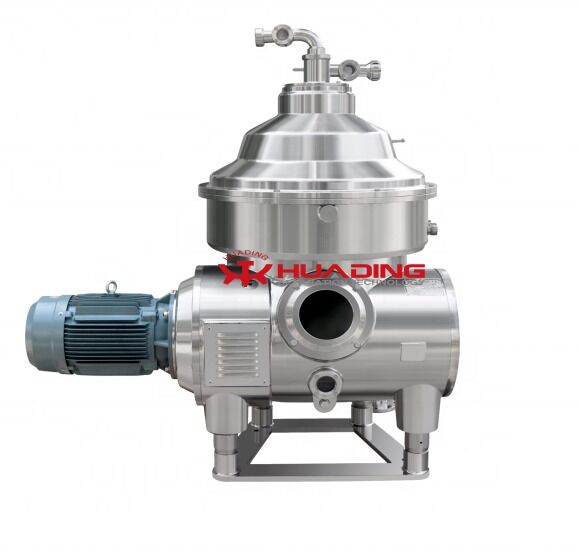

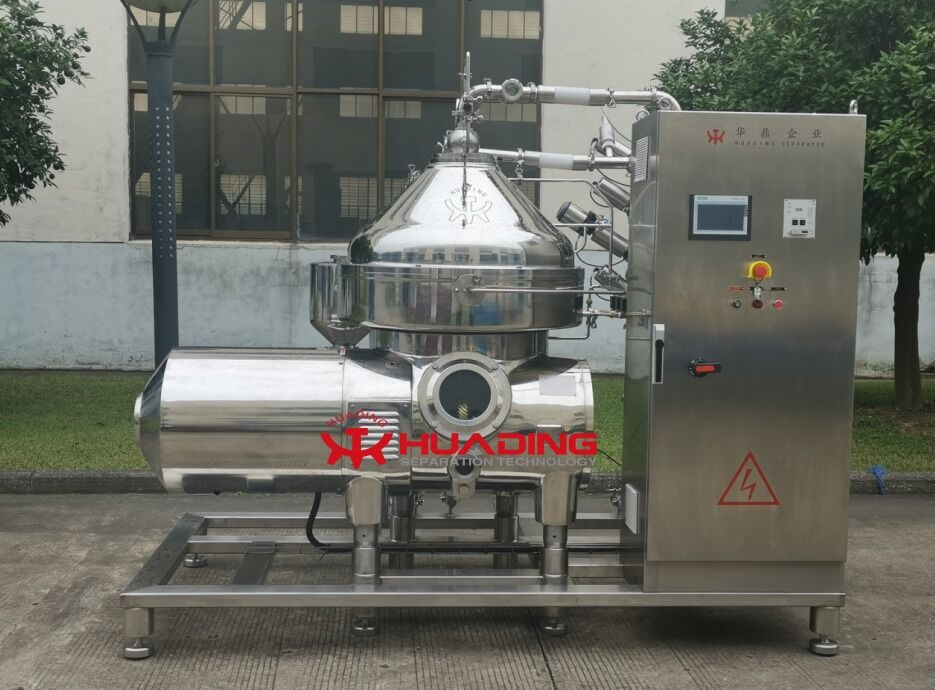

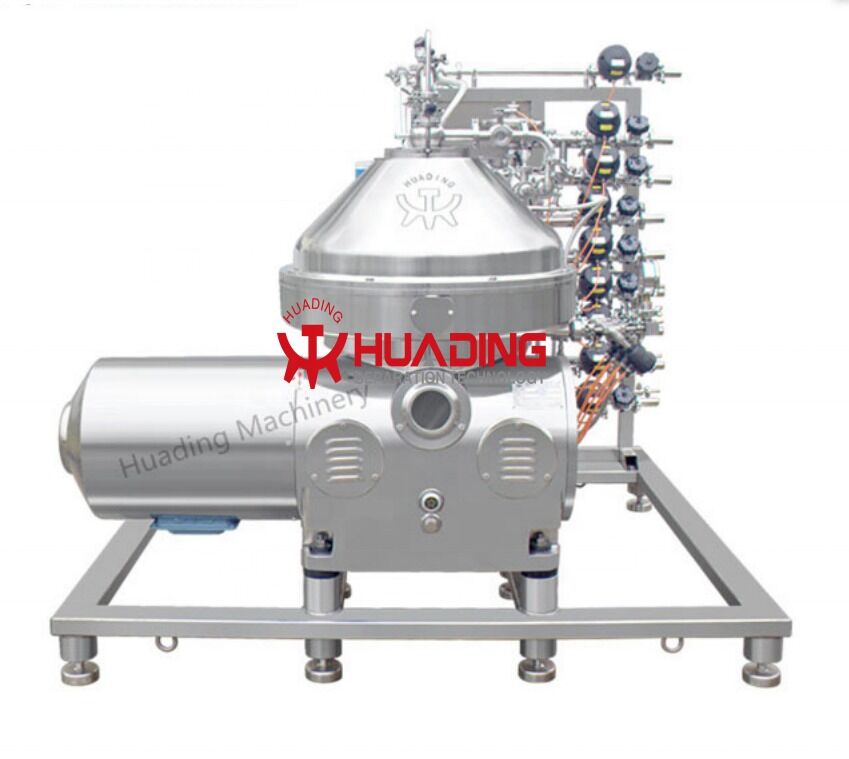

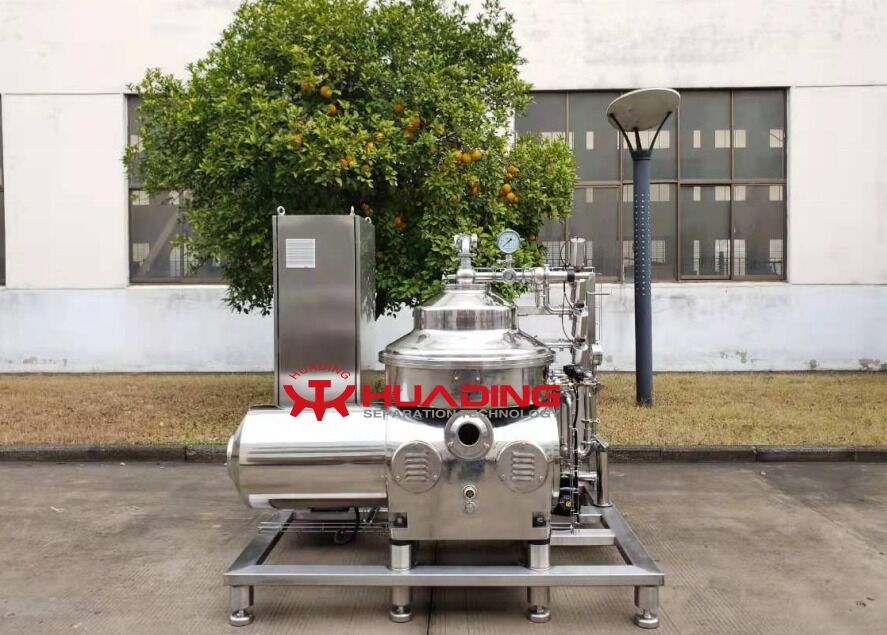

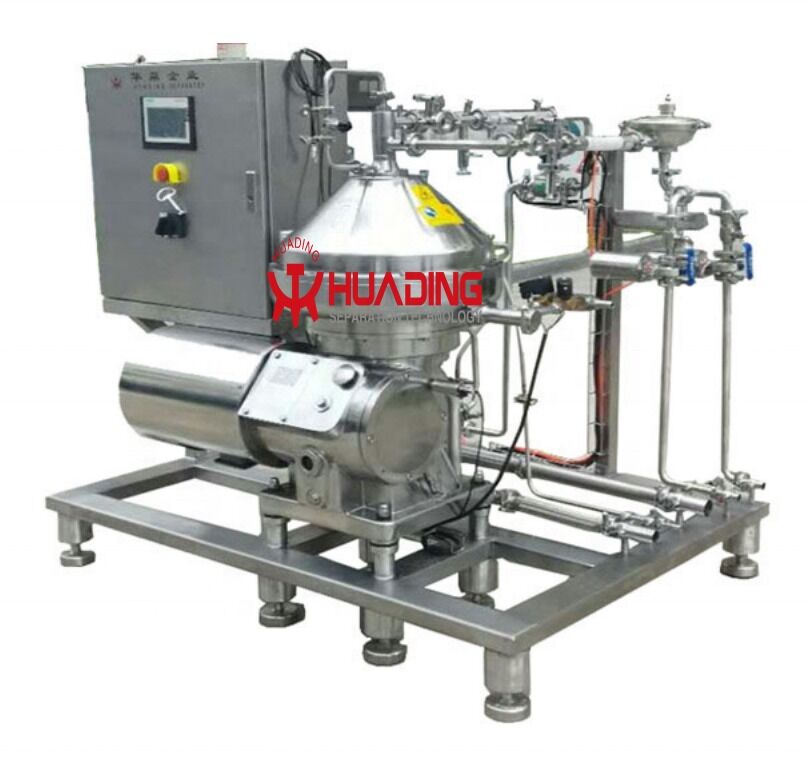

2000L 3000L Yeast Centrifugal Separator Fruit Wine Clarify Disk Stack Centrifuge

Product Details

Place of Origin: Jiangsu, China

Brand Name: Huading

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $20,000-21,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                    2000L Yeast Centrifugal Separator, 3000L Yeast Centrifugal Separator, Fruit Wine Disk Stack Centrifuge


Processing:	Fermenting Equipment	Weight:	1200 KG
Warranty:	1 Year	Machinery Capacity:	300 L, 500 L, 800 L, 1000 L, 2000L, 3000L, 5000L, 10000L, 20000L
Machinery Test Report:	Provided	Core Components:	Gearbox, Motor, Gear, Pump, PLC, Bearing, Engine
Key Selling Points:	Automatic	Video Outgoing-inspection:	Provided
Bowl Material:	EN 1.4418, 1.4462, 1.4410	Applicable Industries:	Manufacturing Plant, Food & Beverage Factory
Showroom Location:	France, Pakistan	Condition:	New
Warranty Of Core Components:	1 Year	Marketing Type:	Ordinary Product

Processing:	Fermenting Equipment
Weight:	1200 KG
Warranty:	1 Year
Machinery Capacity:	300 L, 500 L, 800 L, 1000 L, 2000L, 3000L, 5000L, 10000L, 20000L
Machinery Test Report:	Provided
Core Components:	Gearbox, Motor, Gear, Pump, PLC, Bearing, Engine
Key Selling Points:	Automatic
Video Outgoing-inspection:	Provided
Bowl Material:	EN 1.4418, 1.4462, 1.4410
Applicable Industries:	Manufacturing Plant, Food & Beverage Factory
Showroom Location:	France, Pakistan
Condition:	New
Warranty Of Core Components:	1 Year
Marketing Type:	Ordinary Product

2000L 3000L Yeast Centrifugal Separator Fruit Wine Clarify Disk Stack Centrifuge

2000L 3000L Yeast Centrifugal Separator for Fruit Wine Clarification

High-performance disc stack centrifuge separator from China's leading manufacturer with over 60 years of experience in centrifugal separation technology.

Technical Specifications

Bowl Material	EN 1.4418, 1.4462, 1.4410
PLC	SIEMENS
HMI	SIEMENS
Frequency Inverter	ABB / SIEMENS
Bearing	SKF

Quality Certifications & Standards

ISO9001-2000 Quality Management System
JB/T502-2004 Industry Standards
One Year Warranty
Life-long Service Support
2006/42/EC (Machinery Directive)
2014/35/EU (Low Voltage Directive)
2014/30/EU (Electromagnetic Compatibility)

Centrifugal Separation Technology

The disc stack separator efficiently separates solids and one or two liquid phases in a single continuous process using extremely high centrifugal forces. Denser solids are forced outward against the rotating bowl wall while less dense liquid phases form concentric inner layers. The interface position between phases can be adjusted for maximum separation efficiency. Special plates in the disc stack provide additional surface area, dramatically accelerating the separation process and enabling continuous separation of various solids from liquids.

2-Phase Separation Process

Separation occurs inside a rotating bowl where feed material is introduced via a stationary inlet pipe. The liquid phase moves through the disc stack to the center and is pumped out, while solids collect in the periphery and are discharged intermittently through a hydraulic system that opens solids ports at preset intervals.

3-Phase Separation Process

In three-phase separation, the suspension enters the disc stack with heavy phase and sludge moving toward the bowl periphery while light phase flows toward the center. Both phases are pumped out separately, and solids are automatically discharged at preset intervals through hydraulic-controlled ports.

Manufacturing Excellence

Huading Separator maintains rigorous manufacturing standards with comprehensive quality control throughout production.

Quality Certifications

All products pass rigorous inspection standards including CE and ISO certifications with 100% quality assurance.

Why Choose Huading Separator

Huading Separator is a market leader in centrifugal separation technology with over six decades of expertise in developing and manufacturing centrifugal separation equipment.

60+ Years Experience

For more than 60 years, Huading Separator has been developing and manufacturing disc stack centrifuges.

40,000+ Installations

Since 1954, over 40,000 centrifuges from Huading Separator have been installed in more than 50 countries worldwide.

100+ Centrifuge Models

To satisfy diverse customer demands, more than 100 centrifuge models have been developed for various applications.

Global References

World-renowned manufacturers in food and pharmaceutical industries rely on Huading centrifugal separation technology.
