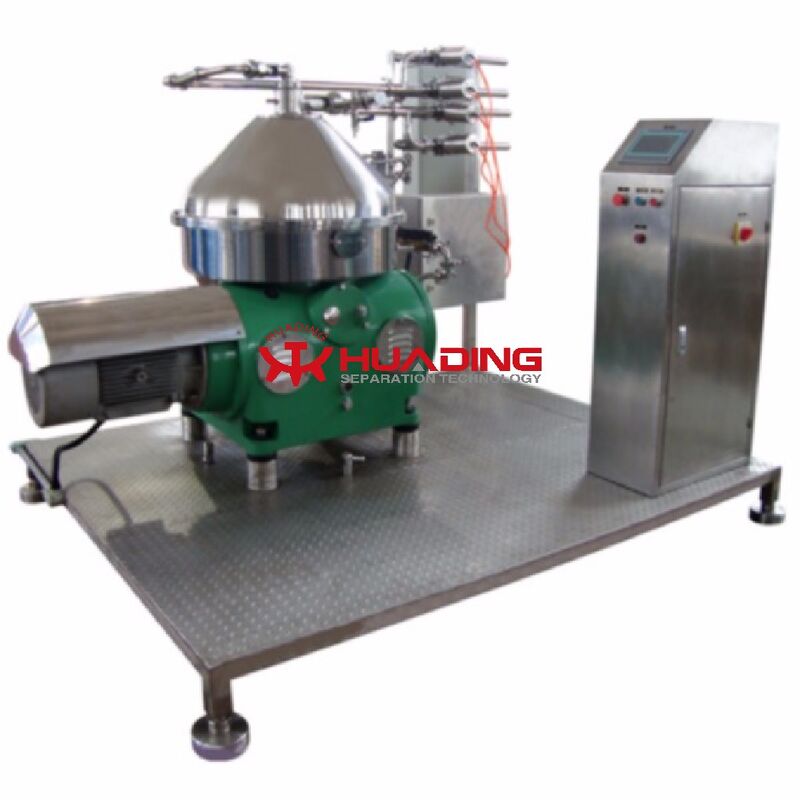

Factory Direct Price Sesame Oil Separator Quick Delivery

Product Details

Place of Origin: Jiangsu, China

Brand Name: HUADING

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $24,000-25,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                            oil disc centrifuge, oil disc stack separator


Product Type:	Separation Machine	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	Bowl
Voltage:	220 - 480	Power(w):	4 - 300
Dimension(lwh):	100015001800	Warranty:	1 Year
Key Selling Points:	Competitive Price	Capacity:	5000
Weight (KG):	1200	Setting Speed:	6000
Bowl Material:	EN 1.4418, 1.4462, 1.4410

Product Type:	Separation Machine
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	Bowl
Voltage:	220 - 480
Power(w):	4 - 300
Dimension(lwh):	100015001800
Warranty:	1 Year
Key Selling Points:	Competitive Price
Capacity:	5000
Weight (KG):	1200
Setting Speed:	6000
Bowl Material:	EN 1.4418, 1.4462, 1.4410

Factory Direct Price Sesame Oil Separator Quick Delivery

Factory Direct Price Sesame Oil Separator with Quick Delivery

High performance disc separator from Chinese leading manufacturer with over 60 years of experience since 1954.

Technical Specifications

Component	Specification
Bowl Material	EN 1.4418, 1.4462, 1.4410
PLC	SIEMENS
HMI	SIEMENS
Frequency Inverter	ABB / SIEMENS
Bearing	SKF

Quality Certifications & Standards

ISO9001-2000 Quality Management System
JB/T502-2004 Industry Standards
One Year Warranty
Life-long Service Support
2006/42/EC (Machinery Directive)
2014/35/EU (Low Voltage Directive)
2014/30/EU (Electromagnetic Compatibility)

Centrifugal Separation Technology

The disc stack separator separates solids and one or two liquid phases from each other in one single continuous process using extremely high centrifugal forces. When denser solids are subjected to these forces, they are forced outwards against the rotating bowl wall, while less dense liquid phases form concentric inner layers. The interface position where these liquid phases meet can be easily adjusted to ensure maximum separation efficiency. The disc stack configuration provides additional surface settling area, dramatically speeding up the separation process and enabling continuous separation of various solids from liquids.

2-Phase Separation Disc Stack Centrifuge

Process Flow: 1 Feed → 2 Discharge → 3 Inlet tube → 4 Disc stack → 5 Solids holding space → 6 Centripetal pump chamber → 7 Centripetal pump

Separation occurs inside a rotating bowl where feed is introduced from the top via a stationary inlet pipe and accelerated in the distributor before entering the disc stack. Liquid-solids separation takes place between the discs, with the liquid phase moving through the disc stack to the center and being pumped out via a built-in paring disc. Solids collect in the periphery and are discharged intermittently through a hydraulic system that opens solids ports at the bowl periphery.

3-Phase Separation Disc Stack Centrifuge

Process Flow: 1 Inlet tube → 2 Central bore → 3 Distributor → 4 Distributor bore → 5 Rising channels → 6 Light phase centripetal pump → 7 Heavy phase centripetal pump

Suspension is fed into the separator bowl from the top through a feeding pipe into the disc stack. The heavy phase and sludge move toward the bowl periphery while the light phase flows toward the center for pumping. Heavy phase is led over a top disc into a chamber where a paring device pumps it out. Solids collect in the sludge space and discharge intermittently via hydraulic system, then exit the centrifuge via a cyclone.

Self-cleaning disc stack centrifuges are categorized as purifiers (for solids and two liquid phases) and clarifiers (for solids and one liquid phase).

Manufacturing Process

Quality Certifications

All Huading Separator products pass rigorous inspection standards including CE and ISO certifications with 100% quality assurance.

Why Choose Huading Separator

Huading Separator is a market leader in centrifugal separating technology with over 60 years of experience developing and manufacturing centrifugal separation equipment.

60+

Years Experience in centrifuge development and manufacturing

40,000+

Centrifuges installed in 50+ countries since 1954

100+

Centrifuge models to satisfy diverse customer requirements

Global

Trusted by leading food and pharmaceutical manufacturers worldwide
