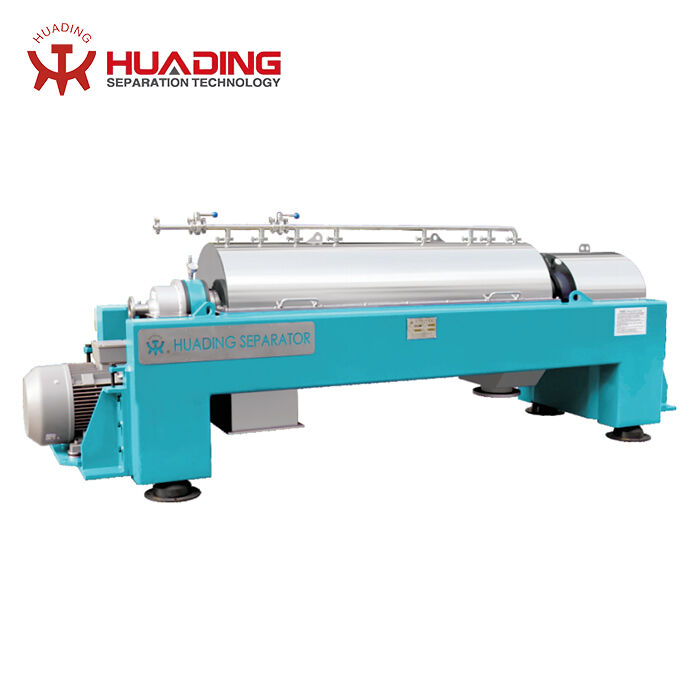

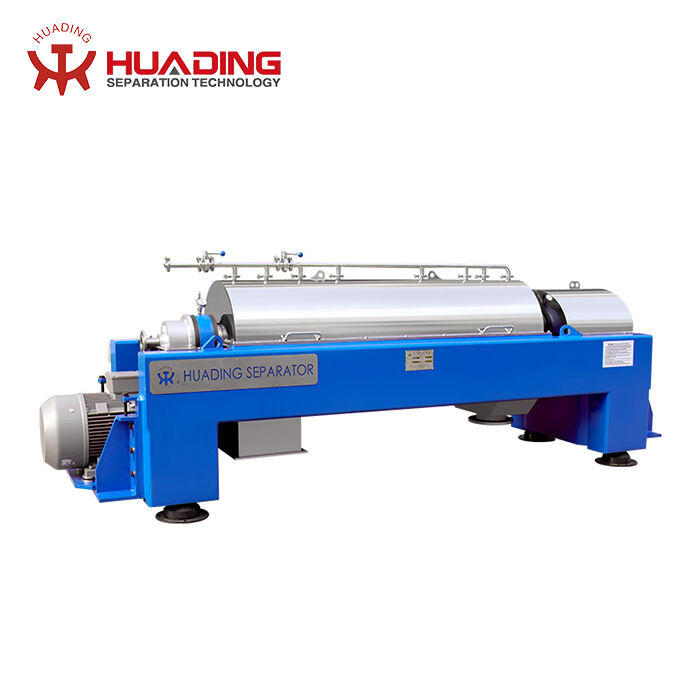

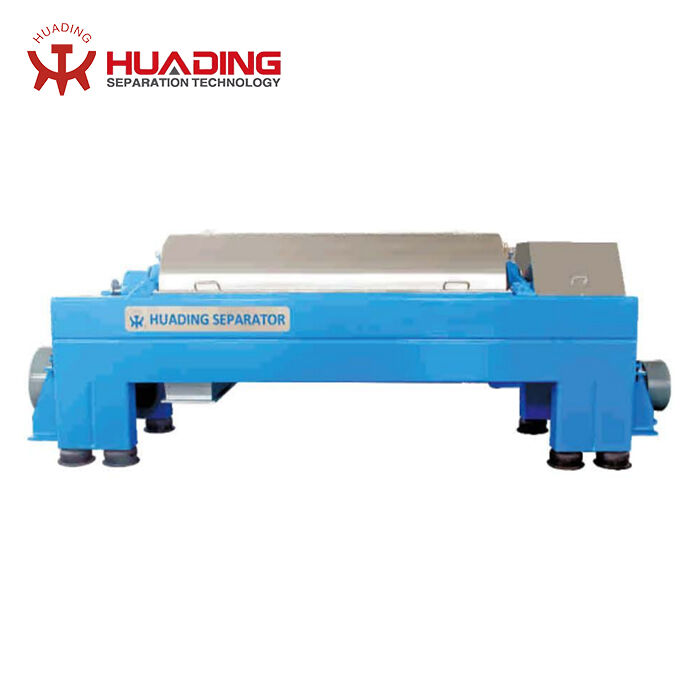

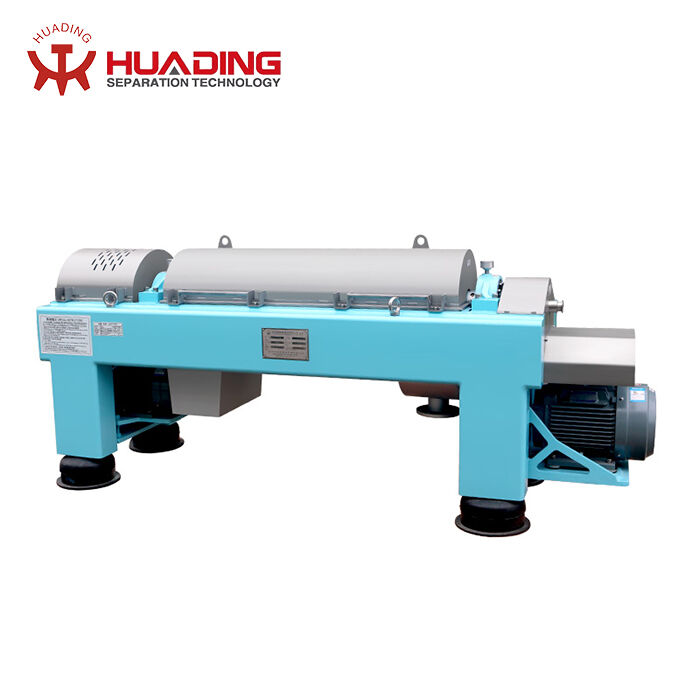

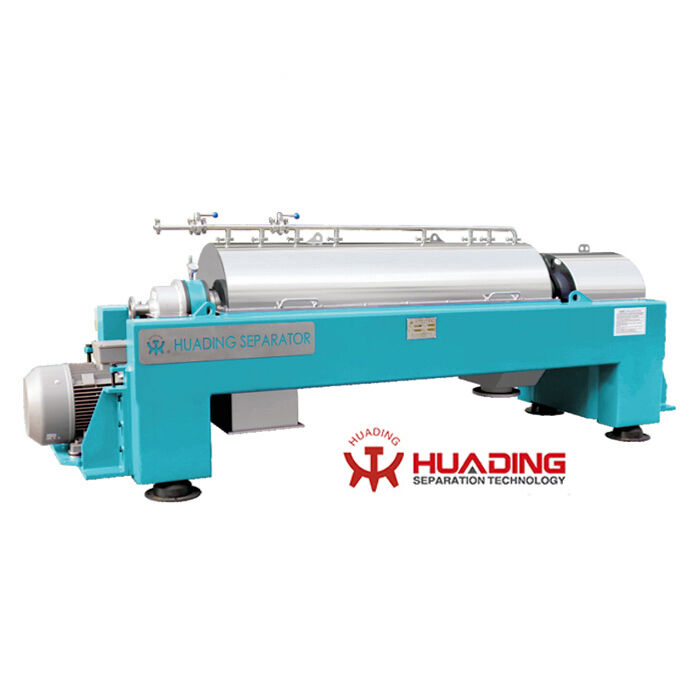

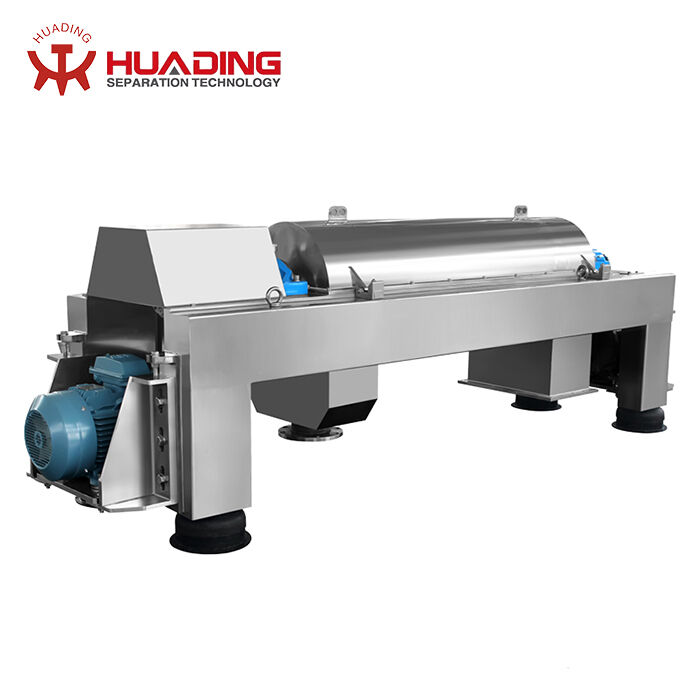

Fruit Extractor Separator Machine Three Phase Decanter Centrifugal Dewatering Centrifuge

Product Details

Place of Origin: Jiangsu, China

Brand Name: HUADING

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $24,000-25,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            480v dewatering centrifuge, 480v wastewater centrifuge dewatering


Product Type:	Centrifuge	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	PLC, Motor
Voltage:	110-480V Customized	Power(w):	4-300KW Customized
Dimension(lwh):	Depend On Models	Warranty:	1 Year
Key Selling Points:	Competitive Price	Capacity:	30000L/h
Weight (KG):	1500	Setting Speed:	3 000 RPM
MATERIAL:	SS304/316L/2205...	HMI:	SIEMENS
INVERTERS:	SIEMENS/ABB	Application:	Liquid Solid Separation
Electronic Parts:	SIEMENS/SCHNEIDER/CHINT	Control Cabinet:	PLASTIC SPRAY/STAINLESS STEEL
Type:	Centrifuge	Condition:	New
Marketing Type:	New Product 2020

Product Type:	Centrifuge
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	PLC, Motor
Voltage:	110-480V Customized
Power(w):	4-300KW Customized
Dimension(lwh):	Depend On Models
Warranty:	1 Year
Key Selling Points:	Competitive Price
Capacity:	30000L/h
Weight (KG):	1500
Setting Speed:	3 000 RPM
MATERIAL:	SS304/316L/2205...
HMI:	SIEMENS
INVERTERS:	SIEMENS/ABB
Application:	Liquid Solid Separation
Electronic Parts:	SIEMENS/SCHNEIDER/CHINT
Control Cabinet:	PLASTIC SPRAY/STAINLESS STEEL
Type:	Centrifuge
Condition:	New
Marketing Type:	New Product 2020

Fruit Extractor Separator Machine Three Phase Decanter Centrifugal Dewatering Centrifuge

Key Features

The rotating part of these decanter tricanter centrifuges is mounted on a compact, in-line frame, with main bearings at both ends. Vibration dampers are placed under the frame. The rotating part is enclosed in a casing with a cover and a bottom section with integrated outlets for both solids and the liquid being removed.

Quality Assurance & Certifications

JB/T502-2015 Chinese national standard of decanter centrifuge
2006/42/EC Machinery Directive
2014/35/EU Low voltage Directive
2014/30/EU Electromagnetic compatibility Directive
Quality management system of ISO9001-2000

Technical Specifications

Bowl Diameter	186-720mm
Bowl Length	744-3000mm
Bowl Speed	2000-6000rpm
G-Force	1600-4000g
Weight	600-8000kg
Primary Motor	5.5-132kw
Secondary Motor	2.2-45kw
Material	AISI 304/316/316L/duplex steel
Noise Level	<88db

Main Components

Frame
Gearbox
Primary motor
Secondary motor
Bowl
Screw
Hood

Separation Process

The feed enters the bowl through a stationary inlet tube and is accelerated smoothly by an inlet distributor. The centrifugal force that results from the rotation then causes sedimentation of the solids on the wall of the bowl.
Separation takes place in a horizontal cylindrical bowl equipped with a screw conveyor.
The conveyor rotates in the same direction as the bowl, but slightly slower, thus moving the solids towards the conical end of the bowl. The cake leaves the bowl through the solids discharge openings into casing.
The separation process runs through the bowl entire cylindrical section, clarified liquid is separated by adjustable overflow plate.

Drive System Options

One Motor Drive

This is a very simple design that is cost-effective to purchase and operate. One motor drive systems are used when the solids volume is constant, the solids are easy to convey, and requirements regarding residual water content are not stringent. The input shaft of the drive is set in motion by the main motor via a second belt drive, generating differential speed as a function of bowl speed and gear transmission.

Two Motor Drive

This system enables cost-effective differential speed regulation under good operating conditions with wide regulating ranges. The secondary motor sets the input shaft of the gear in motion and generates differential speed. Two motor drives are used when solid volumes fluctuate significantly, when solids are conveyed under difficult conditions, and when stringent requirements apply to residual water content.

Hydro Drive

This system operates similarly to the two motor drive but uses a rotating hydromotor supplied with hydraulic regulation by a pump unit instead of mechanical gear. Because differential speed is proportionate to the conveyed quantity of oil, automatic regulation can be provided without any problem.

Frequently Asked Questions

How can we visit your factory?

International visitors arriving at Shanghai Airport or domestic visitors arriving at Yixing Station will be provided with transportation to our facility.

How do you guarantee the quality of your products?

With over 60 years of experience, we implement strict quality policies using advanced processing machines, certified operators, and internationally renowned components. Comprehensive testing and inspections are conducted throughout production.

What payment methods does your company accept?

We accept most payment methods, with T/T being the primary method.

How long is the warranty period of your products?

12 months warranty coverage.

I have not done business with your company before, how can I trust your company?

We have been established on Alibaba for 14 years and can provide various business certificates and references.

What are your company's shipping terms and delivery time?

Each unit is custom manufactured with a delivery time of 60-90 days.

Do you give any discount?

We strive to provide the best possible value and pricing for all our customers.
