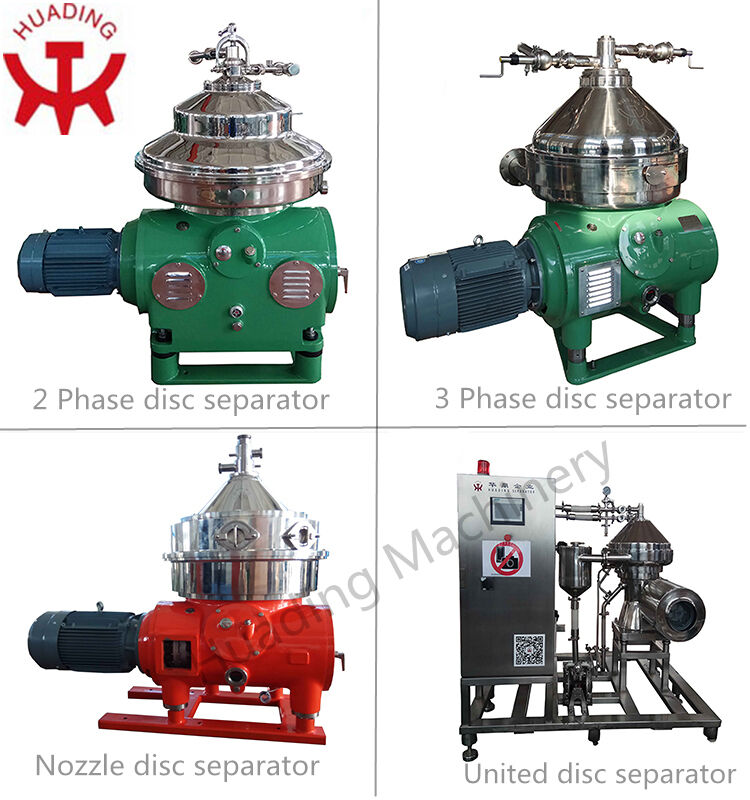

Industrial Disc Oil Separator for separating oil and suspended solids from wastewater in petroleum chemical petrochemical and natural gas plants

industrial disc oil separator wastewater

disc oil separator petroleum plants

oil separator suspended solids removal

Place of Origin:

Jiangsu, China

Brand Name:

HUADING

Certification:

CE ISO

Chat Now

Request A Quote

Product Details

Bowl Weight:

50-15000 Kg

Description:

Mechanical Separation Concentration

Material:

Stainless Steel

Application:

Food Chemicals, Fruit And Vegetable Beverages

Solids Holding Space:

2 - 50 L

Inlet Pressure:

0-0.1 Mpa

Liquid Outlet Pressure:

0.2-0.6 Mpa

Structure:

Vertic Disc Type

Highlight:

industrial disc oil separator wastewater

disc oil separator petroleum plants

oil separator suspended solids removal

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$24,000-25,000 / set

Packaging Details

Standard seaworthy package

Delivery Time

60 working days

Payment Terms

T/T,Western Union

Supply Ability

40 set / months

Related Products

86-510-87836501

huading@yxhuading.com

Chat Now

Product Description

Industrial Disc Oil Separator for separating oil and suspended solids from wastewater in petroleum chemical petrochemical and natural gas plants

What is the purpose of an oil separator?
Simply stated, an API oil/water separator is a device designed to separate oil and suspended solids from industrial wastewater sources, such as those found in oil refineries, petroleum handling facilities, petrochemical and chemical plants, natural gas processing plants, etc.

Company Advantages

60+Years Experience

40000+Installations

100+Centrifuge Models

Huading Separator is one of the market leaders in centrifugal separating technology, with over 60 years of experience developing and manufacturing disc stack centrifuges. Our equipment is trusted by well-known manufacturers worldwide in food, pharmaceutical, and industrial applications

Centrifugal Separation Technology

The disc stack separator separates solids and one or two liquid phases from each other in one single continuous process, using extremely high centrifugal forces. When the denser solids are subjected to such forces, they are forced outwards against the rotating bowl wall, while the less dense liquid phases form concentric inner layers.

Technical Specifications

Dimensions	2000 × 1200 × 1800mm
Drive	gear / belt
Bowl speed	4000 - 10000 rpm
Centrifugal force	> 10,000 g
Bowl volume	8 - 300 L
Bowl weight	50-15000 Kg
Solids holding space	2 - 50 L
Inlet pressure	0-0.1 Mpa
Liquid outlet pressure	0.2-0.6 Mpa
Starting time	5 - 30 mins
Stopping time (no brakes)	> 40 mins

Process Components

1 Inlet tube

2 Central bore

3 Distributor

4 Distributor bore

5 Rising channels

6 Light phase centripetal pump

7 Heavy phase centripetal pump

2-Phase Separation Process

Separation takes place inside a rotating bowl. The feed is introduced to the rotating centrifuge bowl from the top via a stationary inlet pipe, and is accelerated in the distributor before entering the disc stack. The separation of liquid-solids takes place between the discs, with the liquid phase moving through the disc stack to the centre and pumped out via built-in paring disc.

3-Phase Separation Process

The suspension to be separated is fed into the separator bowl from the top through a feeding pipe and enters the disc stack. The heavy phase and heavy sludge are forced towards the periphery of the bowl, while the light phase flows towards the centre. Solids collects in the sludge space and is discharged intermittently and automatically.
