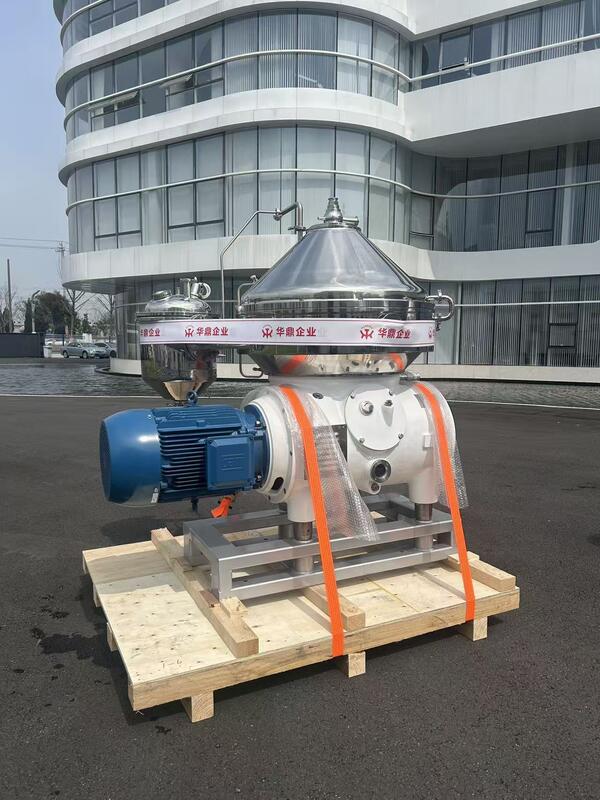

Marine Lube Oil Purification Disc Stack Separator Diesel Engine Oil Centrifuge 3-8m³/h Self-Cleaning System

Name: Marine Lube Oil Purification Disc Stack Separator Diesel Engine Oil Centrifuge 3-8m³/h Self-Cleaning System
Brand: YIXING HUADING MACHINERY CO.,LTD.
SKU: DSS-400M
Price: 31.00 USD
Availability: InStock

Product Details

Place of Origin: Liaoning, China

Brand Name: WNRLN

Certification: ISO 9001:2015, CE, CCS Type Approval

Model Number: DSS-400M

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD 22,000 - 40,000 / Set

Packaging Details: Seaworthy export wooden crate with VCI anti-corrosion wrap, desiccant, and shock-proof cushioning

Delivery Time: 35-45 working days after deposit

Payment Terms: T/T,L/C

Supply Ability: 30 Sets per Month

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    Marine lube oil separator self-cleaning system, Diesel engine oil centrifuge 3-8m³/h, Disc stack separator marine lube purification


Bowl Diameter:	400mm	Bowl Speed:	6800 RPM
Capacity:	3-8 M³/h	Motor Power:	18.5 KW
Discharge Method:	Automatic Self-Cleaning	Separation Type:	Three-Phase Oil/Water/Solids
Motor Protection:	IP55	Classification Approval:	CCS, DNV, BV

Bowl Diameter:	400mm
Bowl Speed:	6800 RPM
Capacity:	3-8 M³/h
Motor Power:	18.5 KW
Discharge Method:	Automatic Self-Cleaning
Separation Type:	Three-Phase Oil/Water/Solids
Motor Protection:	IP55
Classification Approval:	CCS, DNV, BV

Marine Lube Oil Purification Disc Stack Separator Diesel Engine Oil Centrifuge 3-8m³/h Self-Cleaning System

Marine Lube Oil Purification Disc Stack Separator for Shipboard Applications

This marine-grade disc stack separator is specifically engineered for lube oil purification on vessels ranging from coastal freighters to ocean-going tankers. The self-cleaning bowl design enables continuous operation while removing water, sludge, and abrasive particles from diesel engine lubricating oil. Built with marine-environment corrosion protection including special anti-corrosion coatings and stainless steel critical components, this centrifuge meets the stringent reliability requirements of maritime classification societies including CCS, DNV, and BV.

Key Features

Self-Cleaning Bowl System: Automatic partial discharge at programmable intervals removes accumulated sludge without stopping the separation process, enabling 24/7 unmanned engine room operation
Marine Environment Protection: Special anti-corrosion coating on external surfaces, SS316 critical components, and IP55-rated motor and control panel for high-humidity, salt-spray conditions
Three-Phase Separation: Simultaneously removes both water and solid contaminants from lube oil in a single pass, achieving water content below 0.1% and particulate removal down to 3μm
Vibration Monitoring: Built-in accelerometer with automatic shutdown protection and remote alarm output to engine room monitoring system
Compact Footprint: Space-optimized design with integrated oil feed pump and control panel, requiring minimal engine room floor space

Technical Specifications

Parameter	Value
Bowl Diameter	400mm
Bowl Speed	6800 RPM
Capacity	3-8 m³/h (depending on oil viscosity)
Motor Power	18.5 kW
Discharge Method	Automatic Self-Cleaning Partial Discharge
Separation Type	Three-Phase (Oil/Water/Solids)
Water Removal Efficiency	≤ 0.1% residual water
Motor Protection	IP55
Classification Societies	CCS, DNV, BV (upon request)

Applications

Main engine lube oil purification (MAN, Wartsila, Sulzer engines)
Auxiliary diesel generator lube oil treatment
Stern tube oil conditioning
Hydraulic oil purification on offshore platforms
Bilge water pre-treatment
