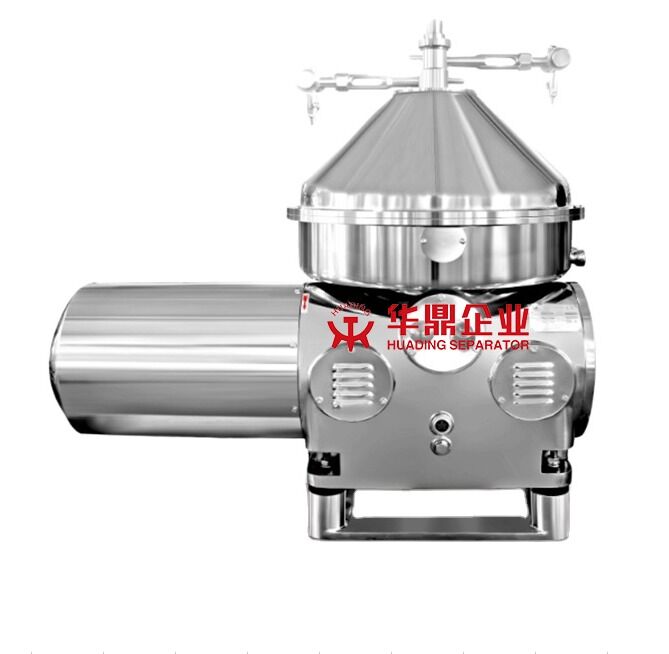

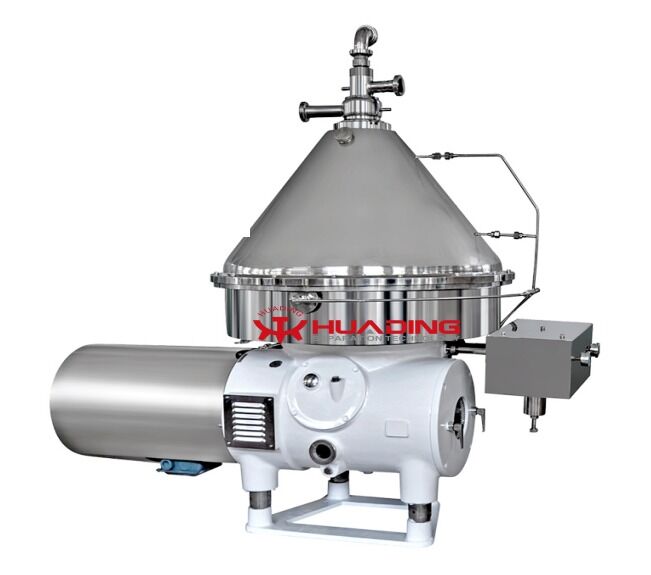

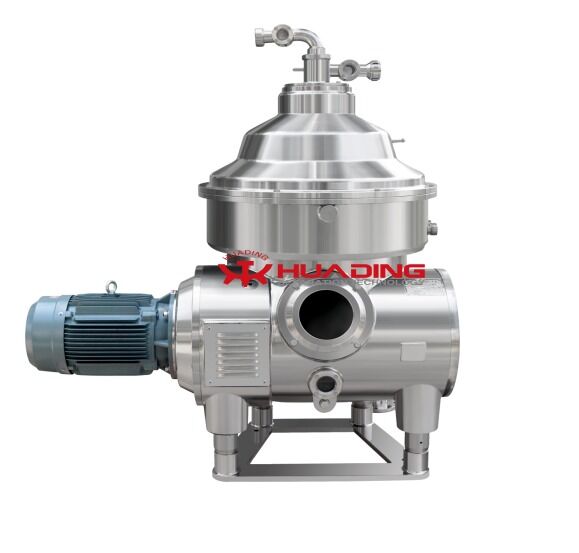

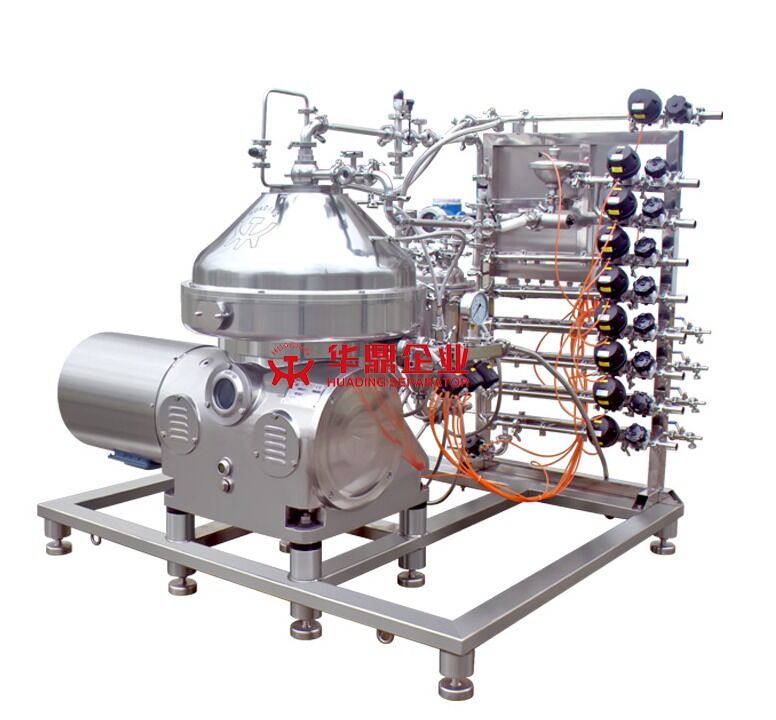

Factory Direct Selling Chlorella Microalgae Centrifuge with Price

Product Details

Place of Origin: Jiangsu, China

Brand Name: HUADING

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $25,000 / set

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            chlorella microalgae centrifuge separator, disc stack separator for microalgae, factory direct chlorella centrifuge


Product Type:	Separation Machine	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	Bowl
Voltage:	220 - 480	Power(w):	4 - 300
Dimension(lwh):	100015001800	Warranty:	1 Year
Key Selling Points:	Competitive Price	Bowl Material:	EN 1.4418, 1.4462, 1.4410
PLC:	SIEMENS	HMI:	SIEMENS
Frequency Inverter:	ABB / SIEMENS	Product Keywords:	Chlorella Microalgae Tubular Centrifuge
Type:	Centrifuge	Condition:	New
Warranty Of Core Components:	5 Year	Applicable Industries:	Construction Works , Energy & Mining, Farms, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Machinery Repair Shops, Manufacturing Plant, Other
Showroom Location:	Canada, Germany, United Kingdom, United States	Marketing Type:	New Product 2024
Weight:	1200

Product Type:	Separation Machine
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	Bowl
Voltage:	220 - 480
Power(w):	4 - 300
Dimension(lwh):	100015001800
Warranty:	1 Year
Key Selling Points:	Competitive Price
Bowl Material:	EN 1.4418, 1.4462, 1.4410
PLC:	SIEMENS
HMI:	SIEMENS
Frequency Inverter:	ABB / SIEMENS
Product Keywords:	Chlorella Microalgae Tubular Centrifuge
Type:	Centrifuge
Condition:	New
Warranty Of Core Components:	5 Year
Applicable Industries:	Construction Works , Energy & Mining, Farms, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Machinery Repair Shops, Manufacturing Plant, Other
Showroom Location:	Canada, Germany, United Kingdom, United States
Marketing Type:	New Product 2024
Weight:	1200

Factory Direct Selling Chlorella Microalgae Centrifuge with Price

Factory Direct Selling Chlorella Microalgae Centrifuge

High performance disc separator from Chinese leading manufacturer since 1954

Technical Specifications

Component	Specification
Bowl material	EN 1.4418, 1.4462, 1.4410
PLC	SIEMENS
HMI	SIEMENS
Frequency inverter	ABB / SIEMENS
Bearing	SKF

Quality Standards & Certifications

ISO9001-2000 Quality Management System
JB/T502-2004 Standards Compliance
One Year Warranty
Life-long Service Support
2006/42/EC (Machinery Directive)
2014/35/EU (Low Voltage Directive)
2014/30/EU (Electromagnetic Compatibility)

Centrifugal Separation Technology

The disc stack separator separates solids and one or two liquid phases from each other in one single continuous process, using extremely high centrifugal forces. When the denser solids are subjected to such forces, they are forced outwards against the rotating bowl wall, while the less dense liquid phases form concentric inner layers. The area where these two different liquid phases meet is called the interface position. This can be easily varied to ensure that separation takes place with maximum efficiency. Inserting special plates (the "disc stack") provides additional surface settling area, which dramatically speeds up the separation process. The particular configuration, shape and design of these plates enable continuous separation of a wide range of different solids from either one or two liquids. The concentrated solids phase formed by the particles can be removed continuously, intermittently or manually, depending on centrifuge type and the amount of solids involved.

2-Phase Separation Disc Stack Centrifuge

Process Components:
1 Feed
2 Discharge
3 Inlet tube
4 Disc stack
5 Solids holding space
6 Centripetal pump chamber
7 Centripetal pump

Separation takes place inside a rotating bowl. The feed is introduced to the rotating centrifuge bowl from the top via a stationary inlet pipe and is accelerated in the distributor before entering the disc stack. The distributor is specially designed to ensure smooth acceleration of the feed liquid. Separation of liquid-solids takes place between the discs, with the liquid phase moving through the disc stack to the center and led to the paring chamber, where it is pumped out of the bowl by a built-in paring disc. Solids are collected in the periphery and discharged intermittently into the solids collecting cover. Solids discharge is achieved by a hydraulic system that at pre-set intervals forces the sliding piston to drop down, opening the solids ports at the bowl periphery.

3-Phase Separation Disc Stack Centrifuge

Process Components:
1 Inlet tube
2 Central bore
3 Distributor
4 Distributor bore
5 Rising channels
6 Light phase centripetal pump
7 Heavy phase centripetal pump

The suspension to be separated is fed into the separator bowl from the top through a feeding pipe and enters the disc stack. The heavy phase and heavy sludge are forced towards the periphery of the bowl, while the light phase flows towards the center of the bowl, from where it is pumped out for further processing. The heavy phase is led over a top disc into a chamber where a paring device pumps it out of the separator. Solids collect in the sludge space and are discharged intermittently and automatically. The discharge is achieved by a hydraulic system that at preset intervals forces the sliding piston to drop down, opening the solids ports at the bowl periphery. The solids are collected in the frame and leave the centrifuge via a cyclone.

Self-cleaning disc stack centrifuge separators are typically divided into two types: purifiers for separating solids and two liquid phases in one continuous process, and clarifiers for separating solids and one liquid phase.

Manufacturing Process

Certifications

All our products pass rigorous inspection standards including CE and ISO certification with 100% quality assurance.

Why Choose Huading Separator

Huading Separator is one of the market leaders in centrifugal separating technology. The company has been developing and manufacturing centrifugal separation equipment for more than 60 years.

60+

Years Experience in developing and manufacturing disc stack centrifuges

40,000+

Centrifuges installed in more than 50 countries since 1954

100+

Centrifuge models to satisfy customer demands across various industries

Global

References from well-known food and pharmaceutical manufacturers worldwide
