3000RPM Tubular Centrifuge 1600MM 3kw Tubular Bowl

3000rpm tubular centrifuge

tubular centrifuge 1600mm

3kw tubular bowl

Place of Origin:

Jiangsu, China

Brand Name:

HUADING

Chat Now

Request A Quote

Product Details

Product Type:

Liquid Separation

Voltage:

Customized

Power(w):

3kw

Dimension(l*w*h):

600*900*1600

Warranty:

1 Year

Key Selling Points:

Low Maintenance Cost

Capacity:

501-1000l/h

Weight (KG):

Setting Speed:

3000RPM

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Operation:

Manual

Material:

Stainless Steel

Highlight:

3000rpm tubular centrifuge

tubular centrifuge 1600mm

3kw tubular bowl

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$6,000-8,000 / set

Related Products

86-510-87836501

huading@yxhuading.com

Chat Now

Product Description

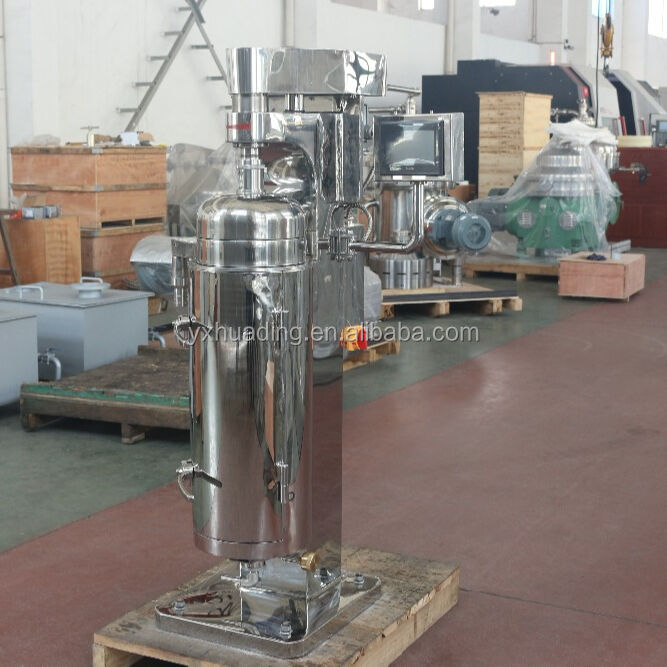

3000RPM Tubular Centrifuge 1600MM 3kw Tubular Bowl

Tubular centrifuge is a high-speed vertical centrifuge designed for low solid content separation applications. Available in two specialized types: GF (separation) and GQ (clarification).

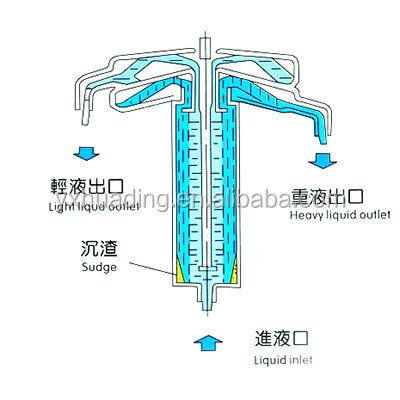

GF Separation Type

Primarily used for separating difficult emulsions in the separation industry. Particularly effective for liquid-liquid separation with minimal gravity differential between phases, and for liquid-liquid-solid separation containing minimal impurities.

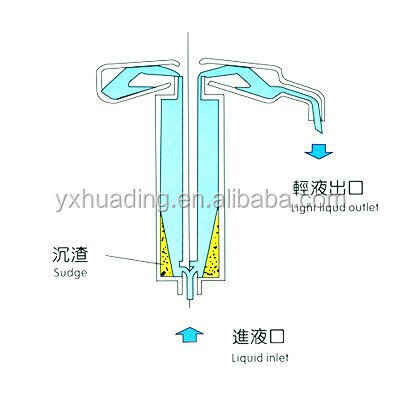

GQ Clarification Type

Specifically designed for separating challenging suspensions. Ideal for solid-liquid separation with low concentration, fine particles, and minimal gravity differential between phases.

Technical Specifications

Item Model	GF/GQ75	GF/GQ105	GF/GQ125	GF/GQ150
Bowl Diameter (mm)	75	105	125	150
Height (mm)	430	730	730	730
Volume (L)	2	6	8	11
Speed (r/min)	20000	18000	16000	14000
Separation Ratio (G)	16700	15700	15600	15000
Working Pressure (Mpa)	≥0.05
Passing Capacity (L/h)	500	1000	1500	2000
Motor (KW)	1.5	3	4	4
Dimension (L×W×H)	660×390×1200	700×450×1600	900×550×1600	900×580×1670
Weight (KG)	250	500	535	700

Main Structure Components

Bowl parts (5)
Frame parts (16)
Head parts (11)
Pinch roller parts (13)
Sliding bearing parts (3)
Driving body parts (14)
